Air Bag Control Module

Module-Occupant Classification C1 (Except Export):



Module-Occupant Classification C2 (Except Export):

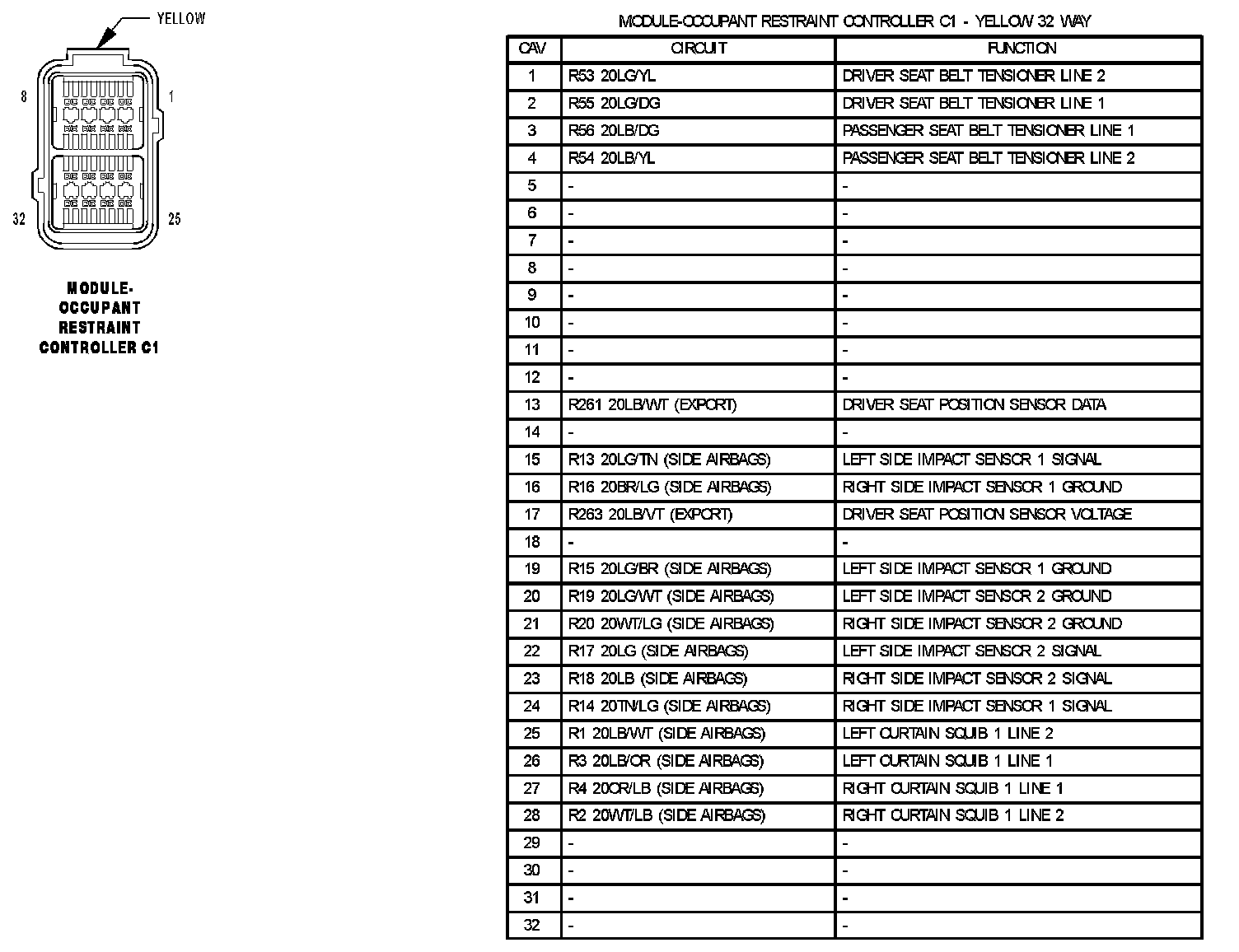

Module-Occupant Restraint Controller C1:

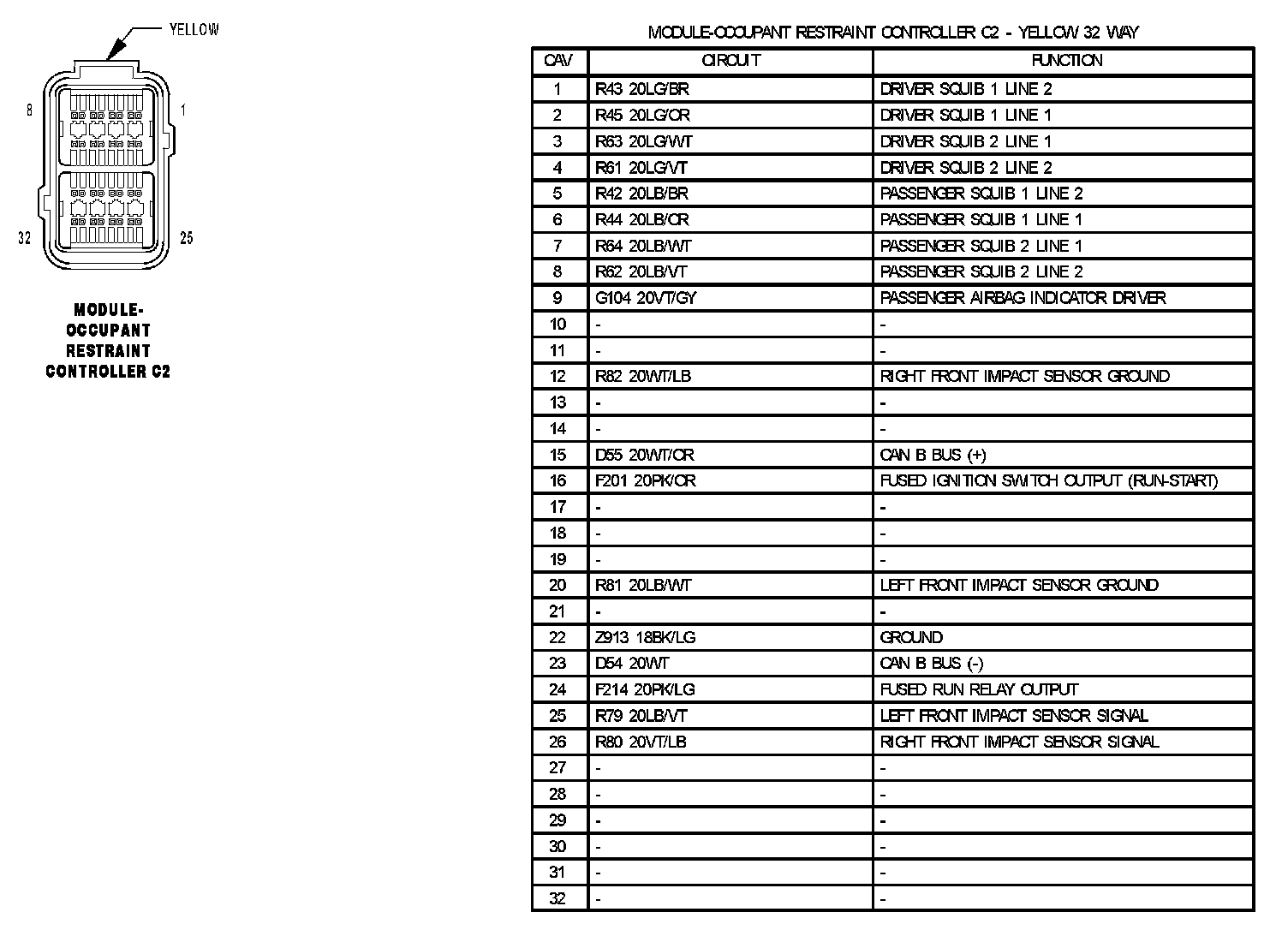

Module-Occupant Restraint Controller C2:
