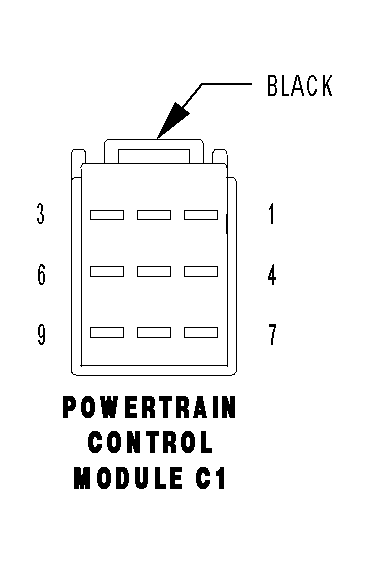

Powertrain Control Module Connector End View (C1)
POWERTRAIN CONTROL MODULE C1 - BLACK 9 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | 18BK/PK (SRT) | SUPERCHARGER CLUTCH CONTROL |
| 2 | 18BK/WT | COIL ON PLUG DRIVER NO. 1 |
| 3 | 18BL | THROTTLE CONTROL MOTOR 1 |
| 4 | 18GY/WT | COIL ON PLUG DRIVER NO. 6 |
| 5 | 18BL/WT | COIL ON PLUG DRIVER NO. 4 |
| 6 | 18BK | THROTTLE CONTROL MOTOR 2 |
| 7 | 18DG/WT | COIL ON PLUG DRIVER NO. 3 |
| 8 | - | - |
| 9 | 18YL/WT | COIL ON PLUG DRIVER NO. 2 |
