Exhaust System: Muffler: Installation: Notes

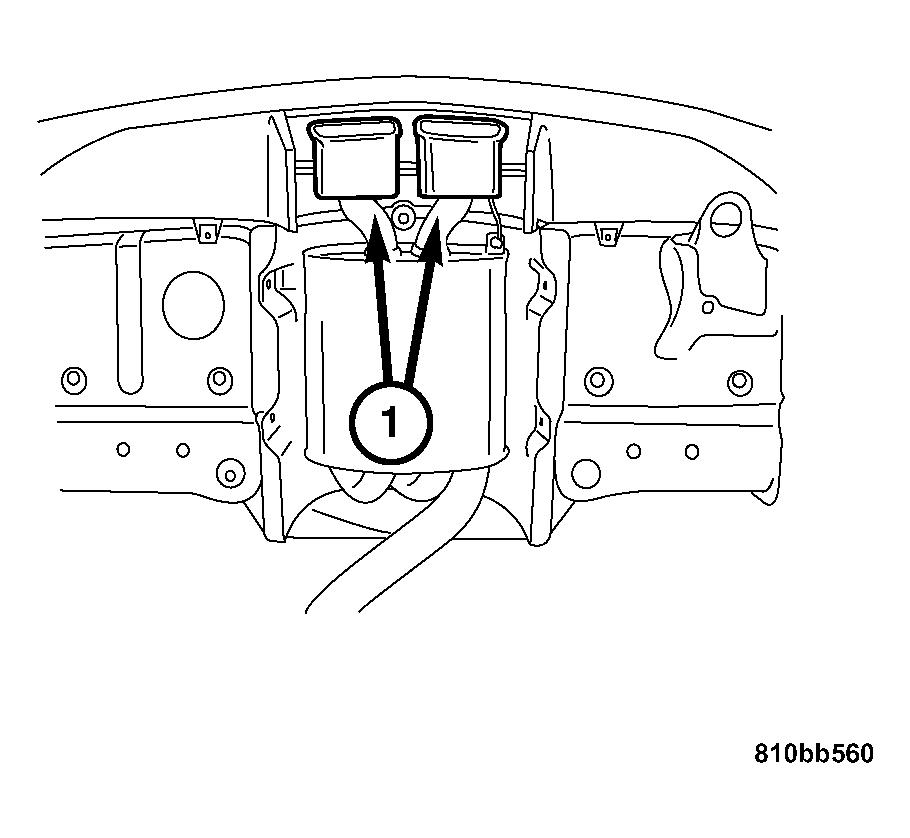

Fig 1: Locating Exhaust Hangers, Muffler & Exhaust Pipes
GC0032297Courtesy of DAIMLERCHRYSLER CORP.
  1. Position the muffler section in the rubber exhaust hangers (1).

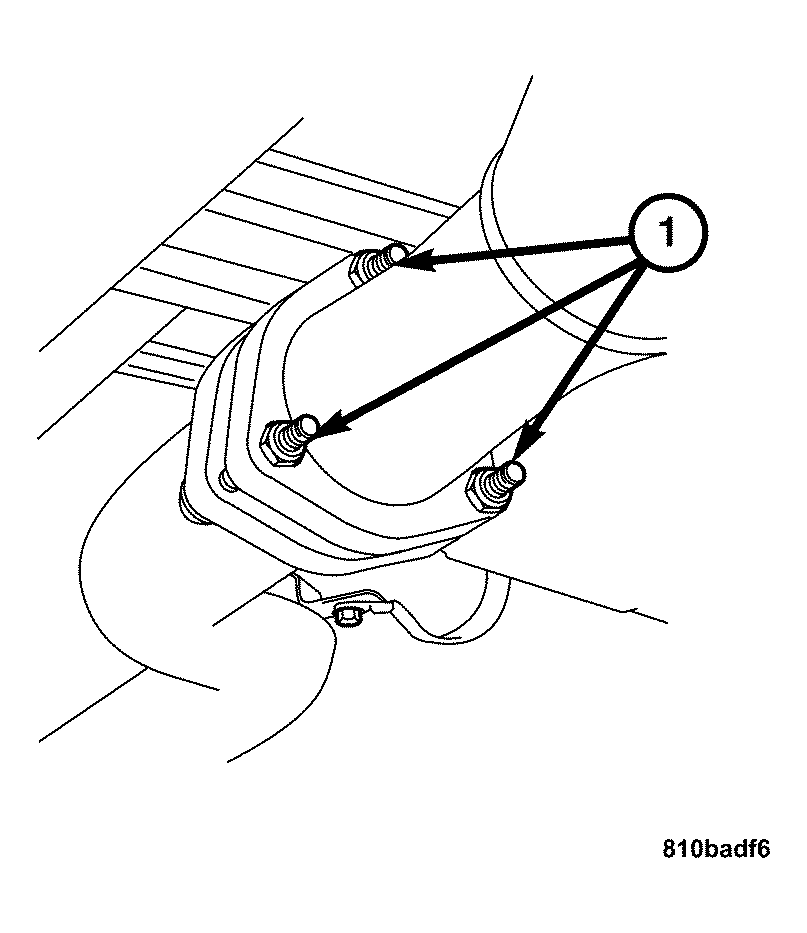

    Fig 2: Removing/Installing Bolts From Center Connection Flange
    GC0032294Courtesy of DAIMLERCHRYSLER CORP.
  2. Install the bolts in the center exhaust flange (2). Tighten the bolts to 20 N.m (15 ft. lbs.).

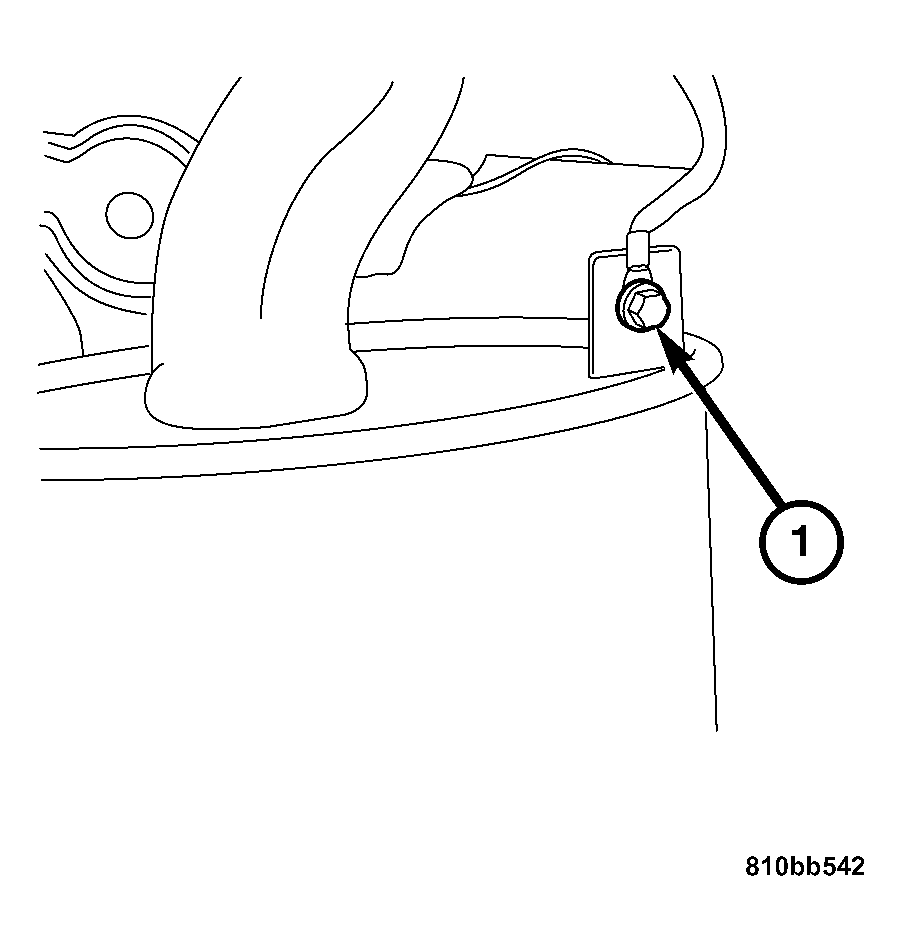

    Fig 3: Disconnecting/Connecting Ground Strap At Muffler
    GC0032295Courtesy of DAIMLERCHRYSLER CORP.
  3. Connect the ground strap (1) at the muffler and tail pipe. Tighten the ground strap bolt to 10 N.m (89 in. lbs.).
  4. Remove the support.
  5. Install the rear support bracket. (Convertible only) (Refer to FRAME & BUMPERS/FRAME/BRACKET - INSTALLATION) .
  6. Lower the vehicle.
