Support Bracket And Isolator: Installation

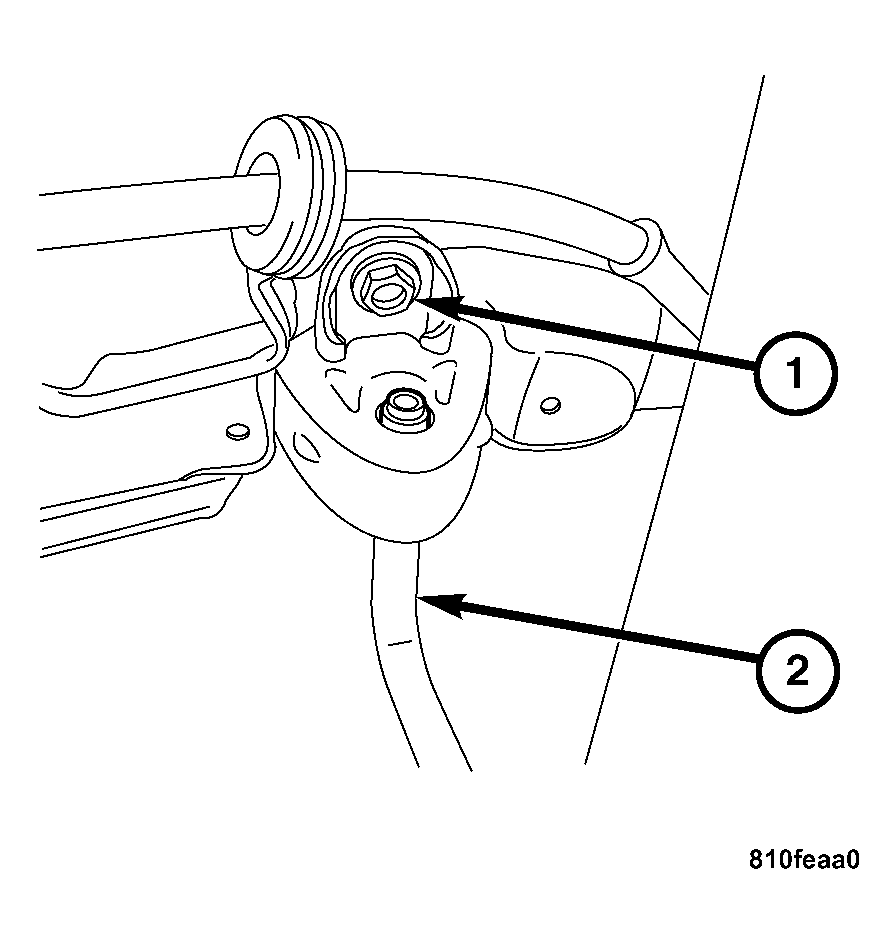

Fig 1: Removing/Installing Bracket Bolt, Bracket & Isolator From Exhaust Hanger
GC0032298Courtesy of DAIMLERCHRYSLER CORP.
  1. Position the bracket and bolt on the vehicle.
  2. Tighten the bolt to 20 N.m (15 ft. lbs.).
  3. Install the isolator and hanger.
  4. Lower the vehicle.
