Opening Dimensions

WARNING: This page is about a different car, the 2006 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.
BODY OPENING DIMENSIONS INDEX

DESCRIPTION  FIGURE
ENGINE BOX - ALL Fig 1.
WINDSHIELD OPENING - ALL Fig 2.
BODY SIDE DOOR OPENINGS - ALL Fig 3.
BODY SIDE WINDOW OPENINGS - 118 WB Fig 4.
BODY SIDE WINDOW OPENINGS - 140 WB Fig 5.
BODY SIDE WINDOW OPENINGS - 158 WB Fig 6.
REAR DOOR OPENING - ALL Fig 7.

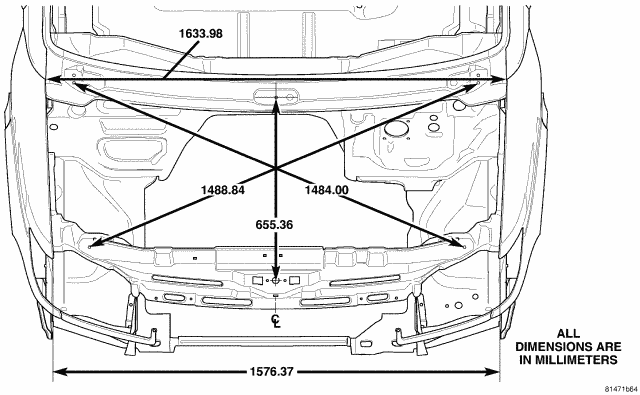

Fig 1: ENGINE BOX - ALL
GC0037371Courtesy of DAIMLERCHRYSLER CORP.

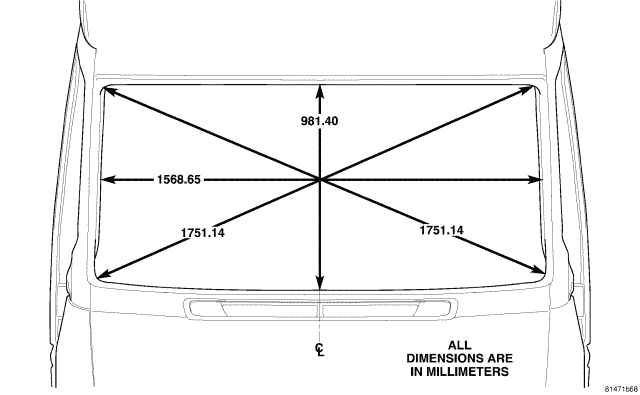

Fig 2: WINDSHIELD OPENING - ALL
GC0037372Courtesy of DAIMLERCHRYSLER CORP.

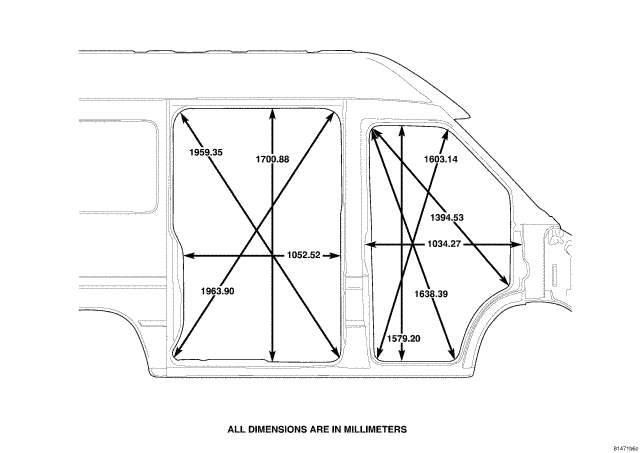

Fig 3: BODY SIDE DOOR OPENINGS - ALL
GC0037373Courtesy of DAIMLERCHRYSLER CORP.
Fig 4: BODY SIDE WINDOW OPENINGS - 118 WB
GC0037374Courtesy of DAIMLERCHRYSLER CORP.
Fig 5: BODY SIDE WINDOW OPENINGS - 140 WB
GC0037375Courtesy of DAIMLERCHRYSLER CORP.
Fig 6: BODY SIDE WINDOW OPENINGS - 158 WB
GC0037376Courtesy of DAIMLERCHRYSLER CORP.

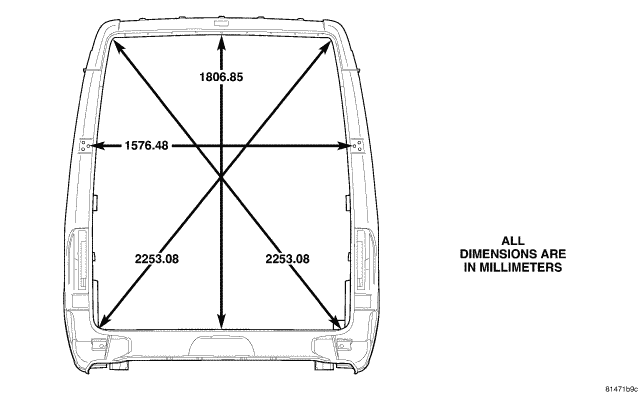

Fig 7: REAR DOOR OPENING - ALL
GC0037377Courtesy of DAIMLERCHRYSLER CORP.
