Coolant Level Sensor: Installation

WARNING: This page is about a different car, the 2006 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.

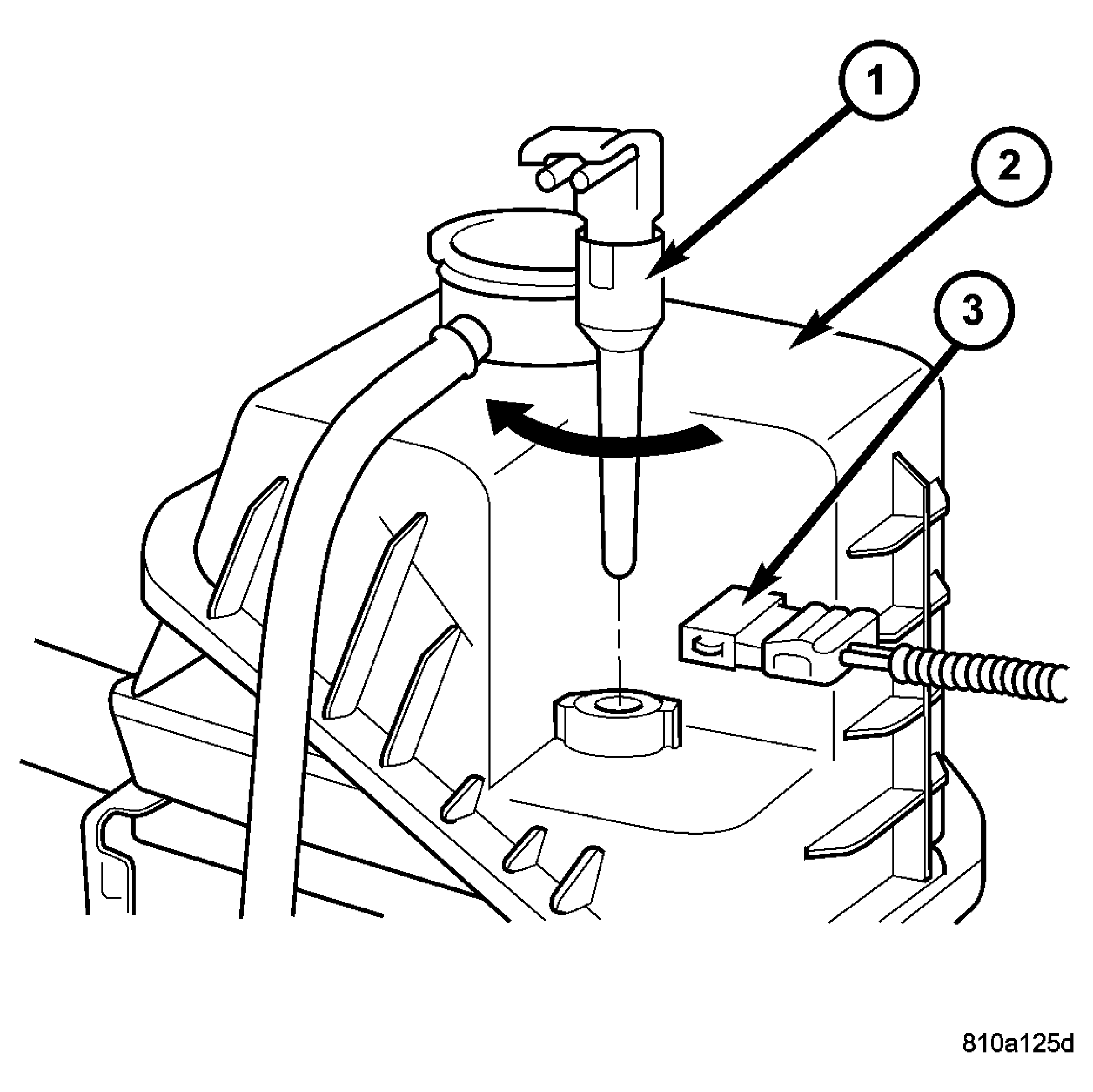

  1. Align coolant level sensor with coolant reservoir access whole, press down while turning counterclockwise 90 degrees to seat sensor. See Figure.
  2. Connect coolant level sensor electrical connector. See Figure.
  3. Refill cooling system to proper level. (Refer to COOLING/ENGINE/COOLANT - STANDARD PROCEDURE) .
  4. Inspect for leaks.
