Engine Block Heater: Installation
WARNING: This page is about a different car, the 2006 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.

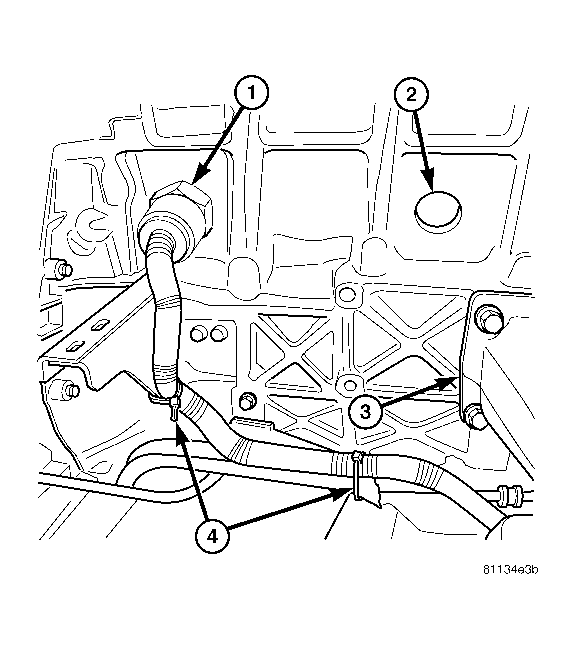

- Screw the block heater into the core hole. See Figure.
- Route the heater wiring harness away from and interference and secure with wiring tie straps.
- Refill the cooling system.
- Connect the negative battery cable.
- Start the engine and inspect for leaks.
