Engine Control Module C1 (OBD)
WARNING:
This page is about a different car, the 2006 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.

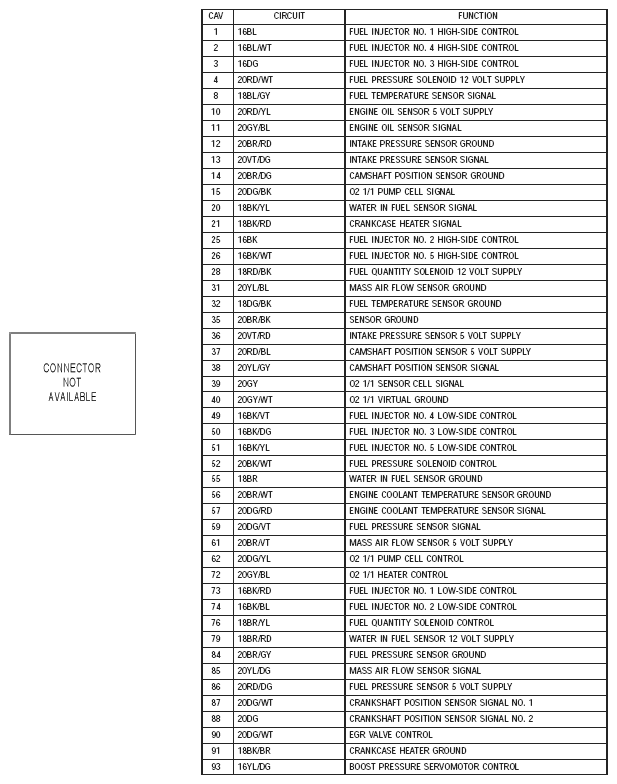

Fig 1: Identifying Engine Control Module C1 (OBD) Connector Pinouts
Courtesy of CHRYSLER
