Fuel Pressure Sensor: Installation

WARNING: This page is about a different car, the 2006 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.

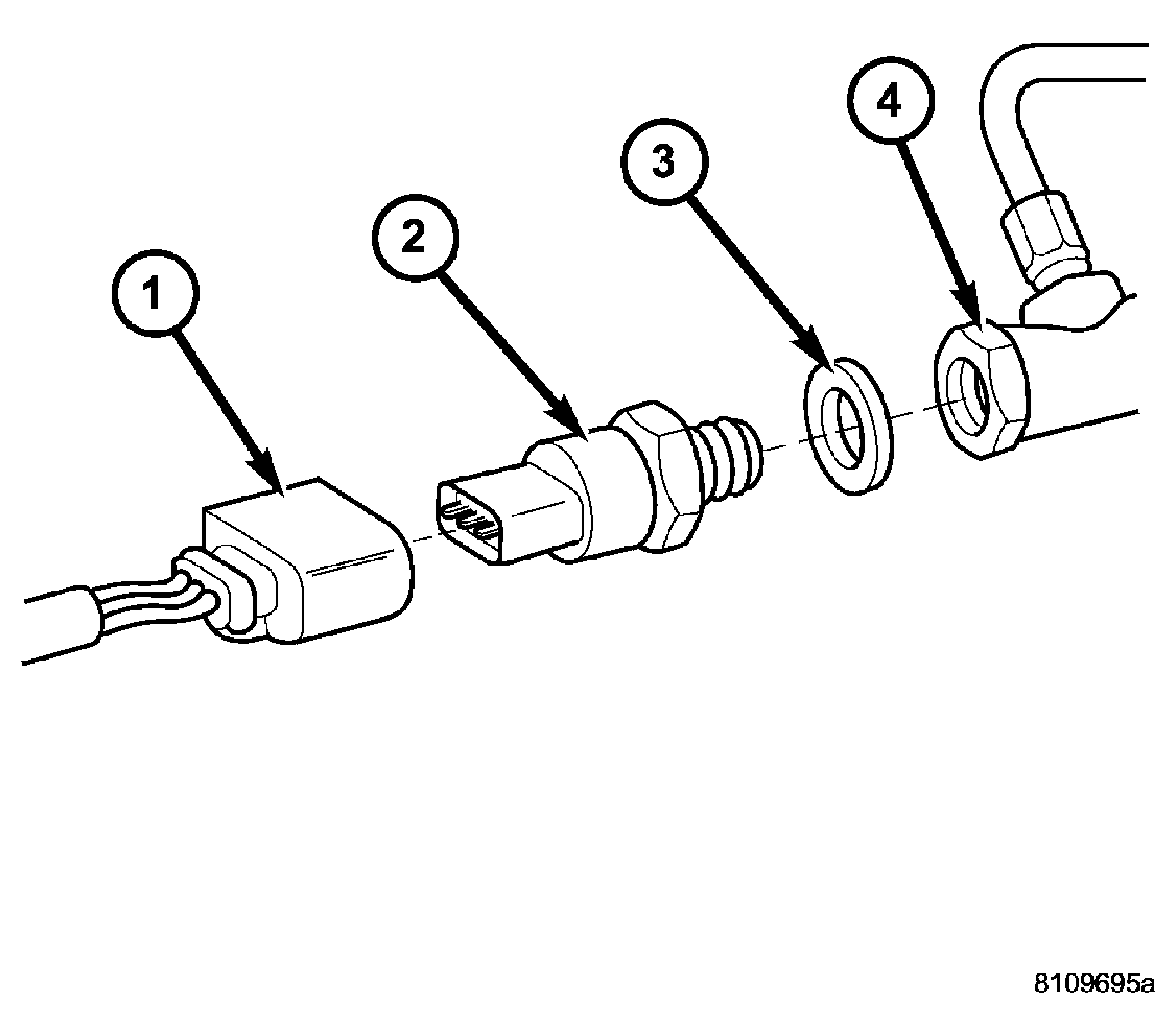

  1. (Refer to (Refer to FUEL SYSTEM - WARNING)  ) Install the sealing ring on to the sensor. See Figure.
  2. Screw the sensor in to the fuel rail. Counter-hold the threaded connection and tighten the sensor to 18 lbs. ft. (25 N.m.). See Figure.
  3. Connect the wiring harness to the sensor.
  4. Install the mixing housing.
    CAUTION: Care must be taken when installing the engine cover. Assure the proper routing of the fuel injector return fuel hose to the banjo bolt fitting in the left rear corner of the cover. Failure to do so may pinch or damage the hose causing fuel leakage or a driveability concern.
  5. Connect negative battery cable.
