Intake Air Temperature Sensor: Installation

WARNING: This page is about a different car, the 2006 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the intake air temperature sensor above the charge air pipe access hole.

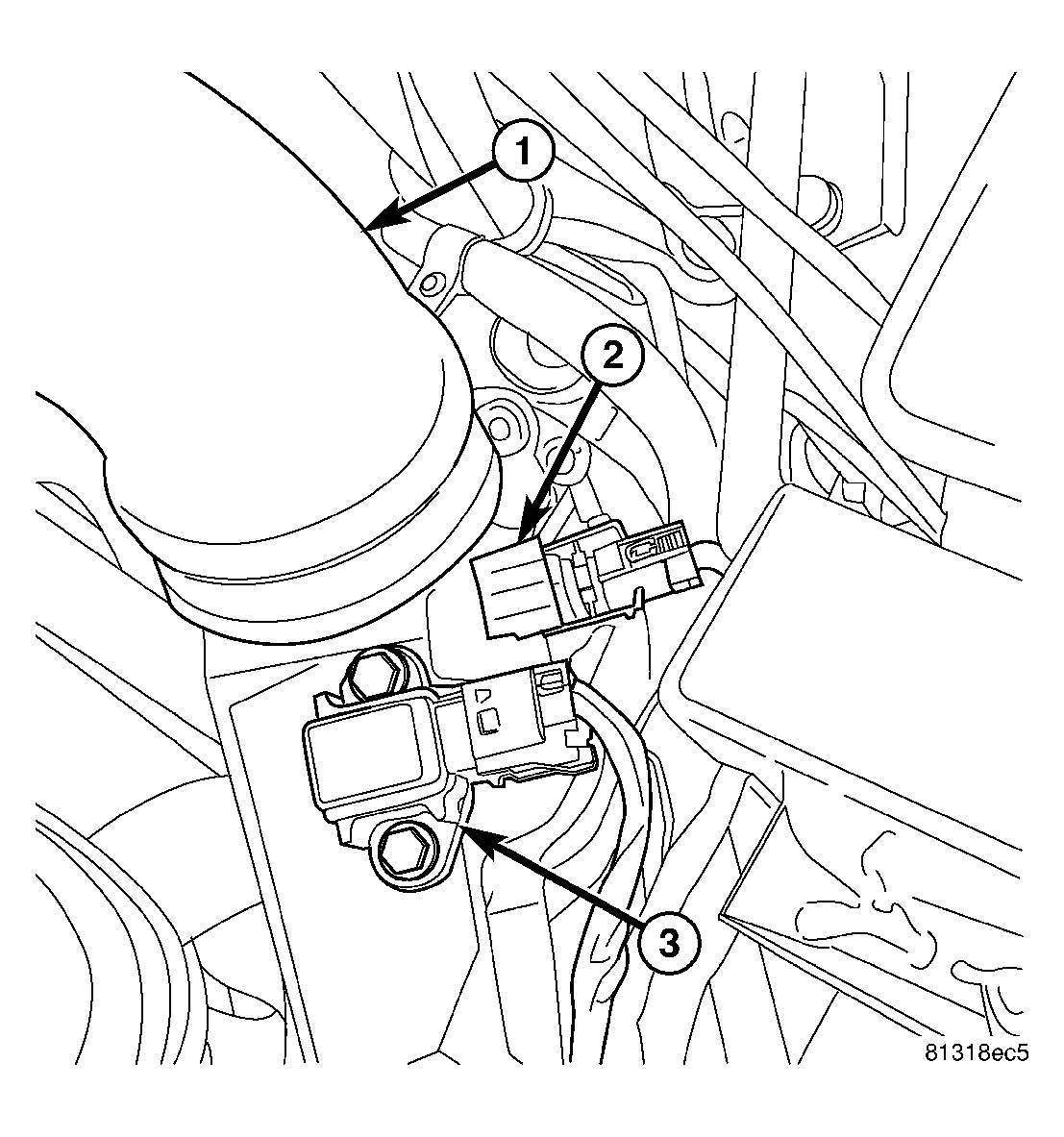

  2. Press together the sensor locking tabs, seat the sensor to the pipe and release tabs. See Figure.
  3. Connect negative battery cable.
