Mass Air Flow Sensor: Installation

WARNING: This page is about a different car, the 2006 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.

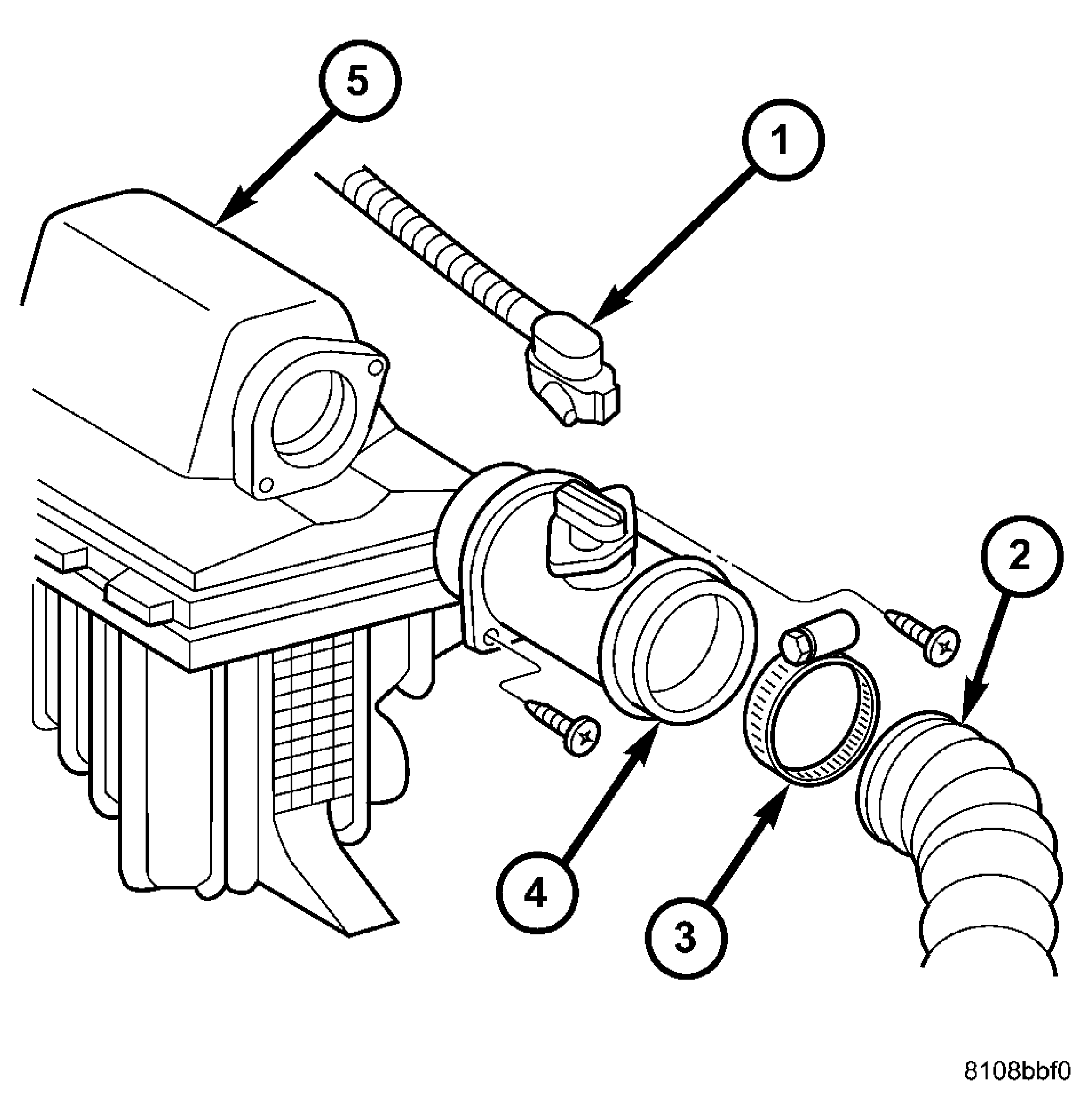

  1. Position the MAF sensor to air cleaner housing and install the retaining screws. See Figure.
  2. Connect the air intake hose to the MAF sensor and tighten clamp.
  3. connect the MAF wiring harness connector.
  4. Connect negative battery cable.
