Convertible Top Control Module

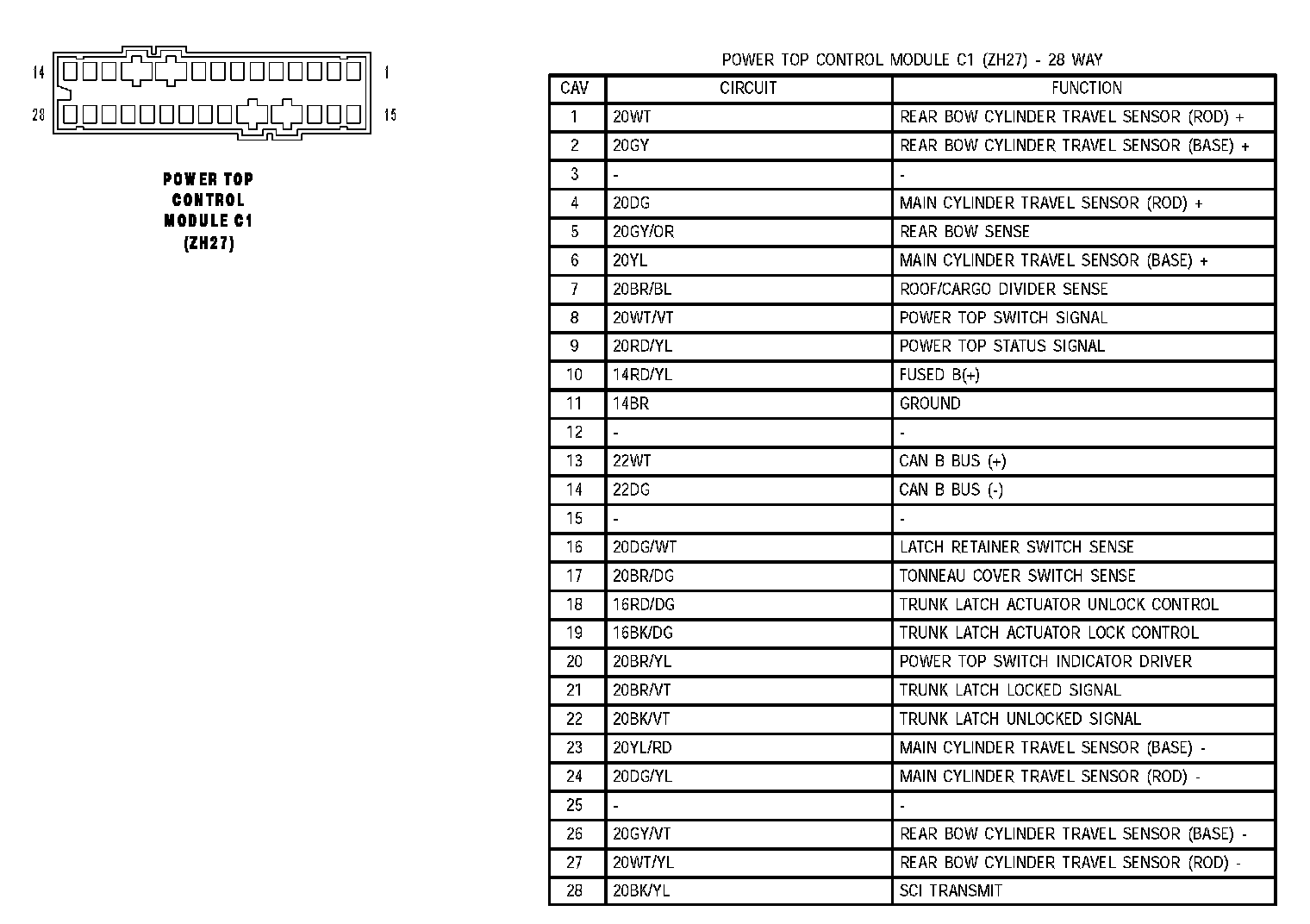

Power Top Control Module C1 (ZH27):



Power Top Control Module C2 (ZH27):
