Engine Torque Specifications

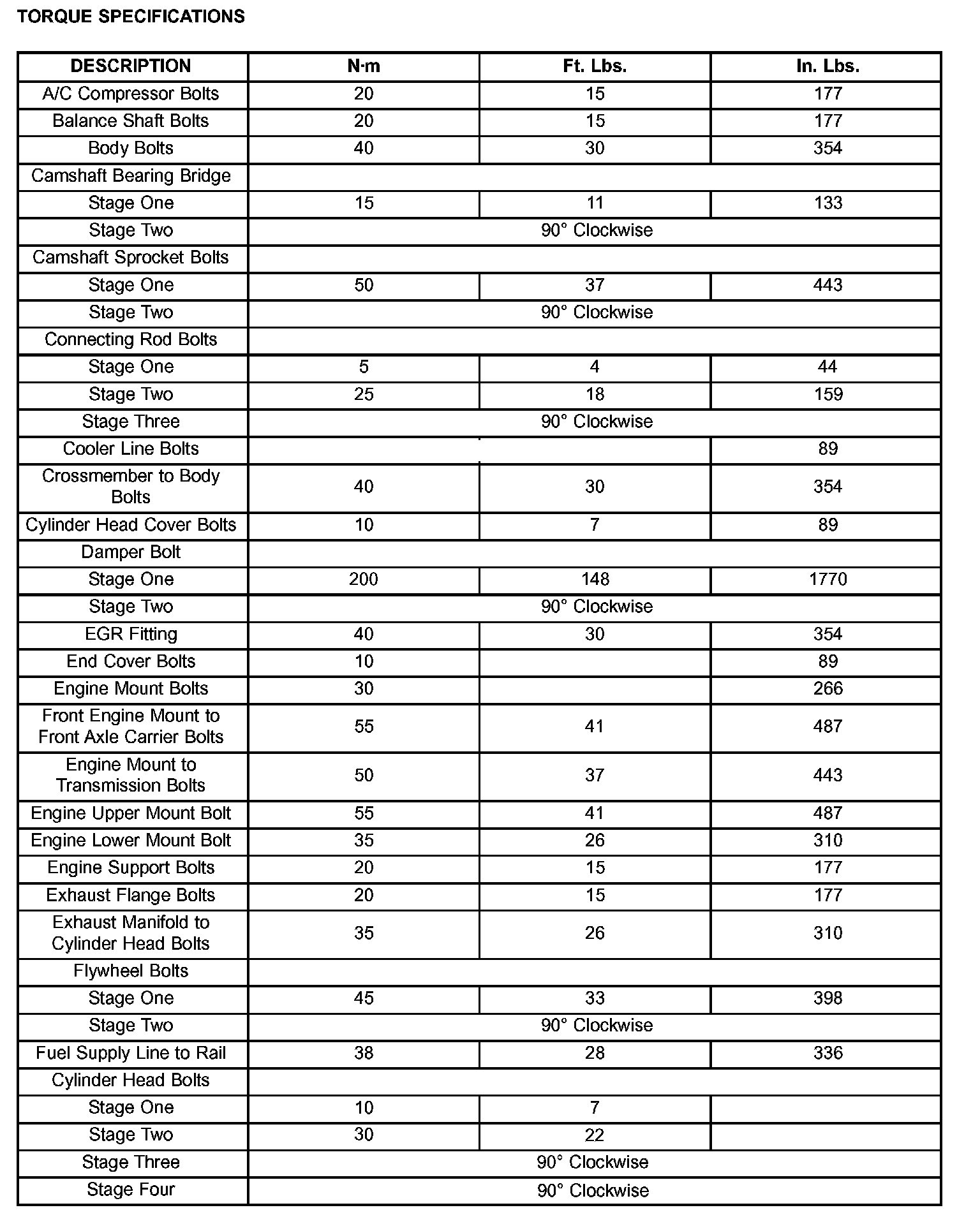

TORQUE SPECIFICATIONS:

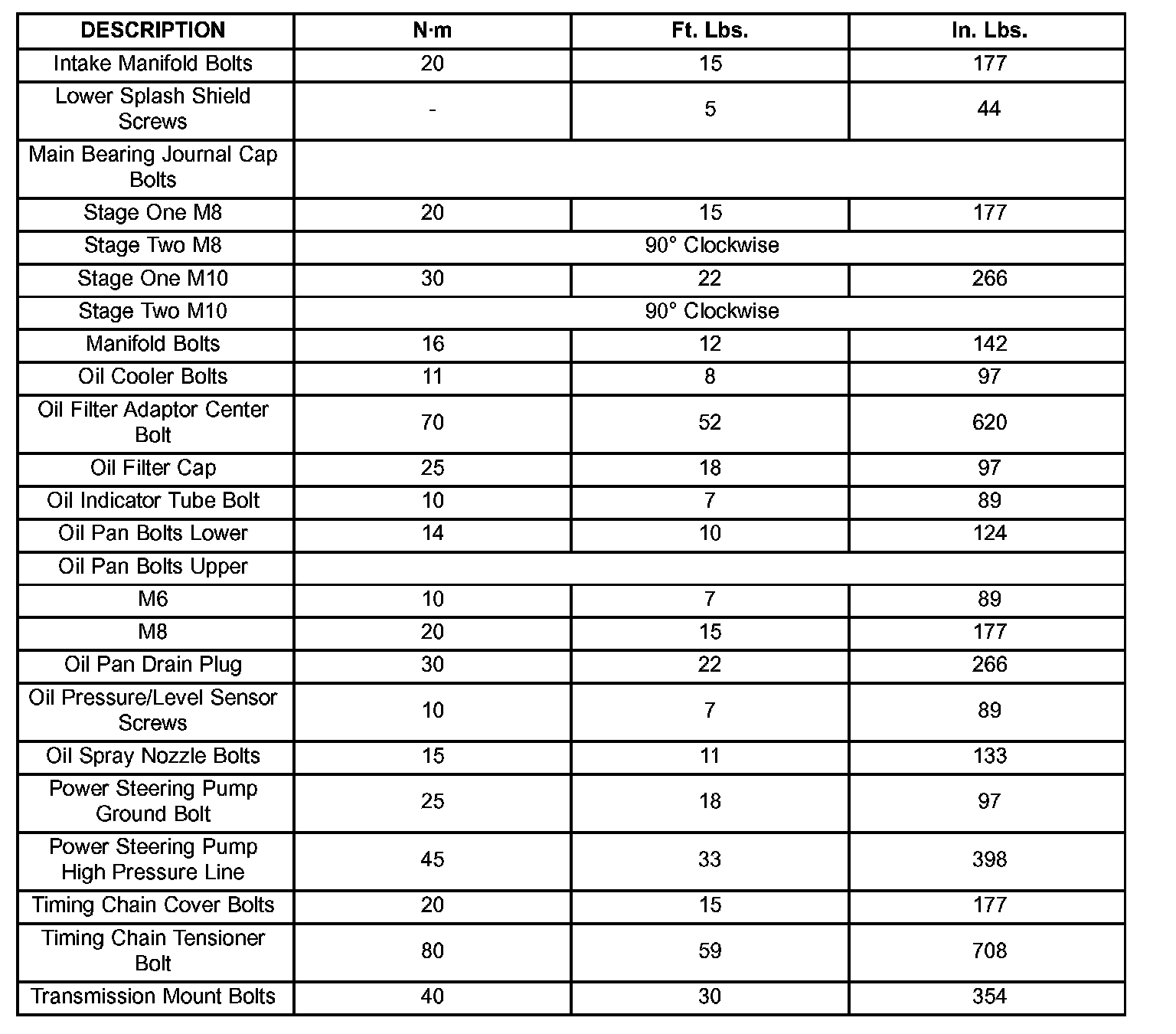

TORQUE SPECIFICATIONS:





Oil pump bolts 20 Nm (15 ft. lbs.)
Water pump bolts 35 Nm (26 ft. lbs.)
