Glow Plug: Removal

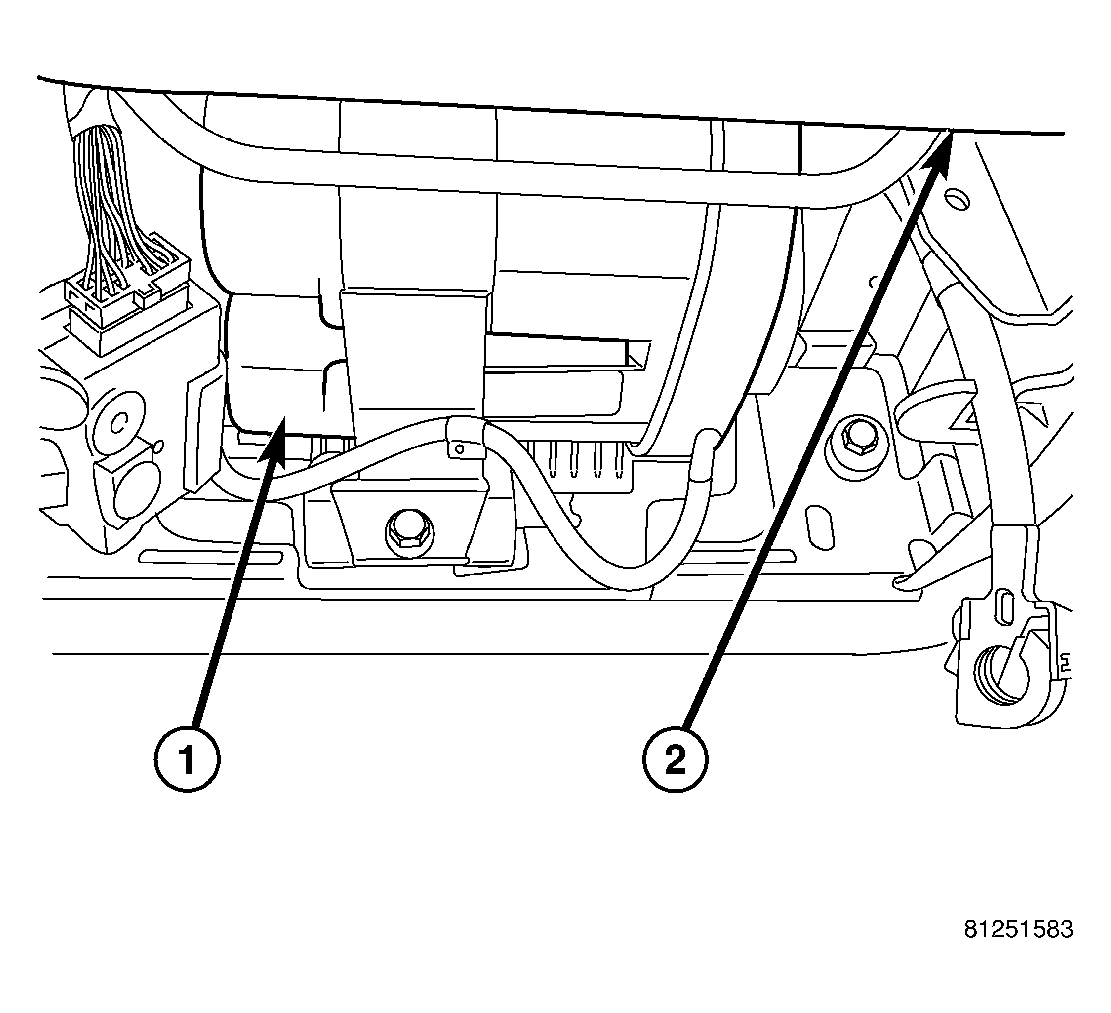

Fig 1: Location Of Battery

GC0043576

Courtesy of DAIMLERCHRYSLER CORP.

1 - BATTERY

2 - PASSENGER SEAT

Disconnect negative battery (1) cable.

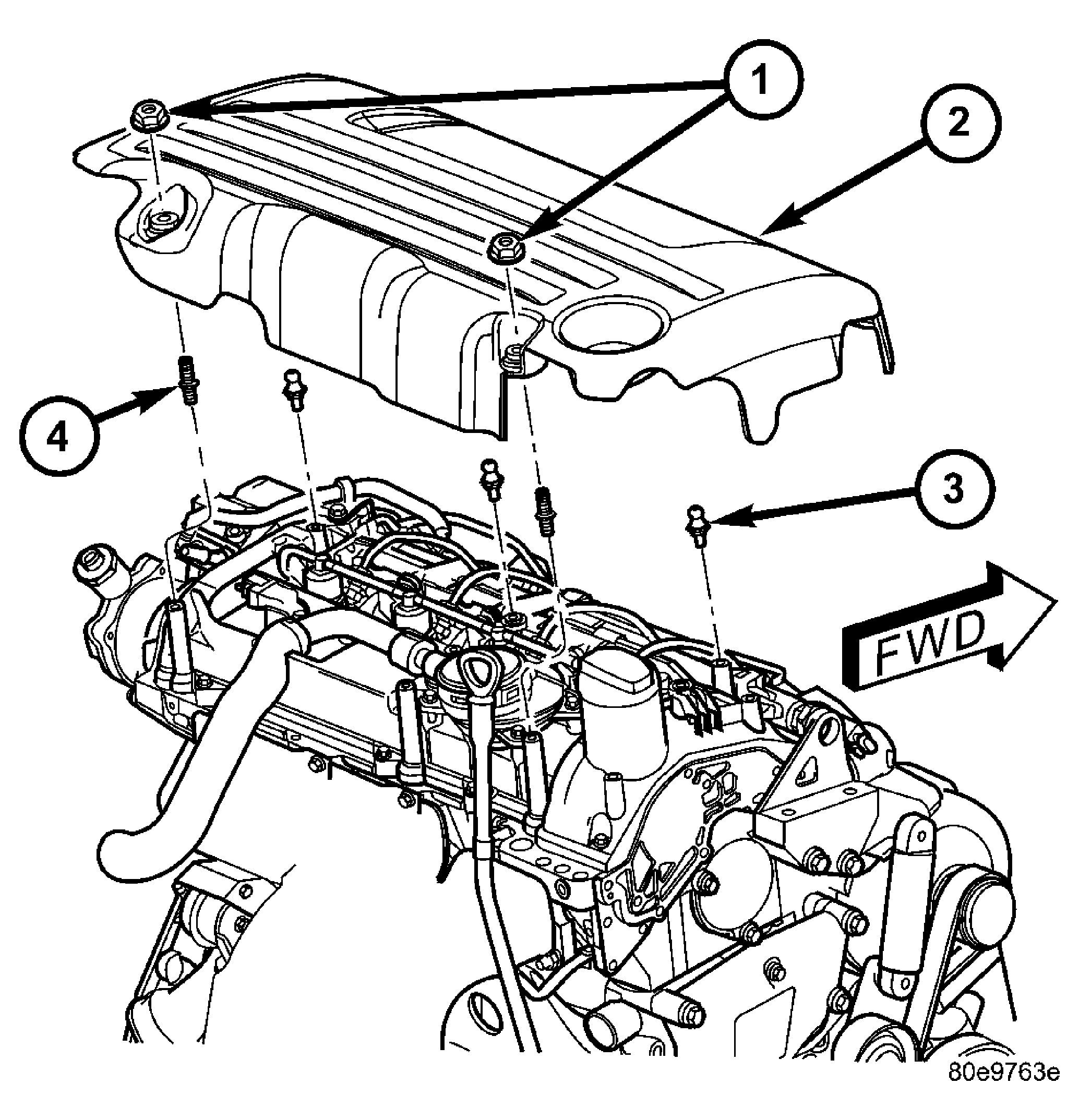

Fig 2: Engine Cover And Mounting Fasteners

GC0043577

Courtesy of DAIMLERCHRYSLER CORP.

1 - ENGINE COVER RETAINING NUTS

2 - ENGINE COVER

3 - ENGINE COVER MOUNTS

4 - ENGINE COVER MOUNTING STUDS

Remove engine cover (2).

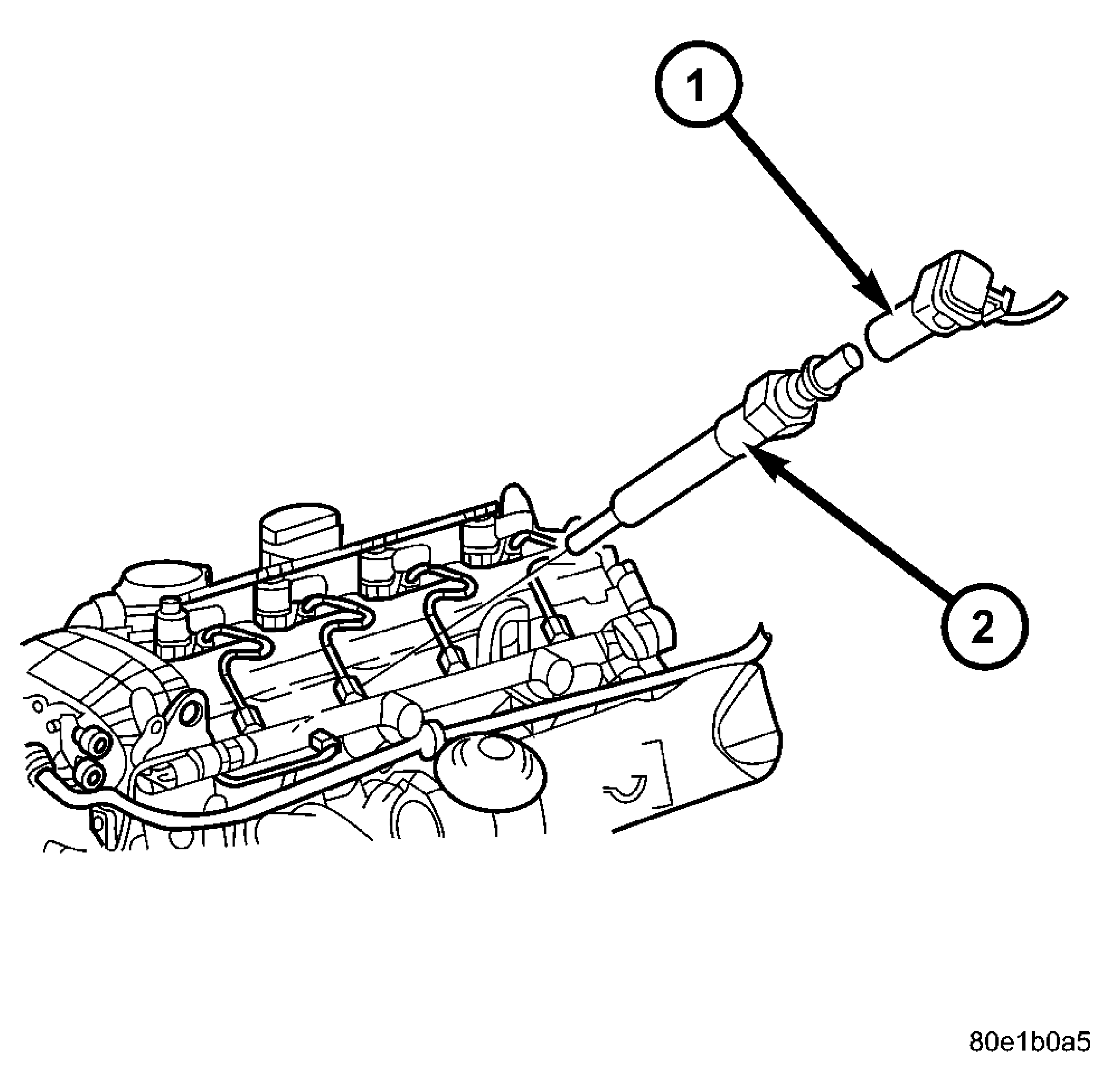

Fig 3: GLOW PLUG LOCATION - TYPICAL
Courtesy of DAIMLERCHRYSLER CORP.

1 - GLOW PLUG ELECTRICAL CONNECTOR

2 - GLOW PLUG

NOTE: Before removing glow plugs, blow off the top of the engine with compressed air.
Disconnect glow plug electrical connector (1). See Fig 3.
Remove glow plug (2) from cylinder head. See Fig 3.
