Power Window Switch: Removal: Front

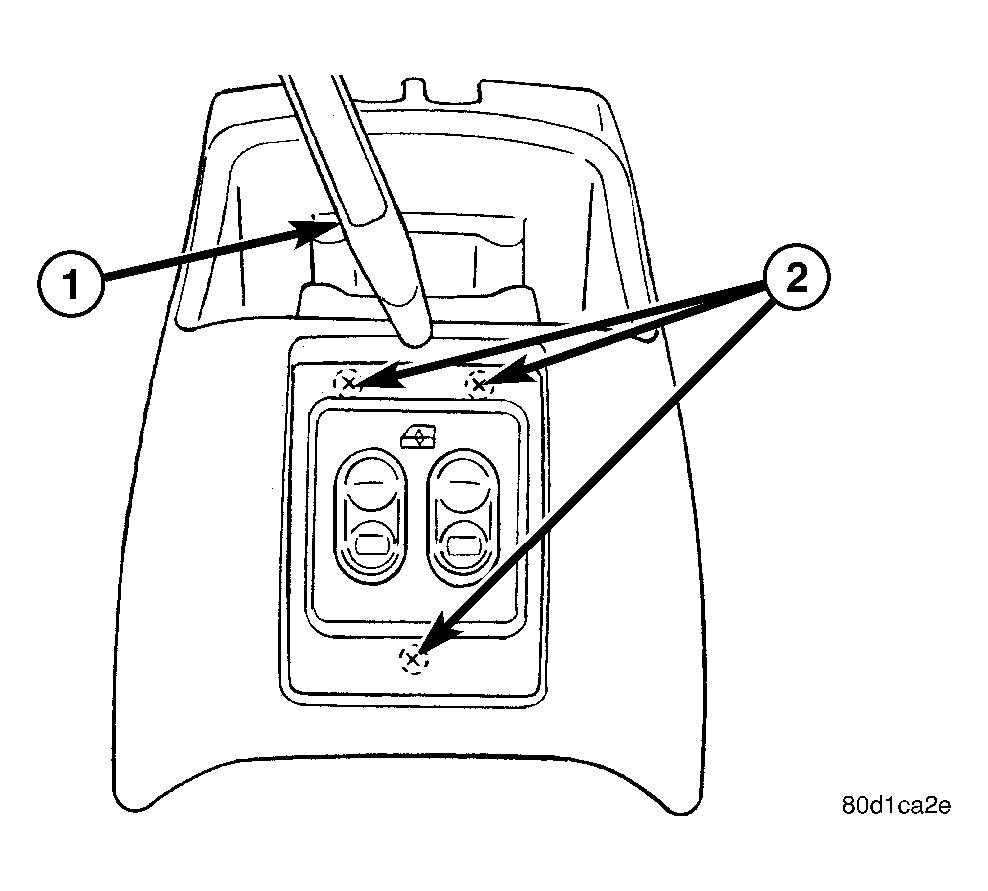

Fig 1: Window Switch Removal (Rear Shown - Front Similar)
GC0022982Courtesy of DAIMLERCHRYSLER CORP.
Fig 2: Front Window Switch
GC0022983Courtesy of DAIMLERCHRYSLER CORP.
  1. Disconnect and isolate the battery negative cable.
  2. Using a trim stick (1) (special tool #C-4755) or equivalent, gently pry at the top of the switch.
  3. Remove switch and disconnect electrical harness connector.
