Air Bag Control Module

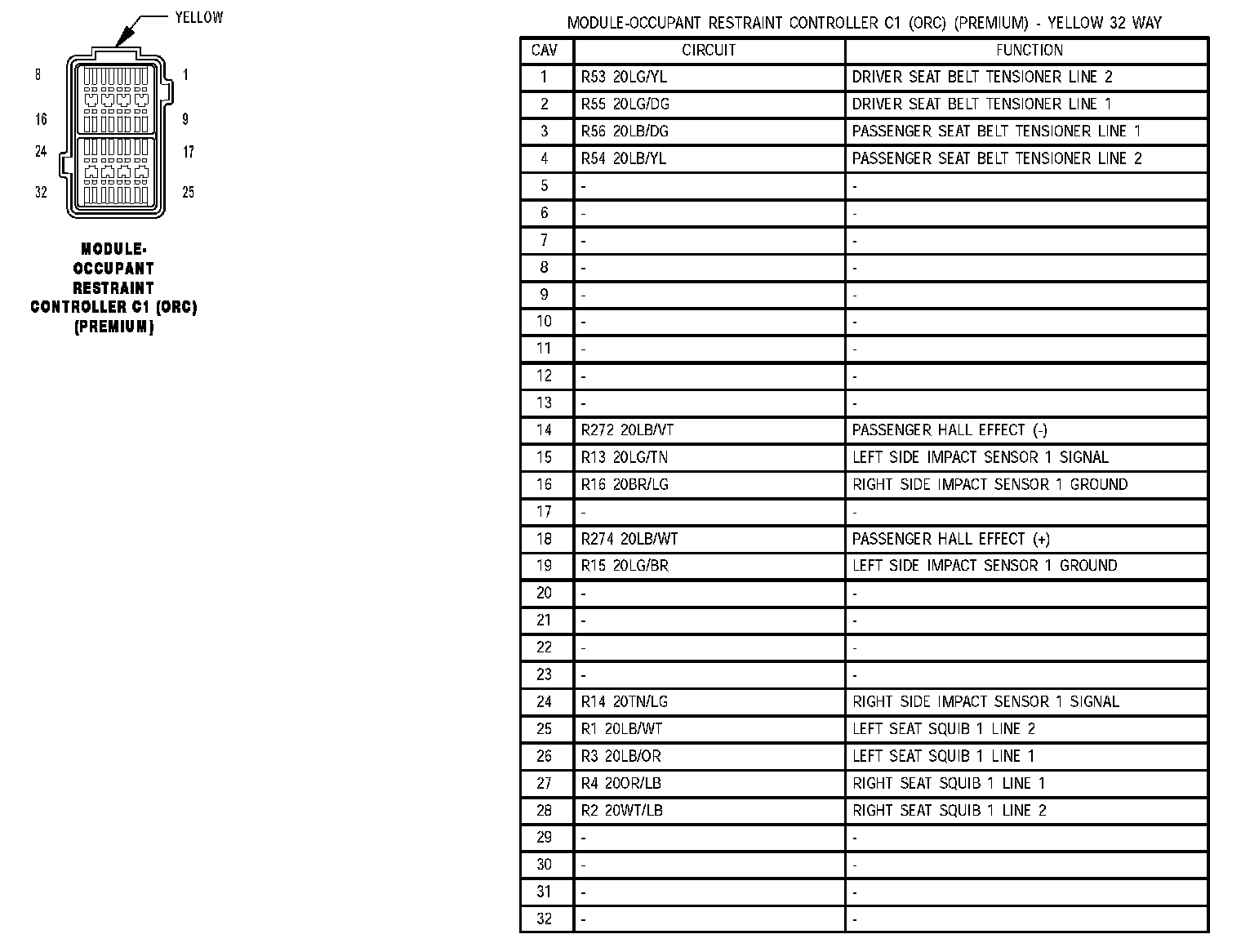

Module Occupant Restraint Controller C1 (ORC) (Premium):

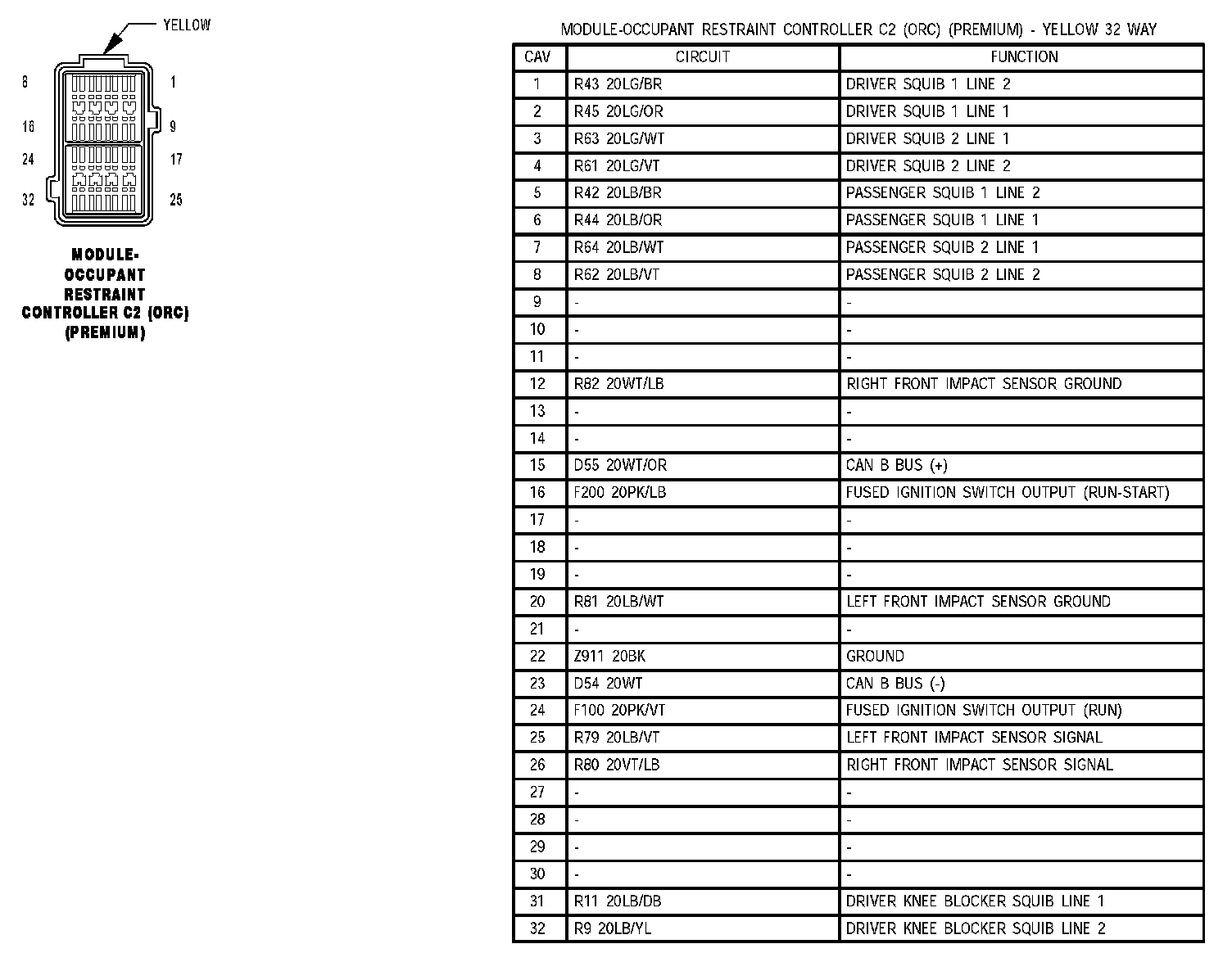

Module Occupant Restraint Controller C2 (ORC) (Premium):
