Power Distribution Module

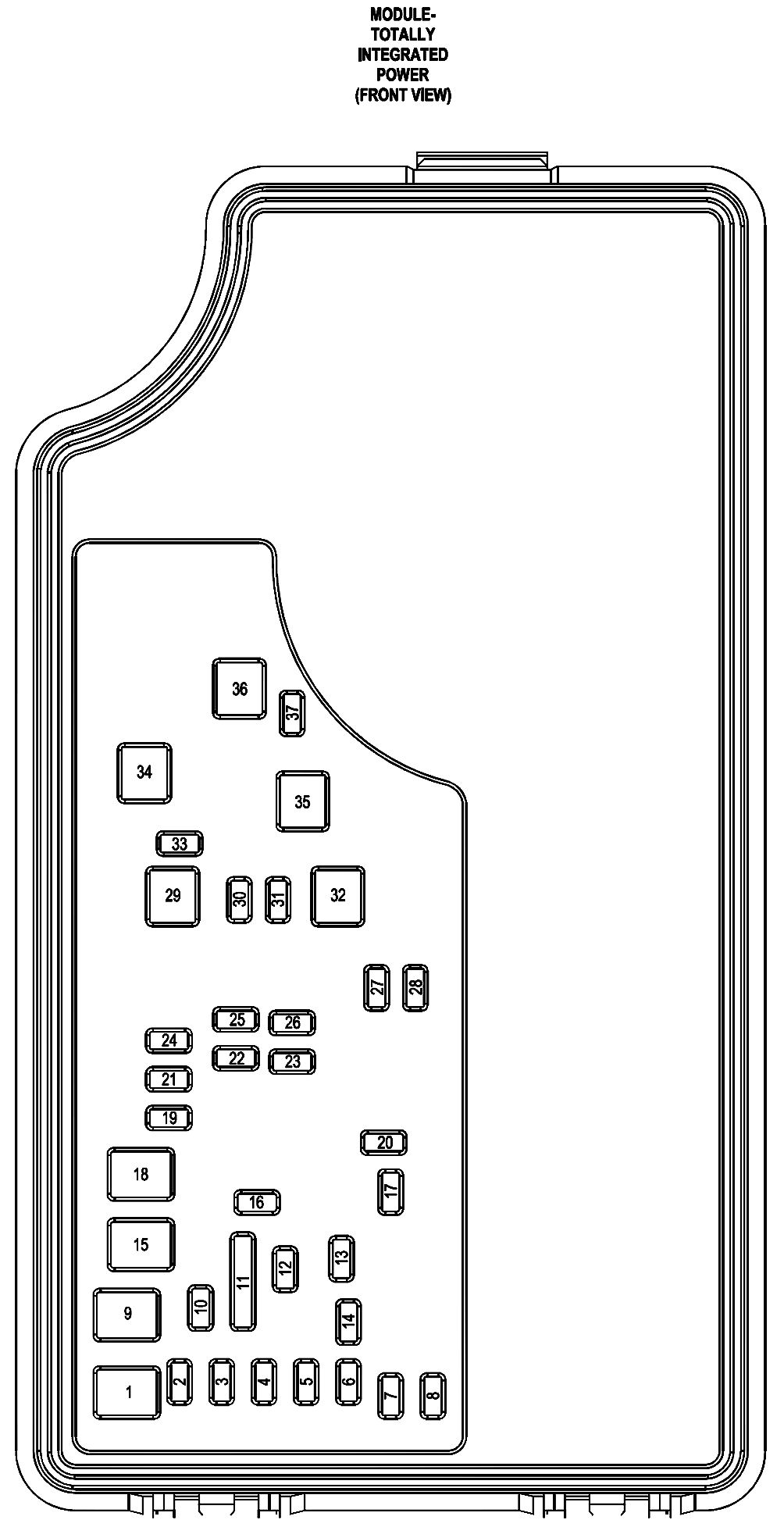

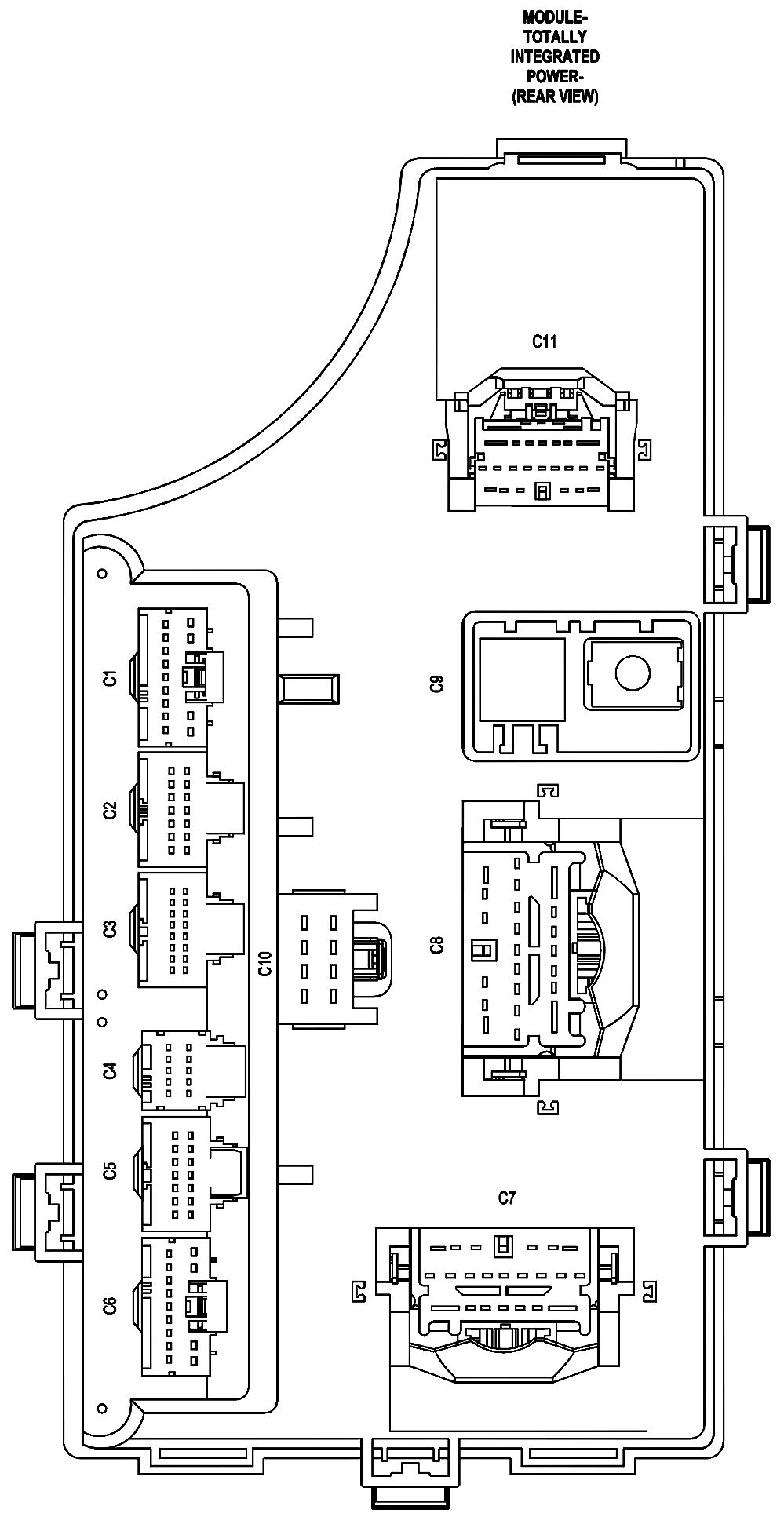

Totally Integrated Power Module (TIPM)











Module Totally Integrated Power C1:





Module Totally Integrated Power C2:





Module Totally Integrated Power C3:





Module Totally Integrated Power C4:





Module Totally Integrated Power C5:





Module Totally Integrated Power C6:

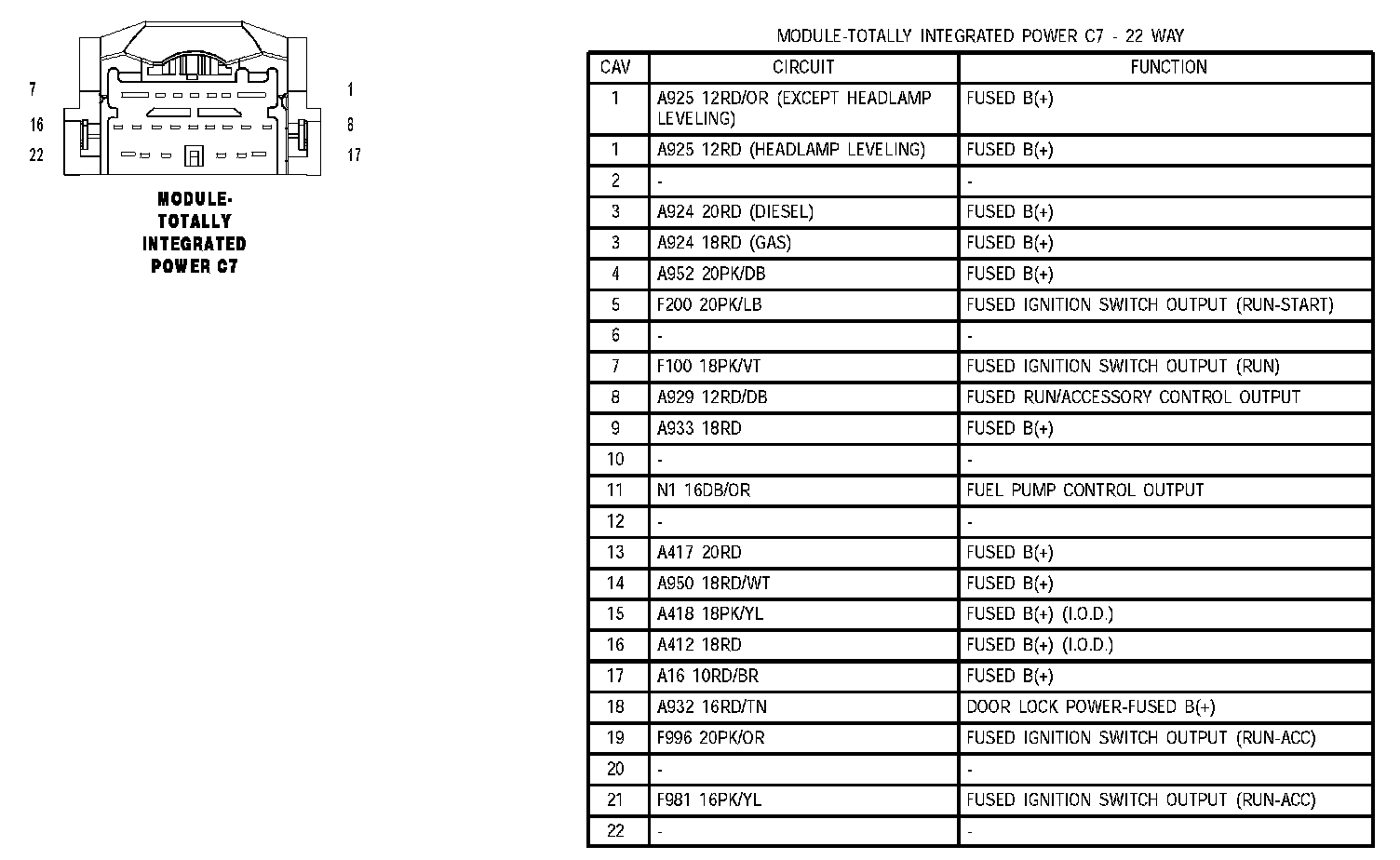

Module Totally Integrated Power C7:

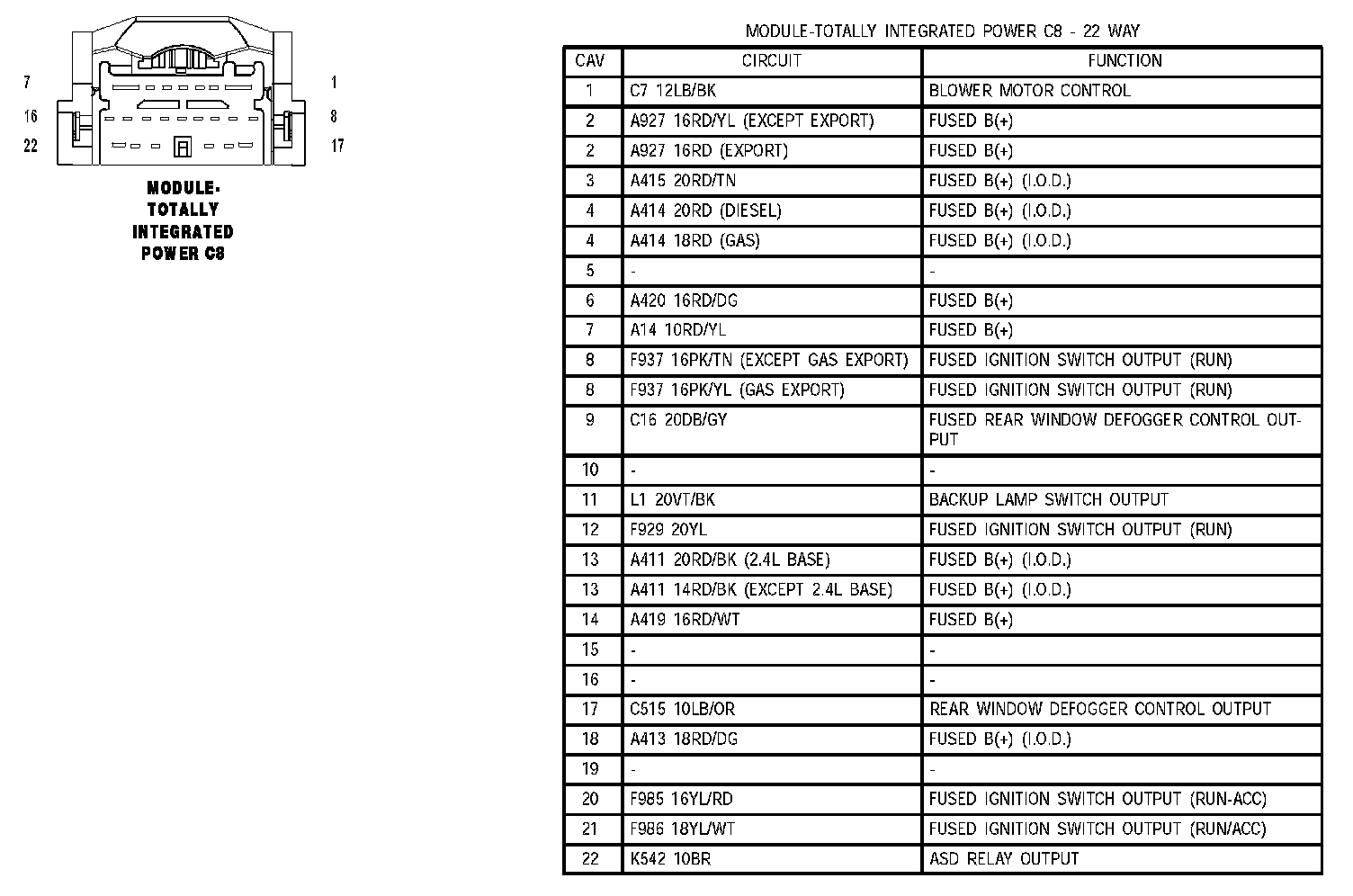

Module Totally Integrated Power C8:





Module Totally Integrated Power C9:





Module Totally Integrated Power C10:





Module Totally Integrated Power C11:
