Engine Torque Specifications

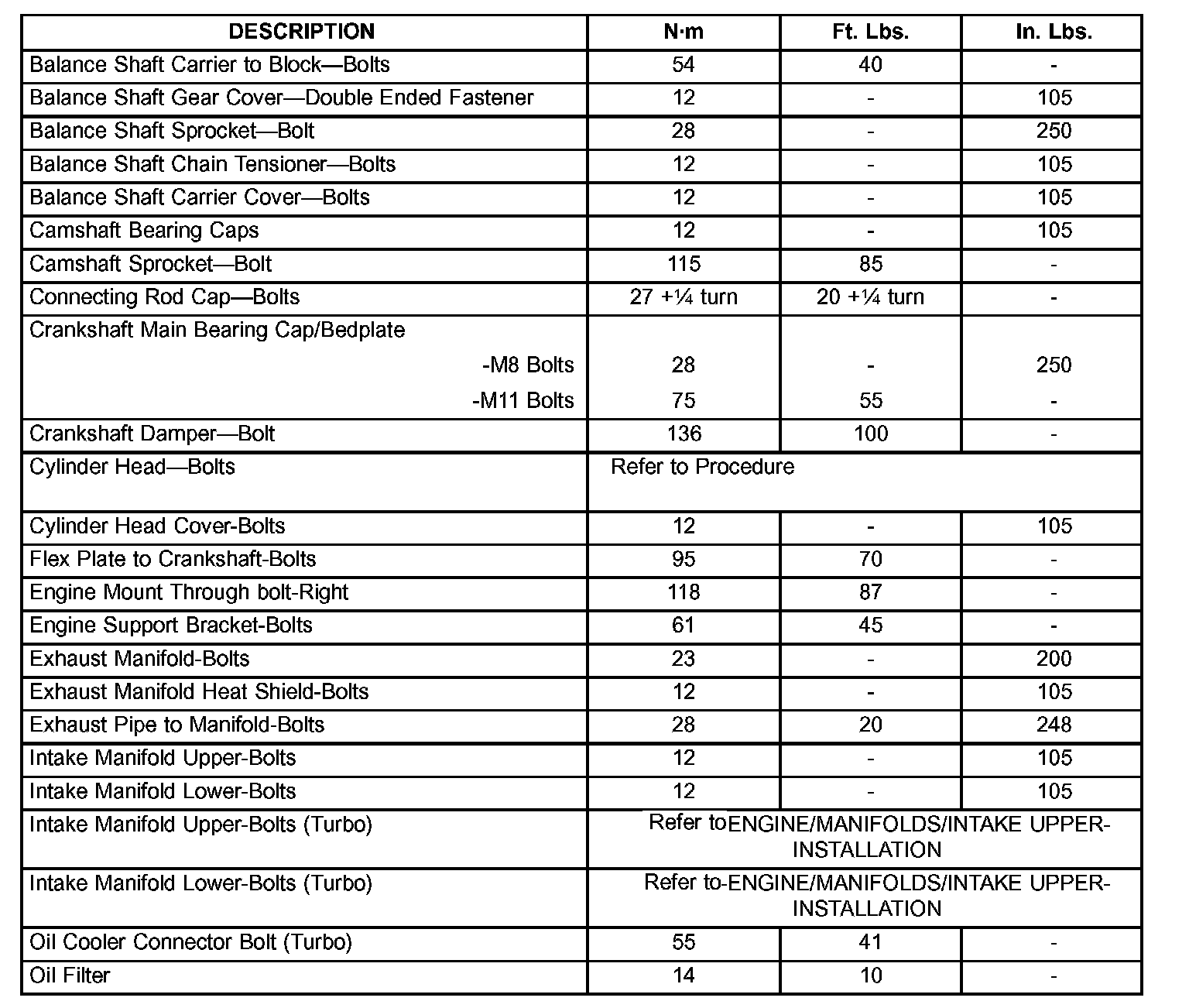

Torque Specifications

TORQUE:




TORQUE:





Water Pump Bolts 12 Nm (105 inch lbs.)
