Engine Coolant Temp Sensor: Description

The engine coolant temperature sensor threads into a coolant passage on lower intake manifold near the thermostat. New sensors have sealant applied to the threads. See Fig 1.

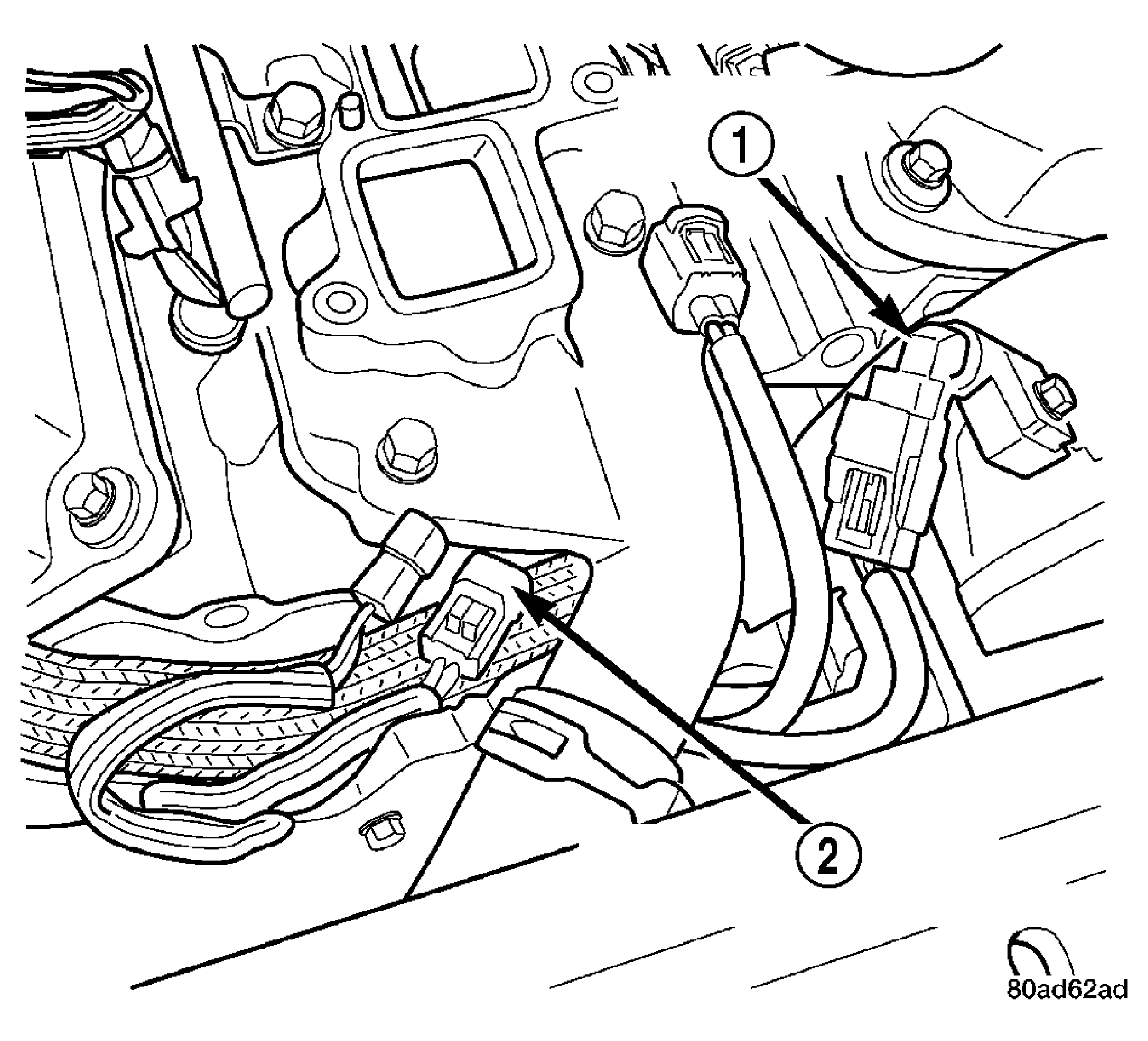

Fig 1: Engine Coolant Temperature Sensor - 3.5L

Courtesy of DAIMLERCHRYSLER CORP.
