Overhead Console: Disassembly

Remove the overhead console from the vehicle (Refer to ELECTRICAL/OVERHEAD CONSOLE - REMOVAL) .

Remove the two module retaining screws. See Fig 1.

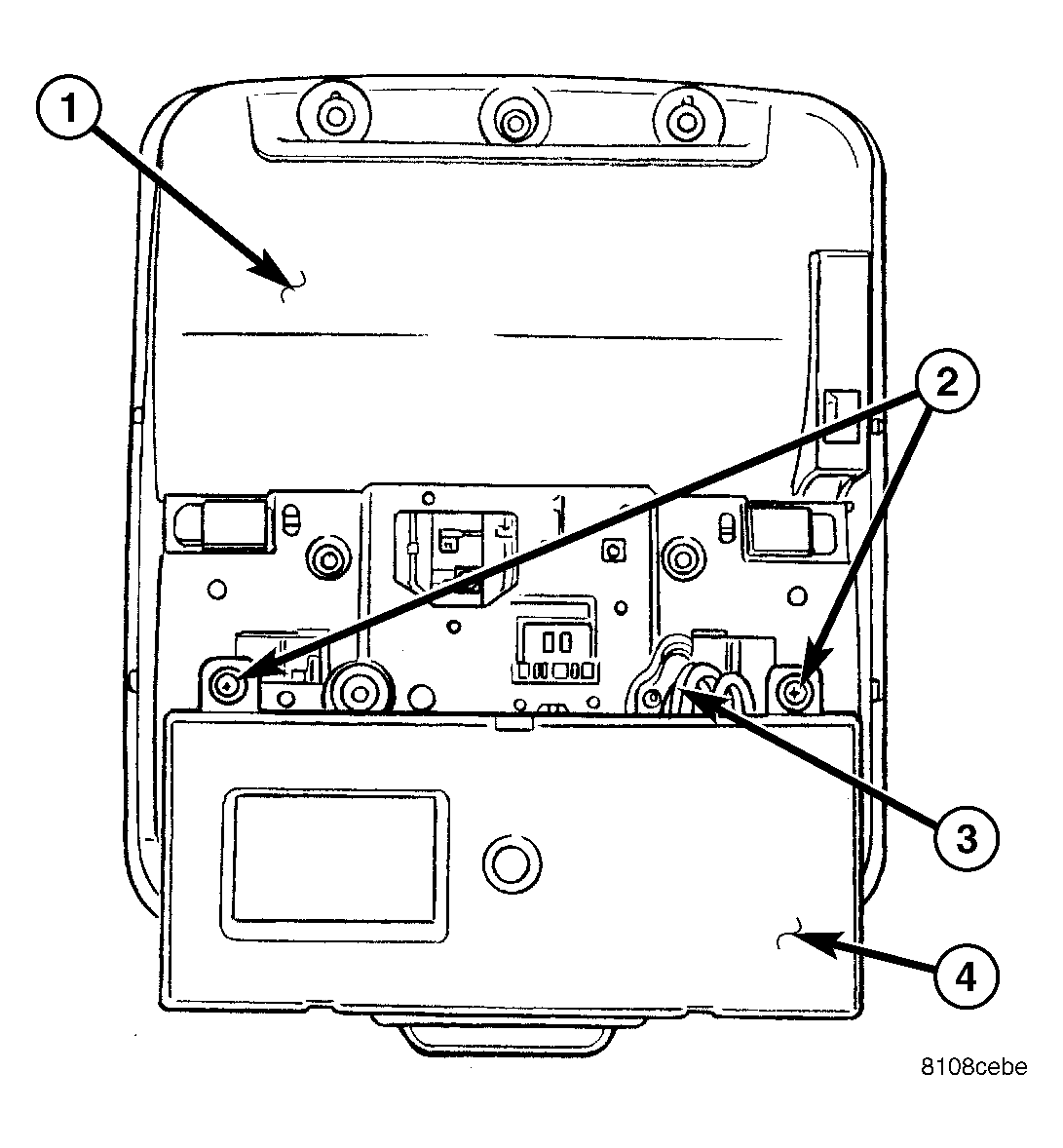

Fig 1: Top View of CS Overhead Console

Courtesy of DAIMLERCHRYSLER CORP.

1 - Overhead Console Housing

2 - CMTC Module Retaining Screws

3 - Module Electrical Connector

4 - CMTC Module

Disconnect the module electrical connector. Depress the connector retaining tab and pull straight apart.
Remove the module from the overhead console.
