Door Module

Door Module Driver C1:



Door Module Driver C2:

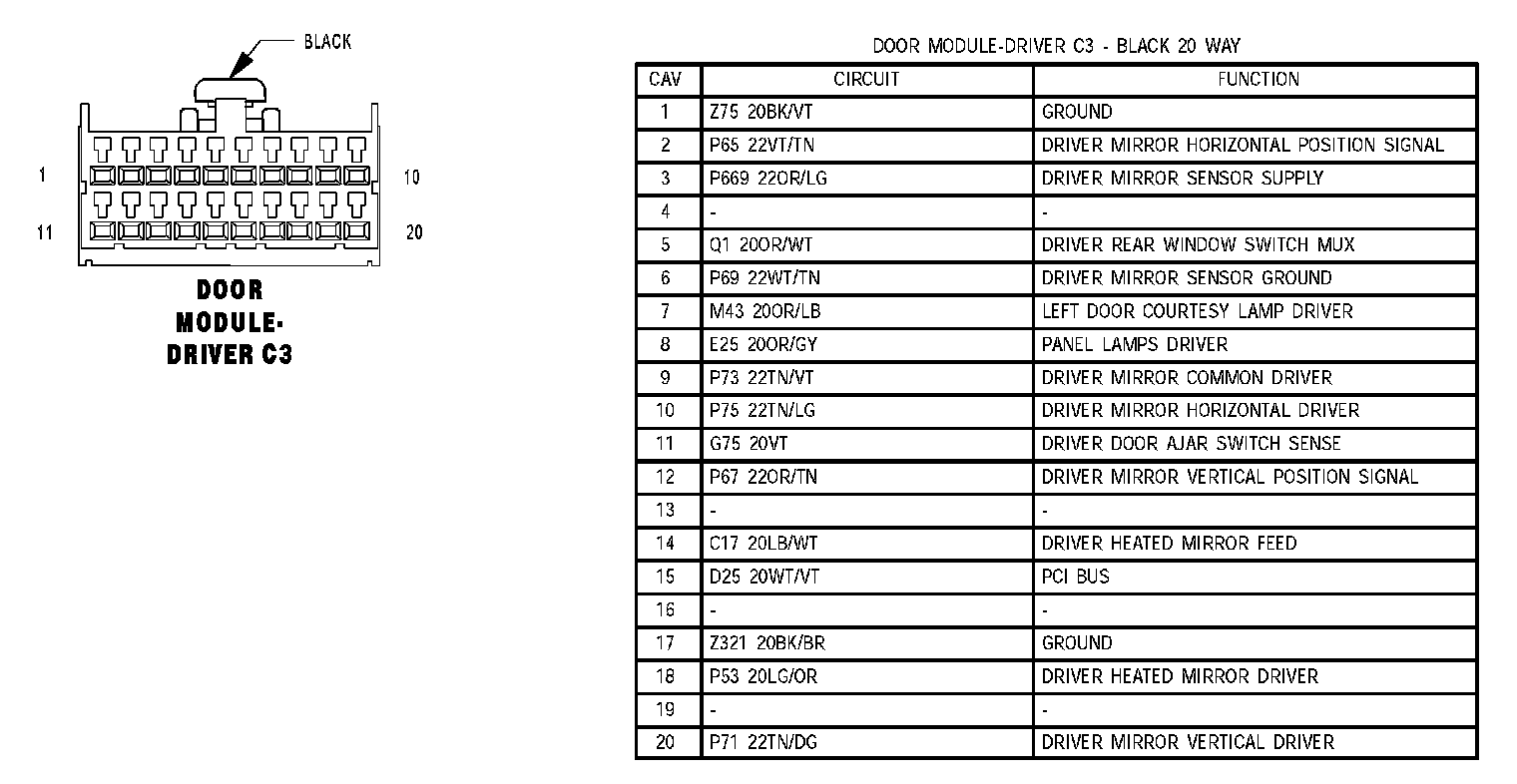

Door Module Driver C3:



Door Module Passenger C1:



Door Module Passenger C2:

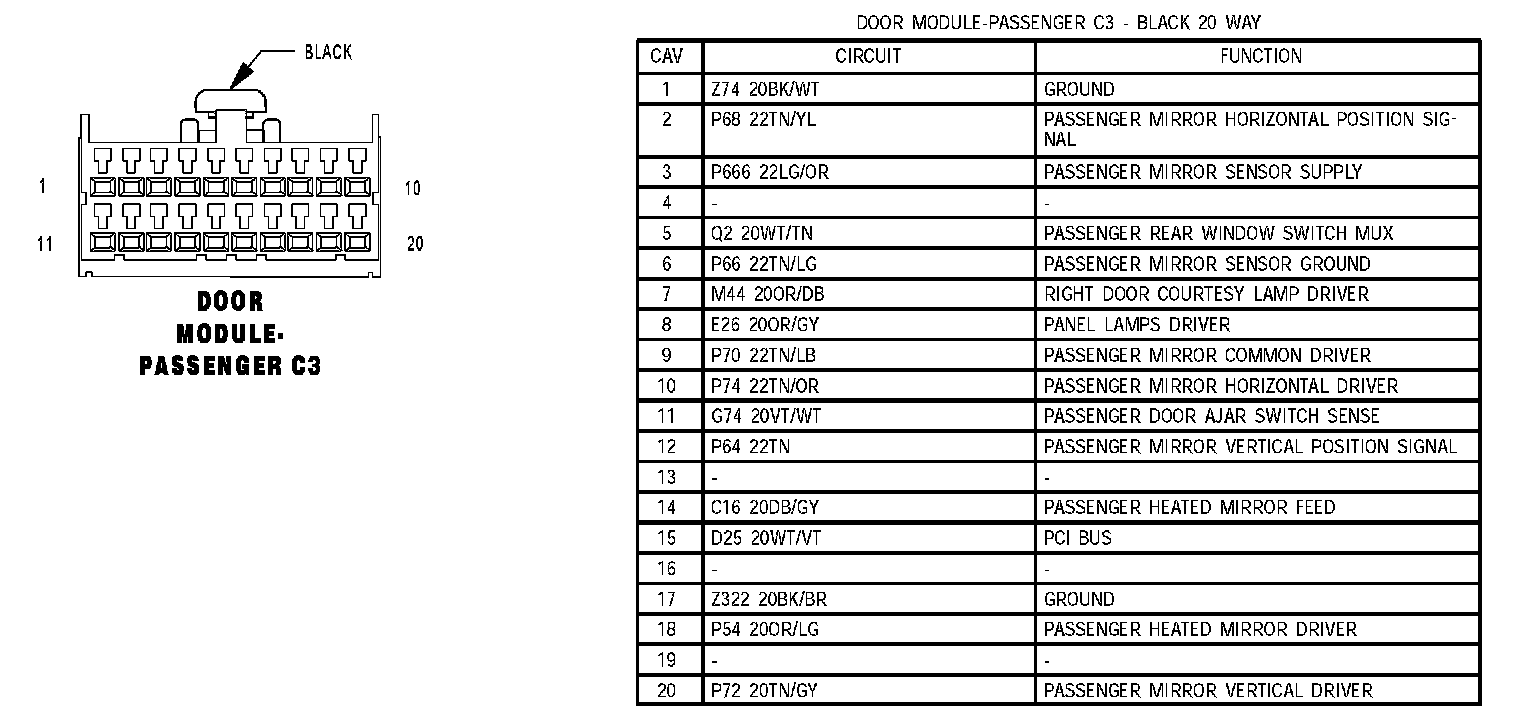

Door Module Passenger C3:
