Coolant Temperature Sensor/Switch (For Computer): Description and Operation

ENGINE COOLANT TEMP SENSOR

DESCRIPTION

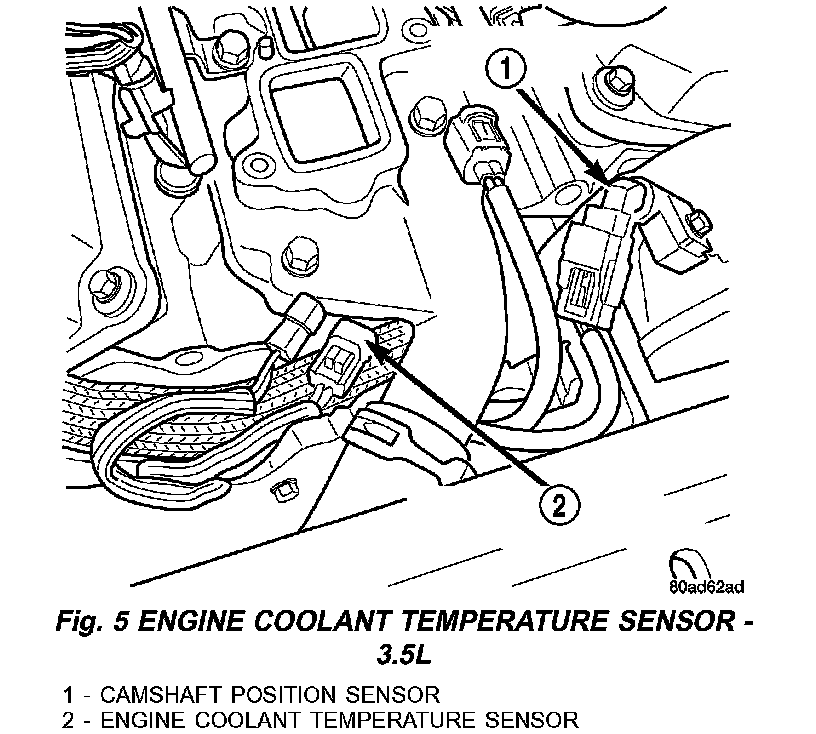

Fig. 5 ENGINE COOLANT TEMPERATURE SENSOR - 3.5L:

The engine coolant temperature sensor threads into a coolant passage on lower intake manifold near the thermostat. New sensors have sealant applied to the threads (Fig. 5).
