Transmission Position Sensor/Switch: Service and Repair
TRANSMISSION RANGE SENSORREMOVAL
1. Remove valve body assembly from transaxle.

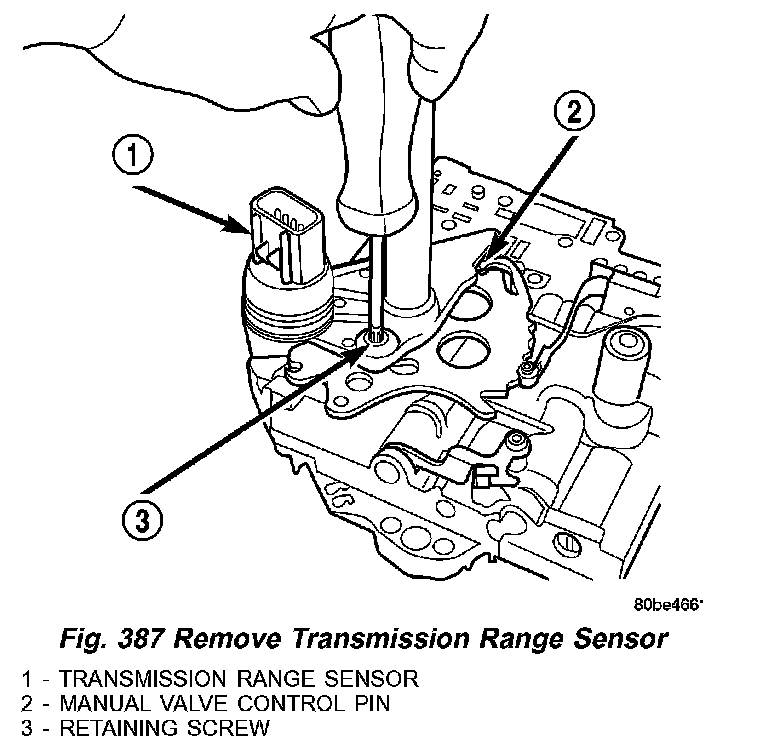

Fig. 387 Remove Transmission Range Sensor:
2. Remove transmission range sensor retaining screw (3) (Fig. 387) and remove sensor (1) from valve body
3. Remove TRS (1) from manual shaft.
INSTALLATION
Fig. 388 Remove Transmission Range Sensor:
1. Install transmission range sensor (TRS) (1) (Fig. 388) to the valve body and torque retaining screw (3) to 5 Nm (45 inch lbs.).
2. Install valve body to transaxle.
