Air Bag Control Module

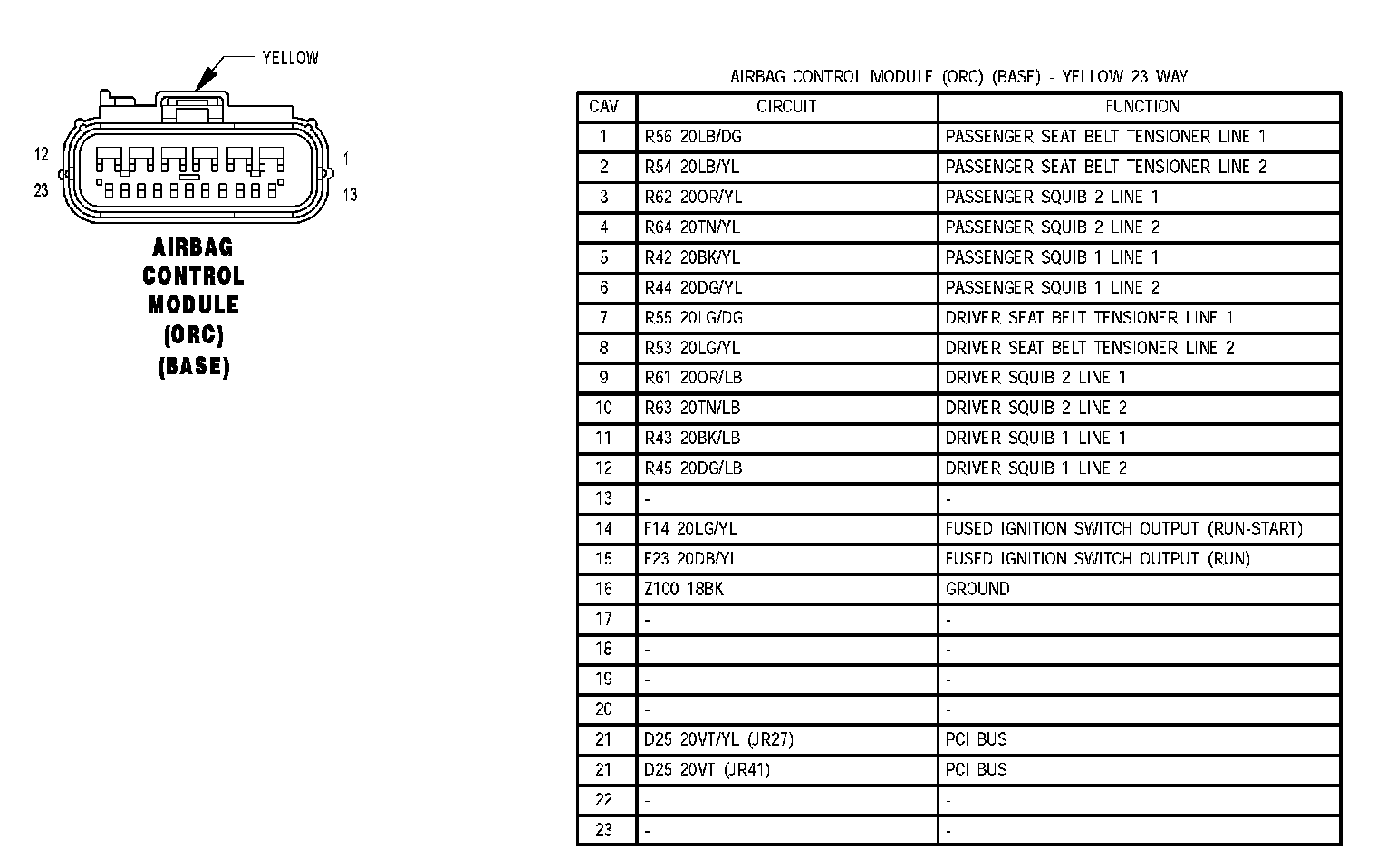

Airbag Control Module (ORC) (Base):



Airbag Control Module C1 (ORC) (Premium):

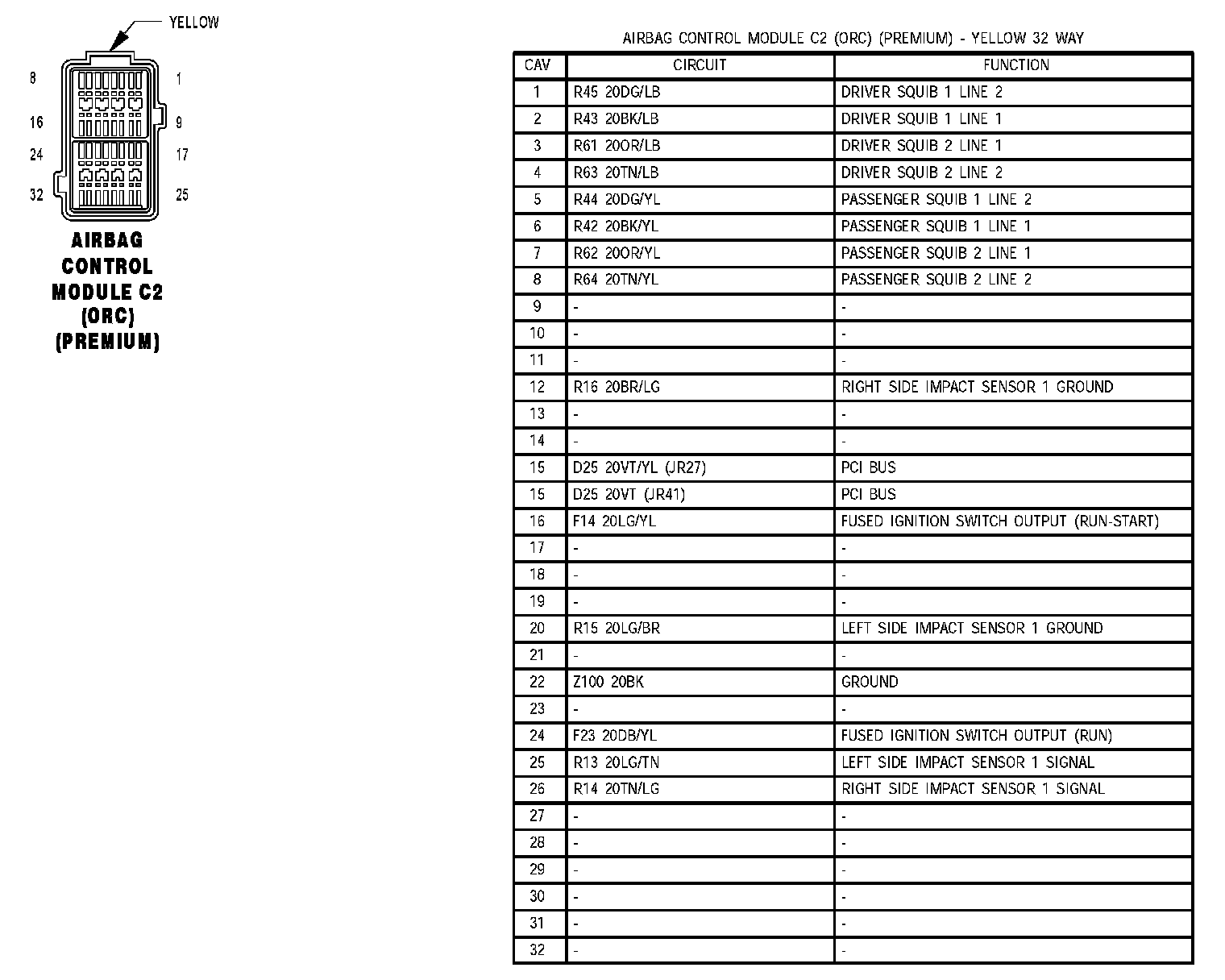

Airbag Control Module C2 (ORC) (Premium):
