Coolant Temperature Sensor/Switch (For Computer): Service and Repair

ENGINE COOLANT TEMPERATURE SENSOR

REMOVAL
1. With engine cold, partially drain cooling system below level of ECT sensor.

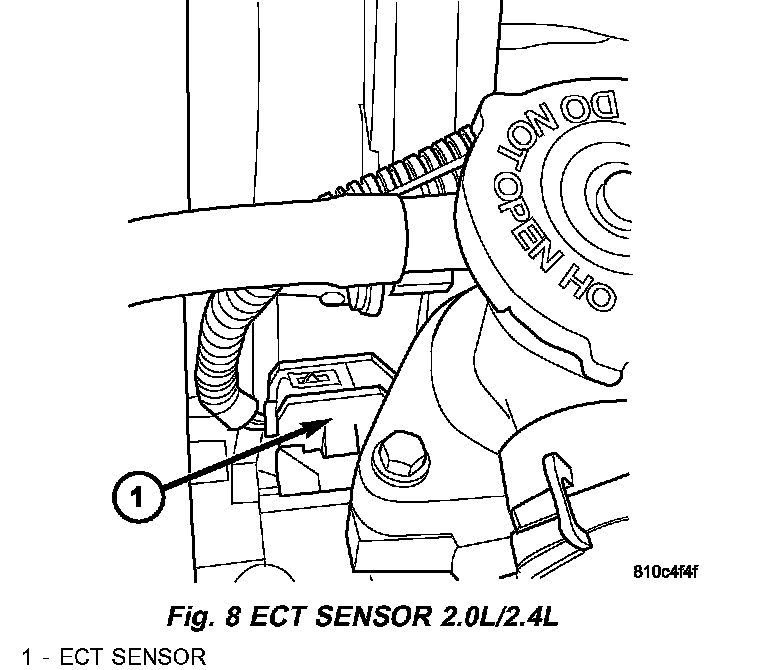

Fig. 8:

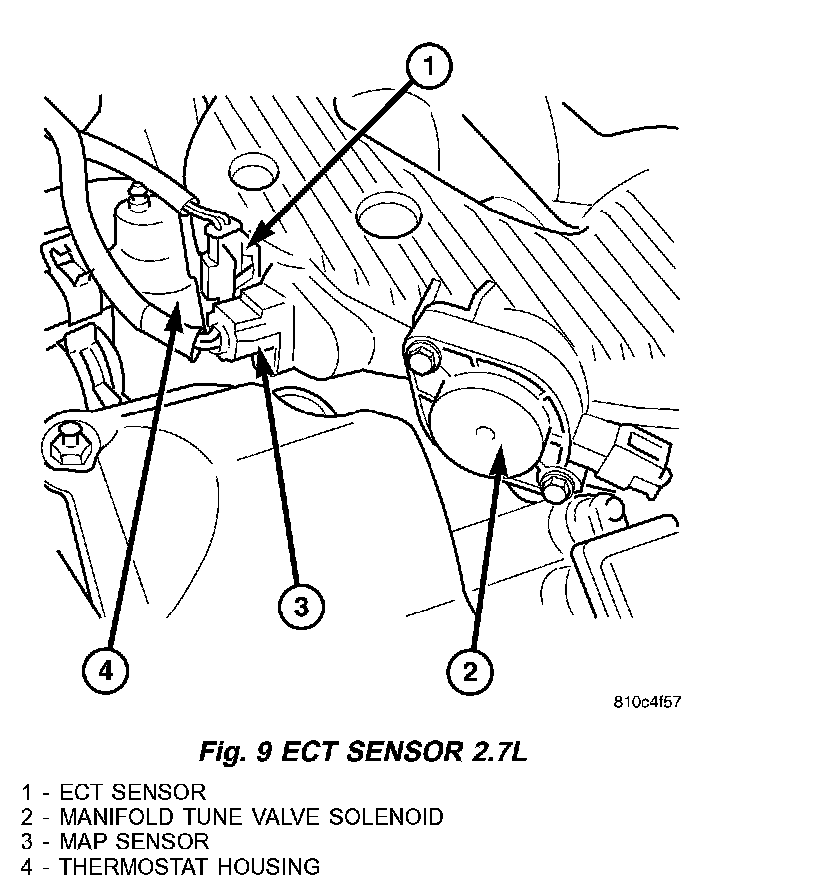

Fig. 9:

2. Disconnect ECT sensor electrical connector (Fig. 8) or (Fig. 9).
3. Remove ECT sensor.

INSTALLATION
1. Install ECT sensor. Torque sensor to 19 Nm (168 inch lbs.).
2. Reconnect ECT sensor electrical sensor.
3. Fill cooling system.
