40TE AUTOMATIC TRANSAXLE

TRANSMISSION RANGE SENSOR

REMOVAL
(1) Remove valve body assembly from transaxle.

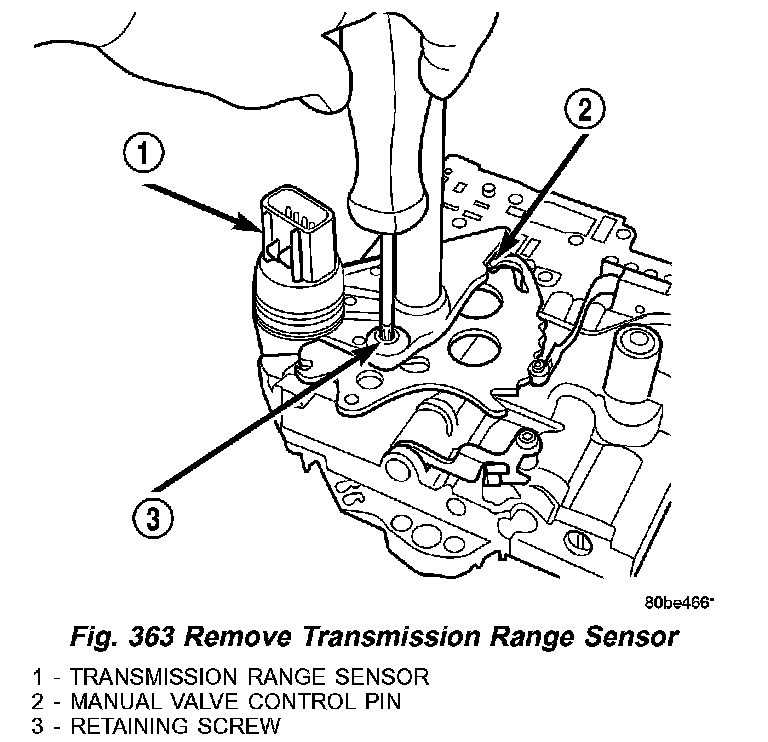

Fig.363 Remove Transmission Range Sensor:

(2) Remove transmission range sensor retaining screw (3) (Fig. 363) and remove sensor (1) from valve body
(3) Remove TRS (1) from manual shaft.

INSTALLATION

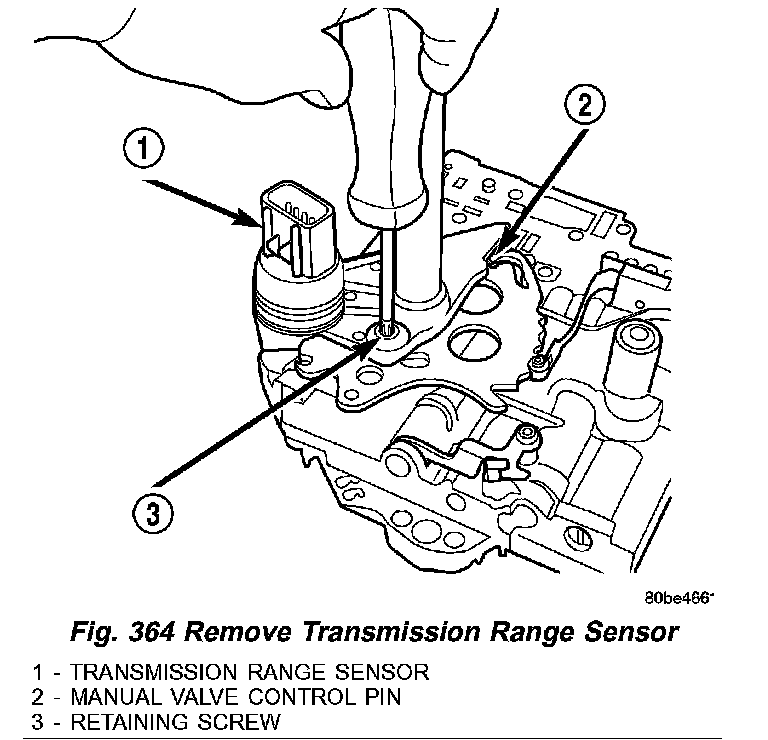

Fig. 364 Remove Transmission Range Sensor:

(1) Install Transmission Range Sensor (TRS) (1) (Fig. 364) to the valve body and torque retaining screw (3) to 5 Nm (45 inch lbs.).
(2) Install valve body to transaxle.
