41TE Automatic Transaxle

41TE AUTOMATIC TRANSAXLE

TRANSMISSION RANGE SENSOR

REMOVAL
(1) Remove valve body assembly from transaxle.

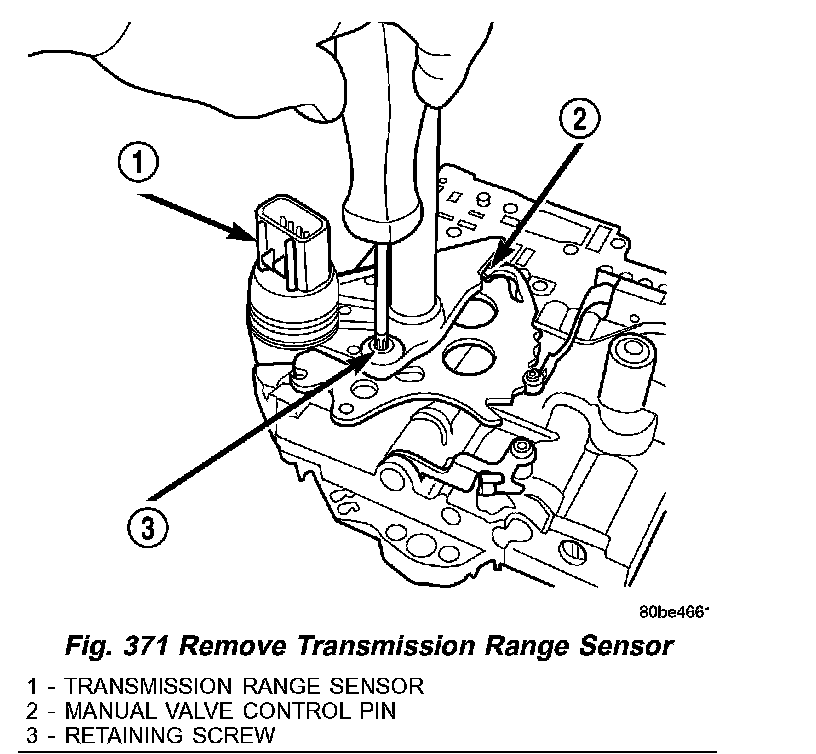

Fig. 371 Remove Transmission Range Sensor:

(2) Remove transmission range sensor retaining screw (3) (Fig. 371) and remove sensor (1) from valve body
(3) Remove TRS (1) from manual shaft.

INSTALLATION

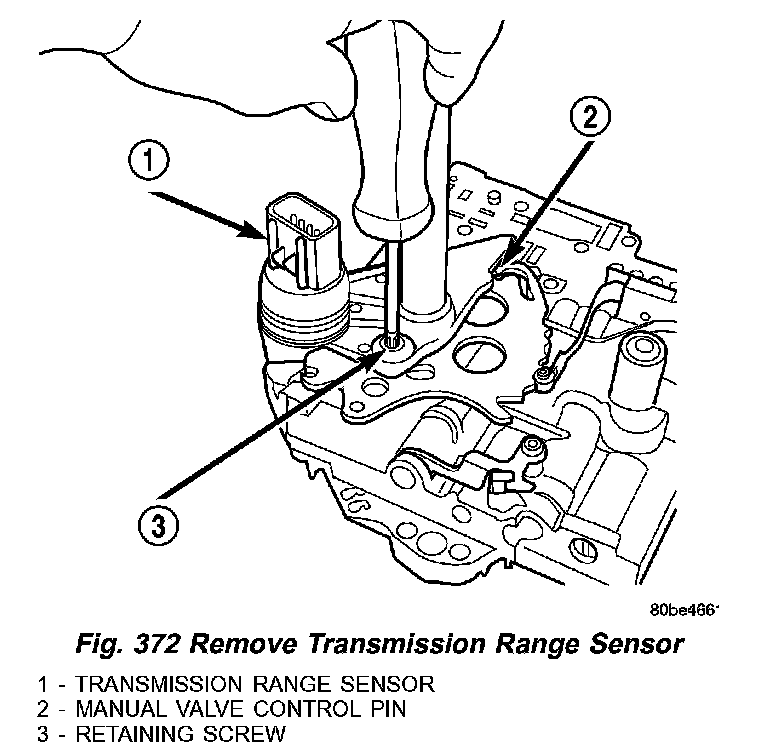

Fig. 372 Remove Transmission Range Sensor:

(1) Install transmission range sensor (TRS) (1) (Fig. 372) to the valve body and torque retaining screw (3) to 5 Nm (45 inch lbs.).
(2) Install valve body to transaxle.
