40TE Automatic Transaxle
40TE AUTOMATIC TRANSAXLESPECIFICATIONS - 40TE TRANSAXLE
40TE AUTOMATIC TRANSAXLE GENERAL SPECIFICATIONS:
40TE AUTOMATIC TRANSAXLE GEAR RATIOS:
40TE AUTOMATIC TRANSAXLE BEARING SETTINGS (END PLAY & TURNING TORQUE):
40TE AUTOMATIC TRANSAXLE CLUTCH CLEARANCES:
40TE AUTOMATIC TRANSAXLE OIL PUMP CLEARANCES:
40TE AUTOMATIC TRANSAXLE INPUT SHAFT:

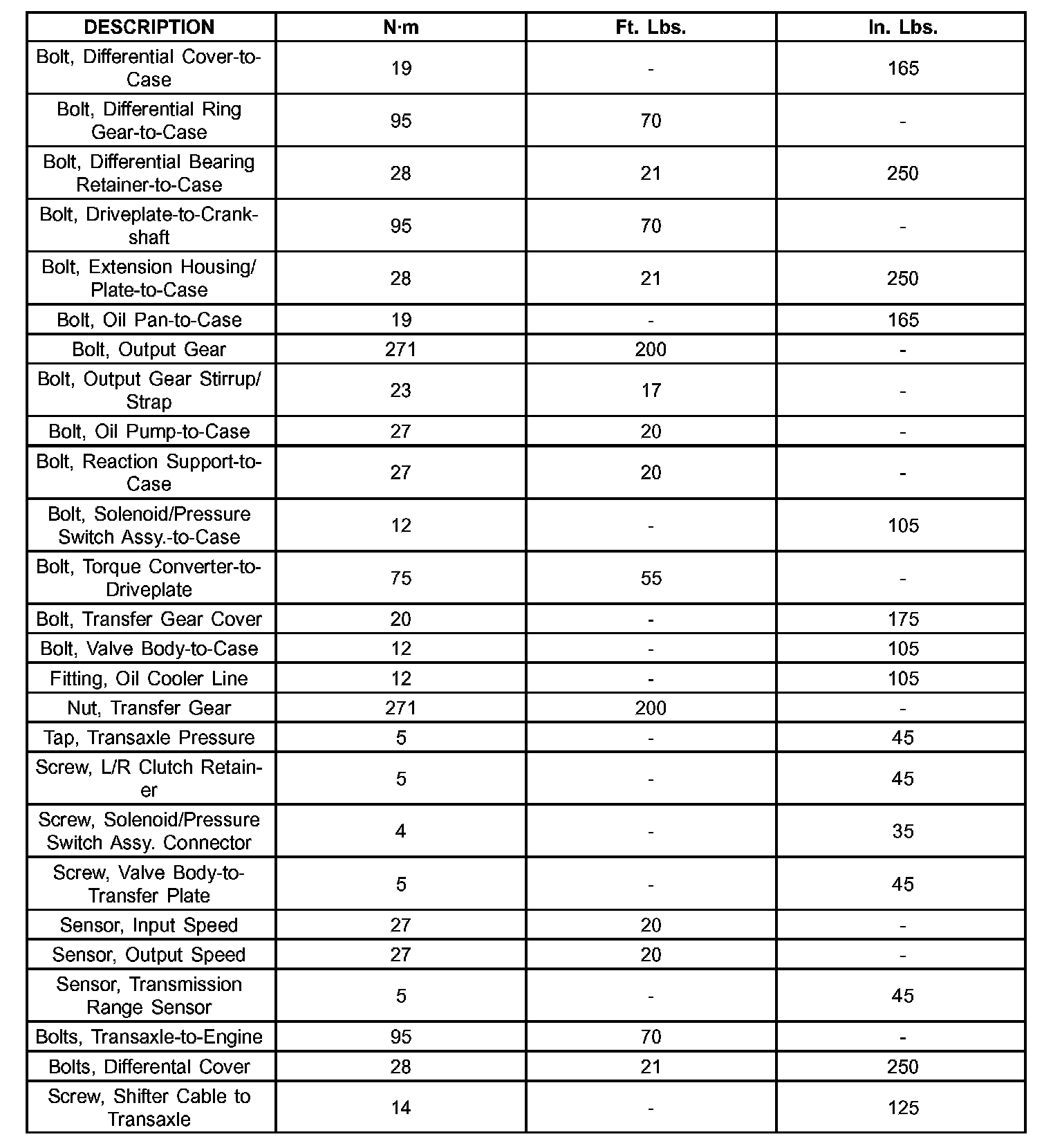

40TE AUTOMATIC TRANSAXLE TORQUE SPECIFICATIONS (PART 1):
40TE AUTOMATIC TRANSAXLE TORQUE SPECIFICATIONS (PART 2):
