Speed Control: Servo: Installation

  1. With throttle in full open position feed cable sleeve through hole in bracket, then align hole in speed control cable sleeve with hole in servo pin and install retaining clip. See Figure.
  2. Connect vacuum hose to servo.
  3. Connect electrical connector.

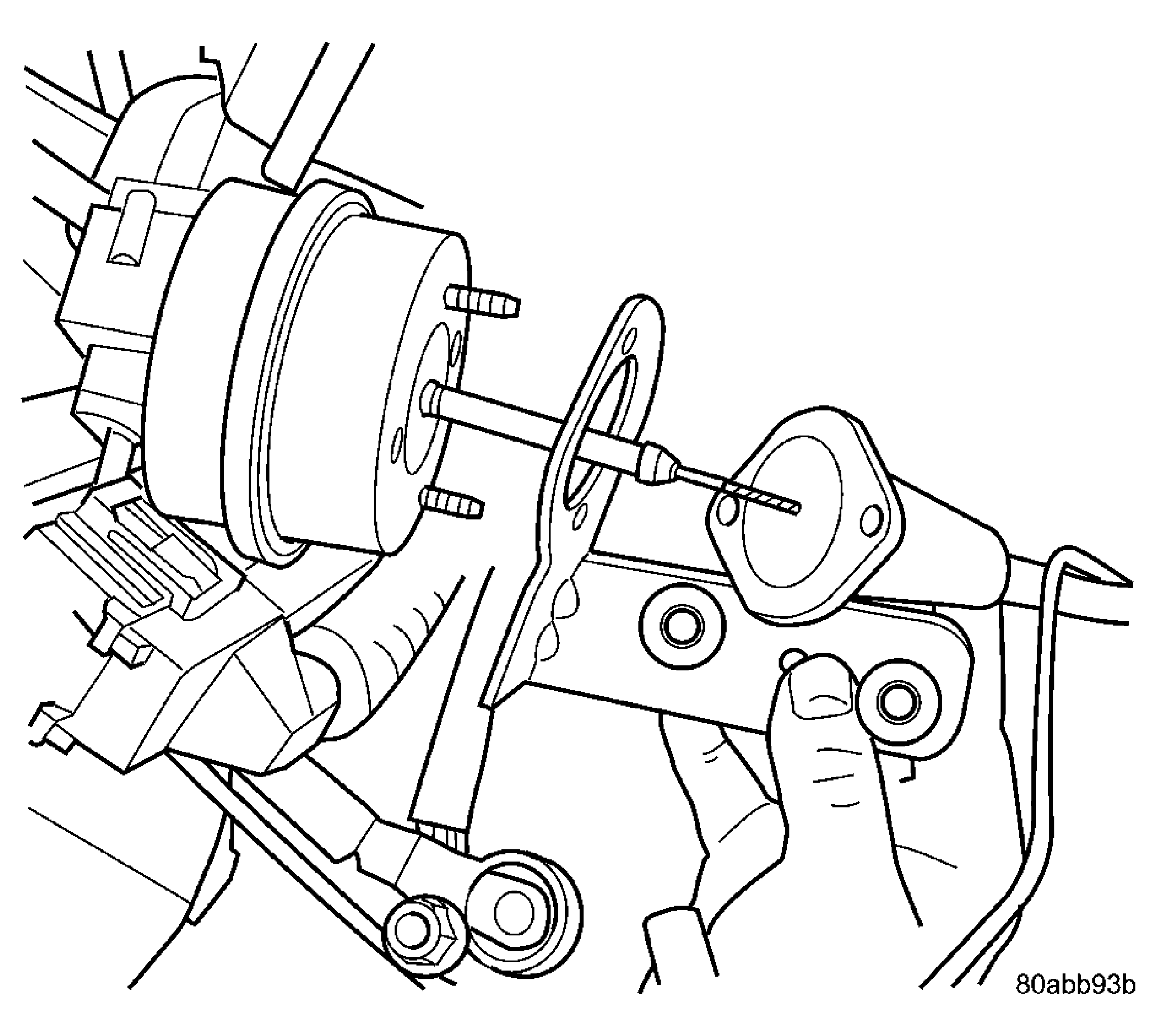

  4. Insert servo studs through holes in speed control cable and mounting bracket. See Figure.
  5. Install nuts, tighten to 6.7 N.m (60 in. lbs.).
  6. Install servo and bracket to stud plate in shock tower and tighten nuts.

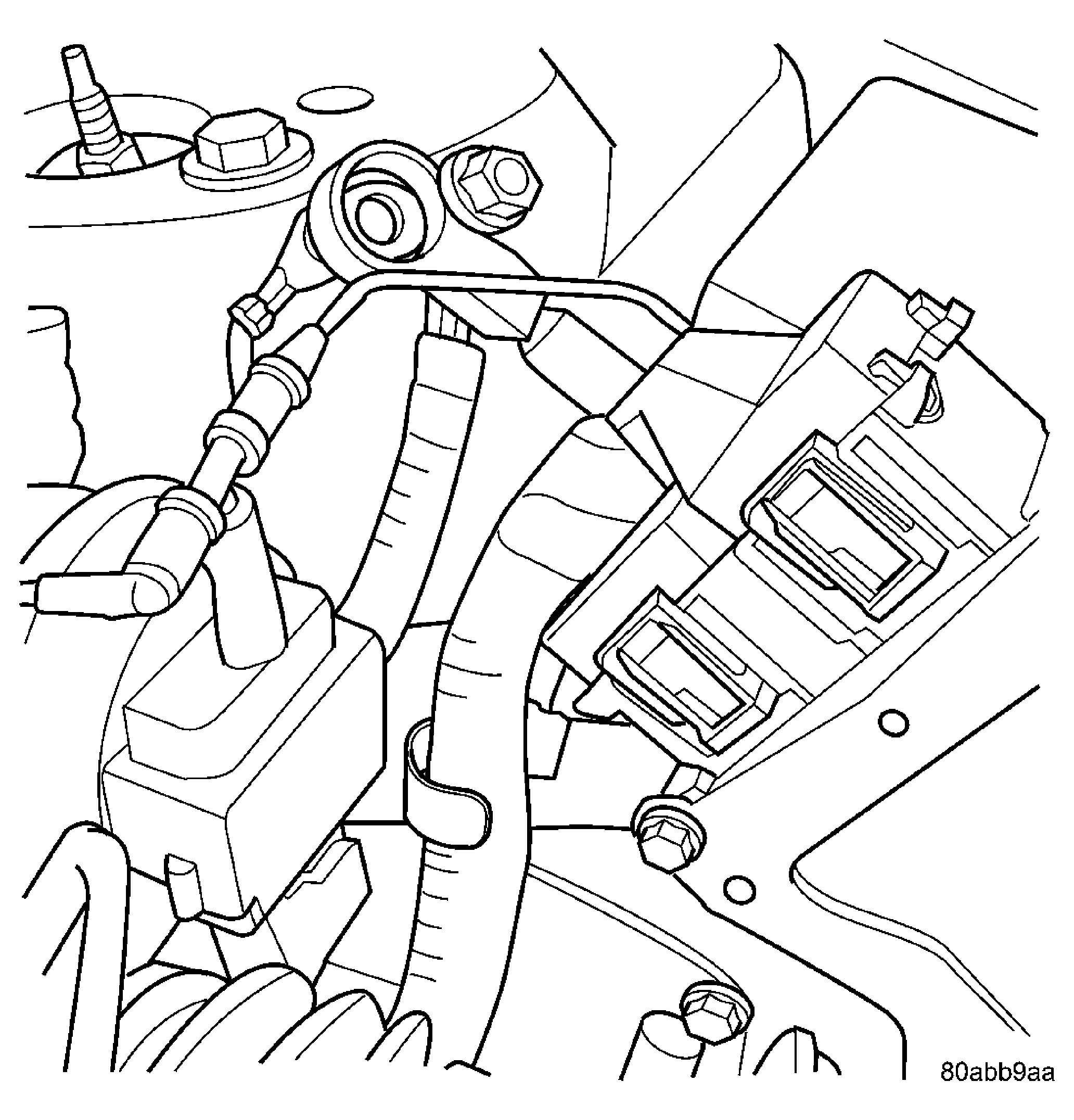

  7. Connect negative battery cable. See Figure.
