Anti-Lock Brake Module - 47 Way

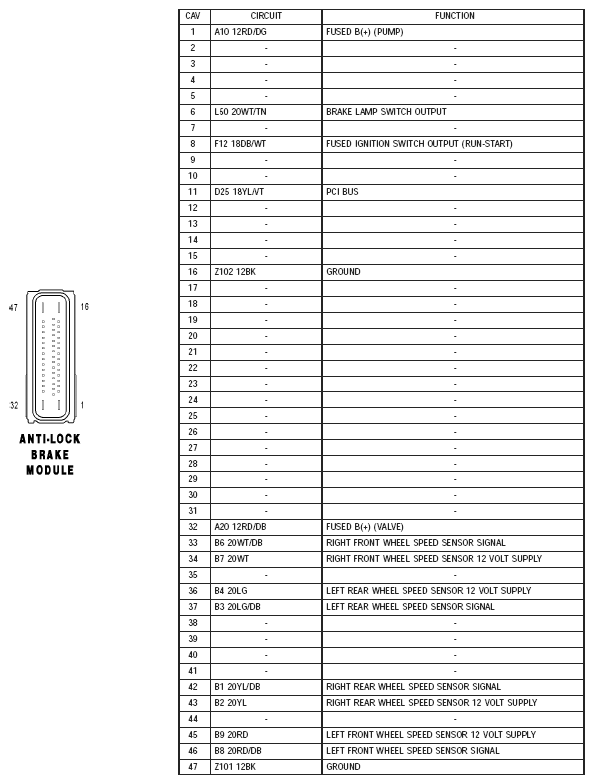

Fig 1: Identifying Connector Pinouts - Anti-Lock Brake Module - 47 Way
