Junction Block Body Control Module JB - 12 Way

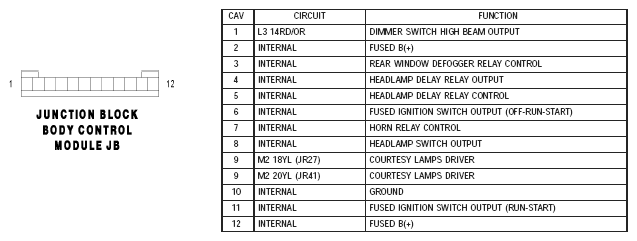

Fig 1: Identifying Connector Pinouts - Junction Block Body Control Module JB - 12 Way
