Body Control Module C1 - 16 Way

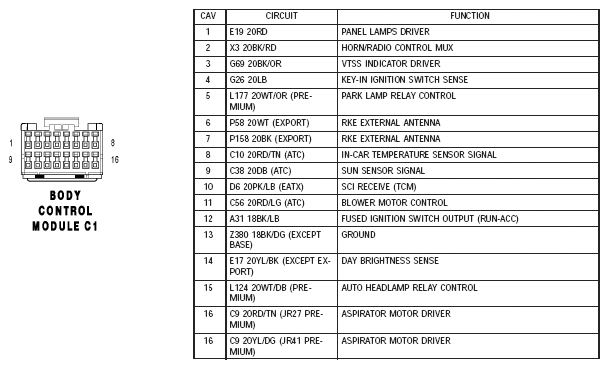

Fig 1: Identifying Connector Pinouts - Body Control Module C1 - 16 Way
