Junction Block

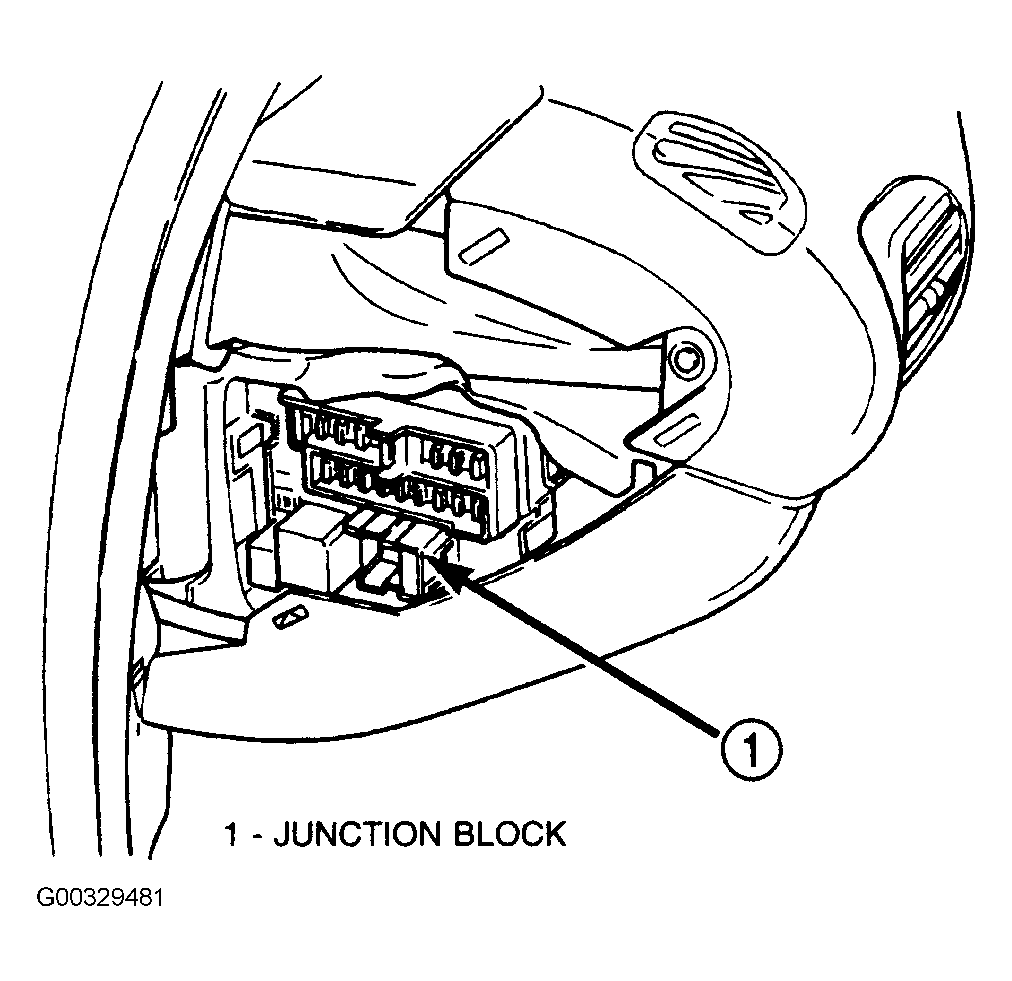

For junction block location, see Fig 1.

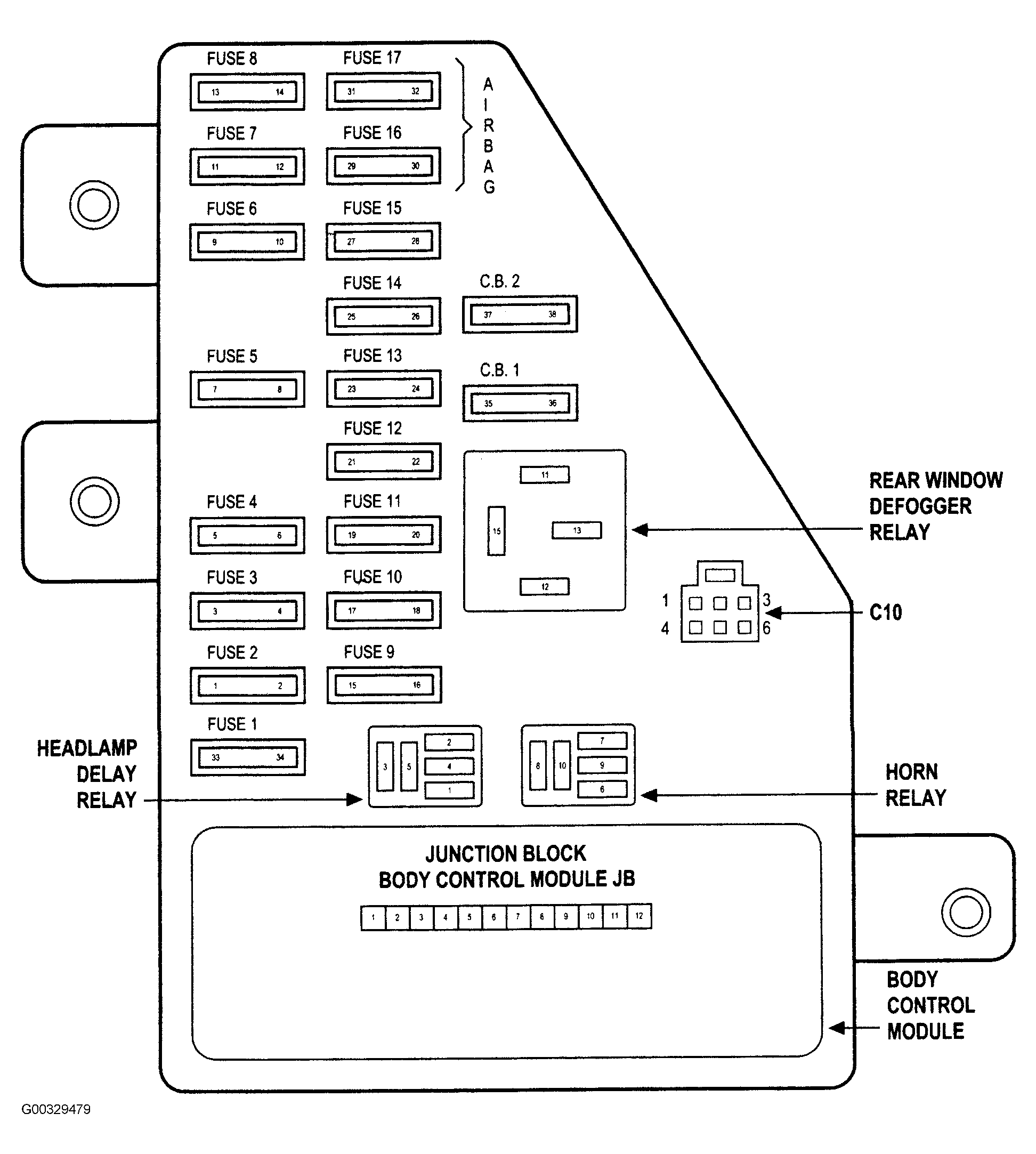

Junction Block Components
| FUSE NO. | AMPS | FUNCTION |
|---|---|---|
| 1 | 30A | Blower Motor |
| 2 | 10A | Right High Beam Headlight, High Beam Indicator |
| 3 | 10A | Left High Beam Headlight |
| 4 | 15A | Power Door Lock Switch Illumination, Power Top Switch, Transmission Range Switch, Daytime Running Light Module (Canada), Power Windows, Anti-Lock Brake System Module |
| 5 | 10A | Power Door Lock & Door Lock Arm/Disarm Switches, Vanity, Reading, Map, Rear Seating, Ignition & Trunk Lights, Illuminated Entry, Radio, Power Antenna, Data Link Connector, Body Control Module, Power Amplifier |
| 6 | 10A | Heated Rear Window Indicator |
| 7 | 20A | Instrument Cluster Illumination, Park & Tail Lights |
| 8 | 20A | Power Receptacle, Horns, Ignition, Fuel, Start |
| 9 | 15A | Power Door Lock Motors (Body Control Module) |
| 10 | 20A | Daytime Running Light Module (Canada) |
| 11 | 10A | Instrument Cluster, Transmission Control, Park/Neutral Switch, Body Control Module |
| 12 | 10A | Left Low Beam Headlight |
| 13 | 20A | Right Low Beam Headlight, Fog Light Switch |
| 14 | 10A | Radio |
| 15 | 10A | Turn Signal & Hazard Flashers, Wiper Switch, Seat Belt Control Module, Wiper Relays, Rear Window Defroster Relay |
| 16 | 10A | Airbag Control Module |
| 17 | 10A | Airbag Control Module |
| CB1 | 20A | Power Seat Switch, Remote Trunk Release |
| CB2 | 30A | Power Windows |
