Power Distribution Center

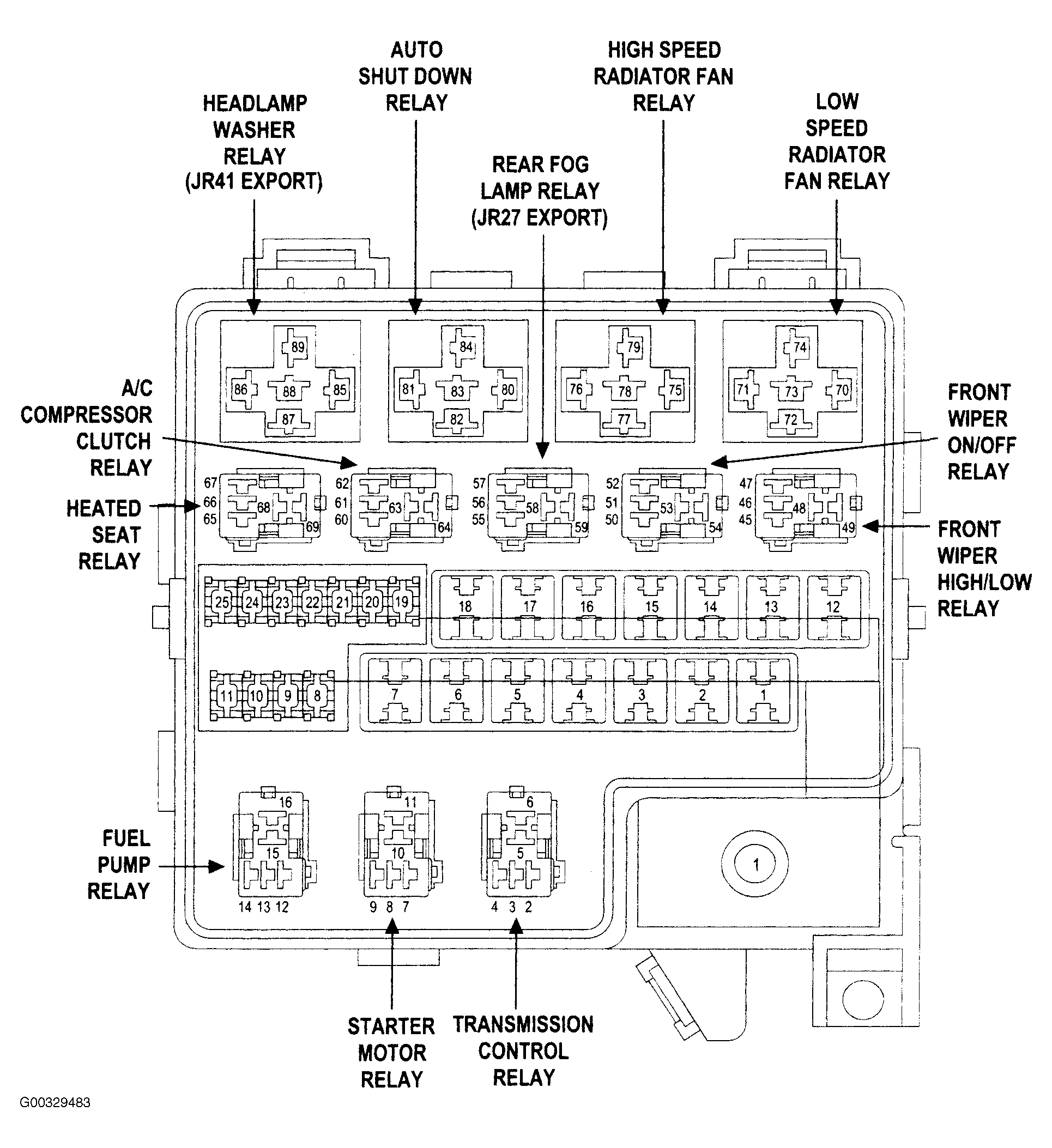

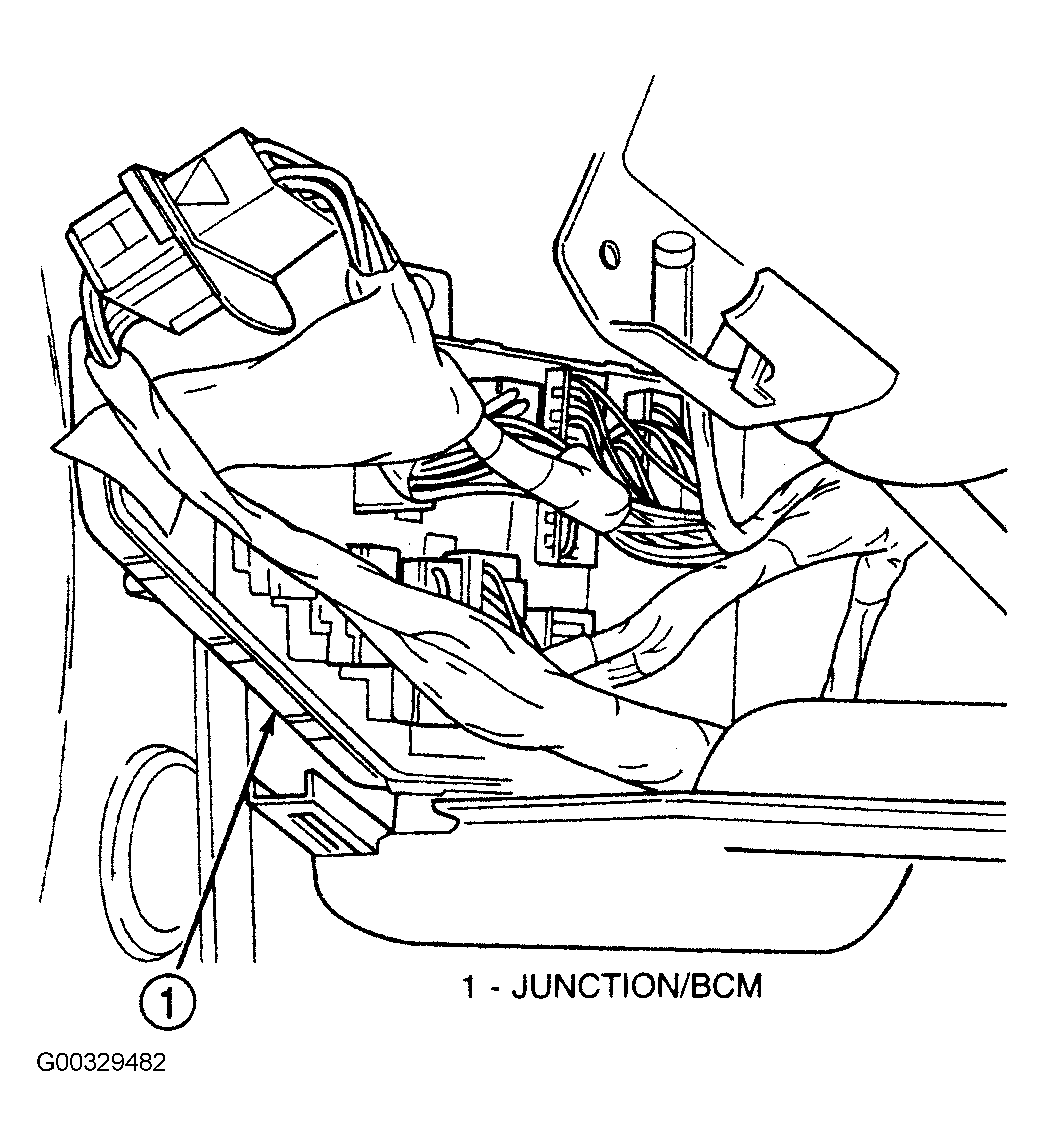

For power distribution center location, see Fig 1.
Power Distribution Center Components
| FUSE NO. | AMPS | FUNCTION |
|---|---|---|
| 1 | 40A | Ignition Switch |
| 2 | 20A | Cigar & Acc. Power |
| 3 | 30A | HDLP Washer |
| 4 | 40A | Headlamps |
| 5 | - | - |
| 6 | 40A | EBL |
| 7 | - | - |
| 8 | 20A | Start/Fuel |
| 9 | 20A | EATX |
| 10 | 10A | Ignition Switch |
| 11 | 20A | Stop Lamps |
| 12 | 40A | Radiator Fan |
| 13 | 20A | Heated Seats |
| 14 | 30A | PCM/ASD |
| 15 | 40A | ABS |
| 16 | 40A | Park Lamps |
| 17 | 40A | Power Top |
| 18 | 40A | Wipers |
| 19 | 20A | Seat Belts |
| 20 | 20A | Hazards |
| 21 | - | - |
| 22 | 20A | ABS |
| 23 | 20A | Relays |
| 24 | 20A | Injector/Coil |
| 25 | 20A | 02 SSR/ALT/EGR |
