Heat Shields: Description

The exhaust system heat shields are attached to the under body of the vehicle. See Fig 1.

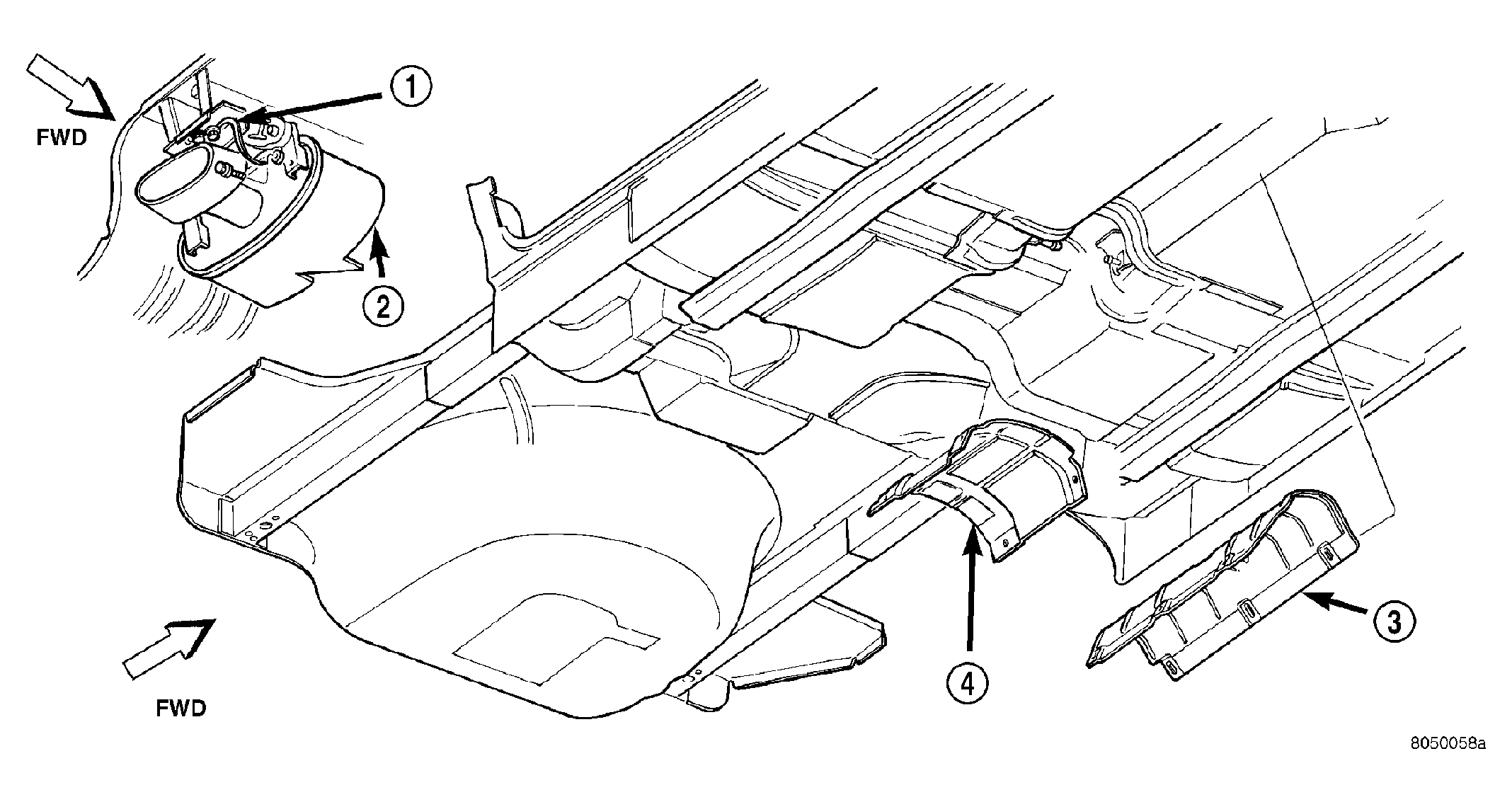

Fig 1: Heat Shields

Courtesy of DAIMLERCHRYSLER CORP.

1 - GROUND STRAP

2 - MUFFLER

3 - HEAT SHIELD

4 - RESONATOR HEAT SHIELD
