Fuel Level Sending Unit / Sensor: Removal

Remove fuel pump module. Refer to FUEL PUMP MODULE .

1. Depress retaining tab and remove the fuel pump/level sensor connector from the bottom of the fuel pump module electrical connector. See Fig 1 and Fig 2.

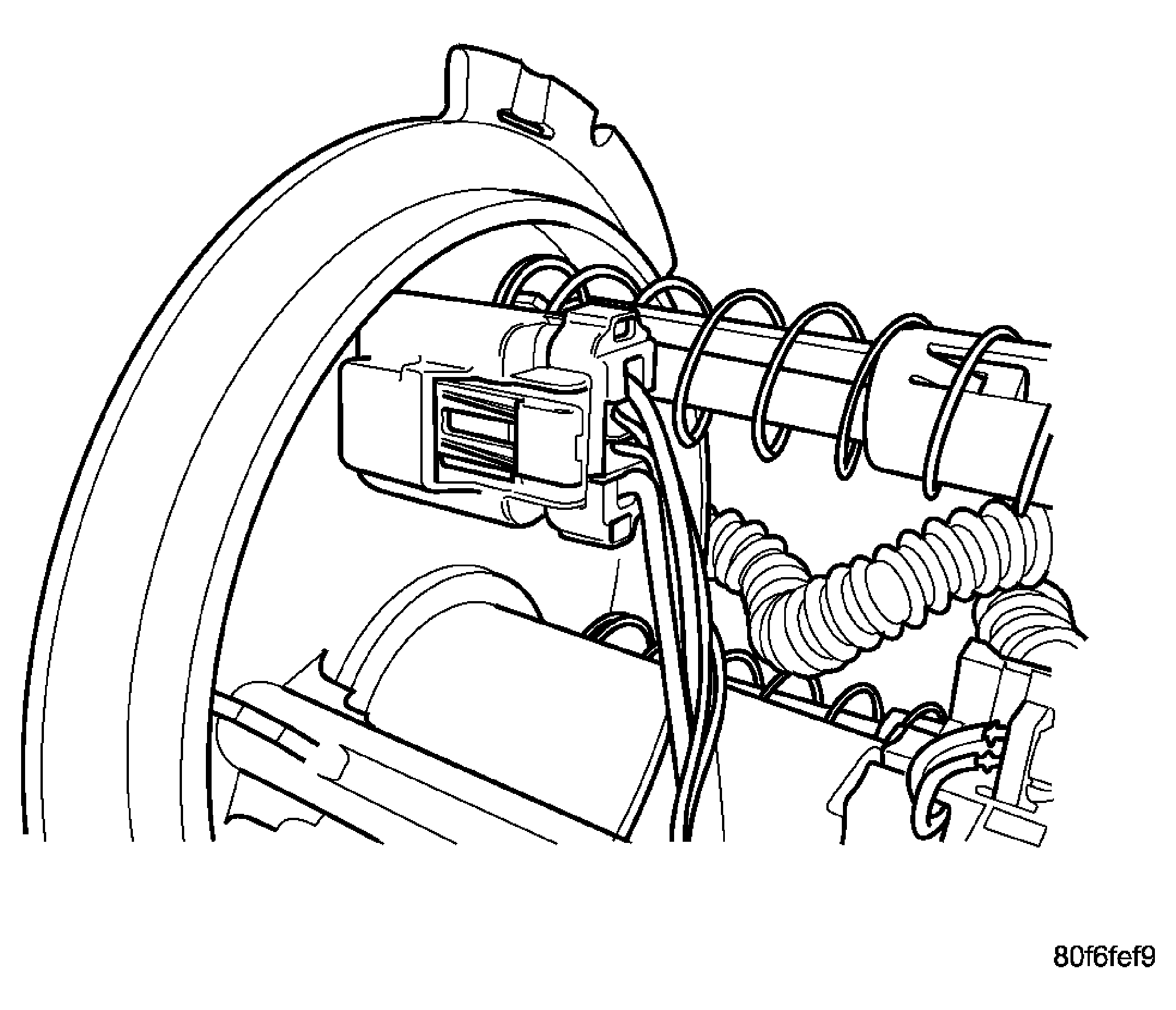

   Fig 1: ELECTRICAL CONNECTOR

   Courtesy of DAIMLERCHRYSLER CORP.

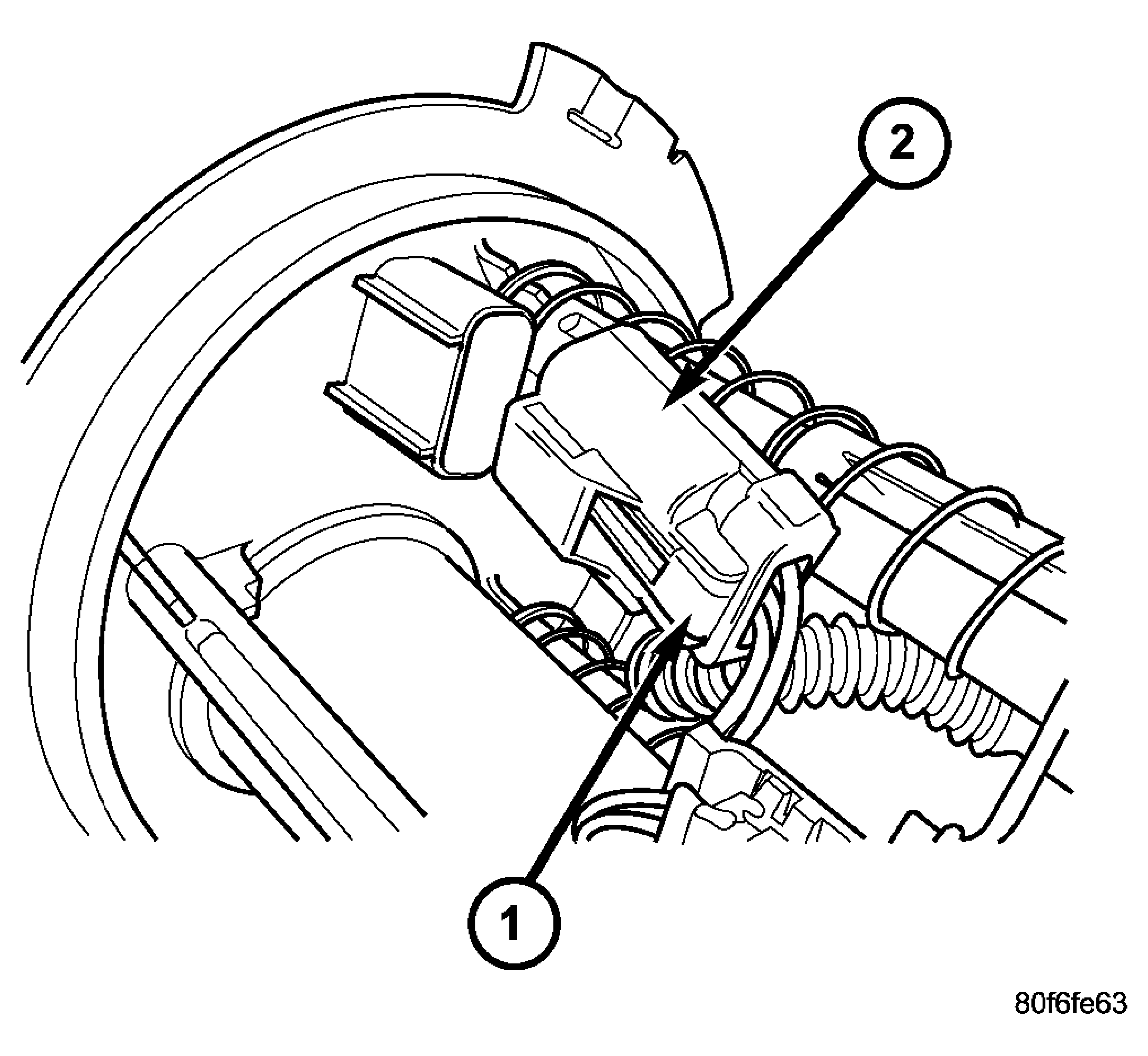

   Fig 2: Fuel Pump/Level Sensor Electrical Connector

   Courtesy of DAIMLERCHRYSLER CORP.

   1 - RETAINING TAB

   2 - ELECTRICAL CONNECTOR

2. Pull off locking wedge. See Fig 3.

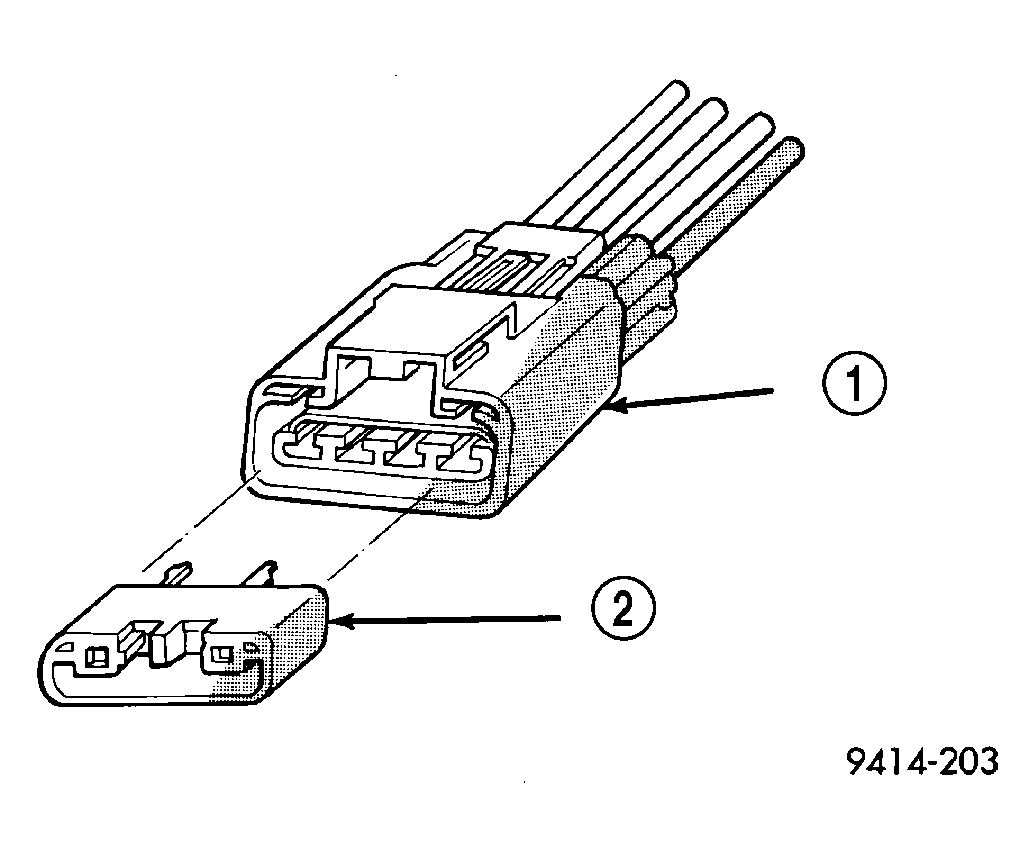

   Fig 3: Wire Terminal Locking Wedge

   Courtesy of DAIMLERCHRYSLER CORP.

   1 - ELECTRICAL CONNECTOR

   2 - LOCKING WEDGE

3. Using a small screwdriver lift locking finger away from terminal and push level sensor and ground terminals out of connector. See Fig 4.

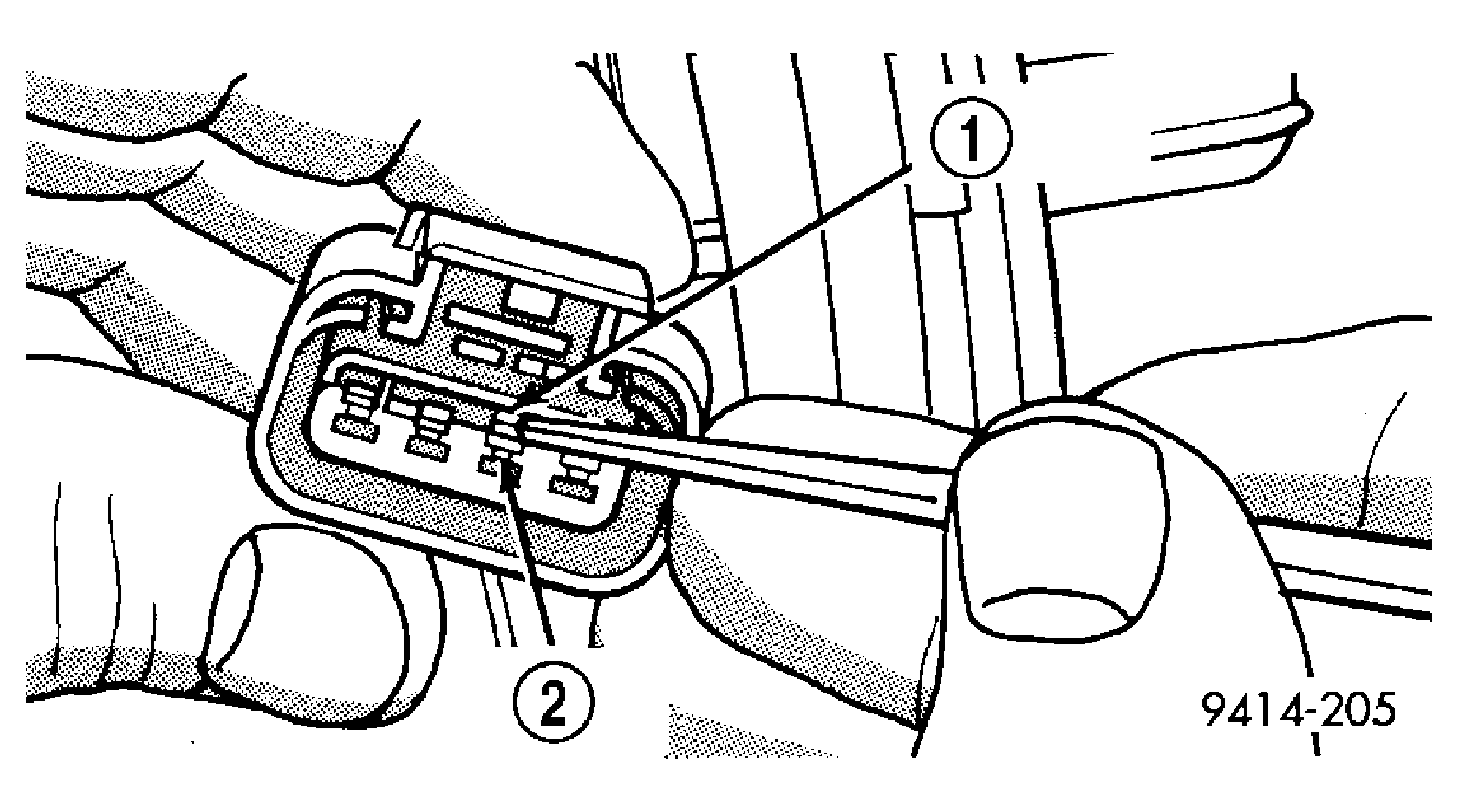

   Fig 4: Removing Wires From Connector

   Courtesy of DAIMLERCHRYSLER CORP.

   1 - LOCKING FINGER

   2 - WIRE TERMINAL

4. Use screwdriver to move locking tab on level sensor and move level sensor down channel to remove. See Fig 5 and Fig 6.

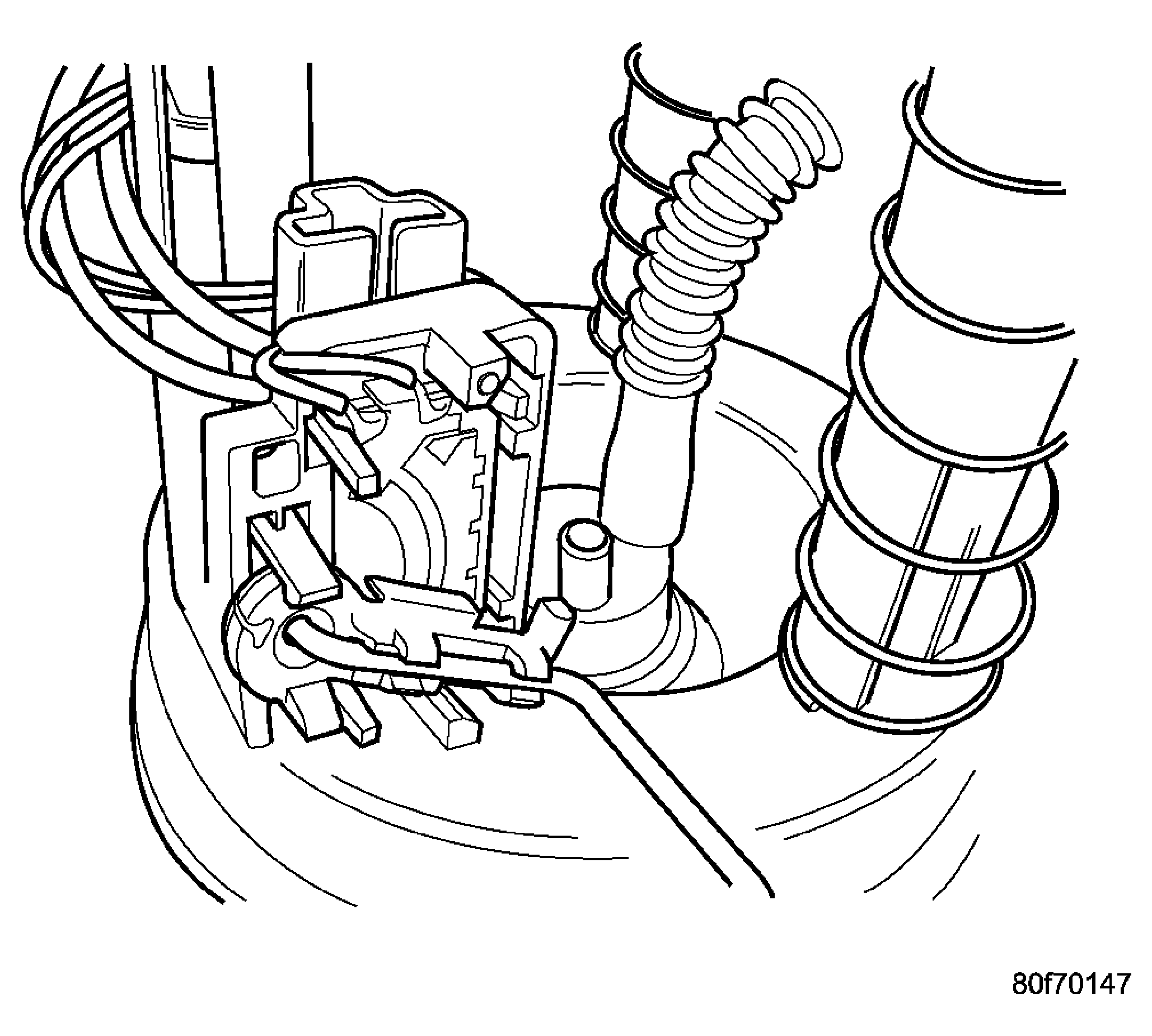

   Fig 5: LEVEL SENSOR

   Courtesy of DAIMLERCHRYSLER CORP.

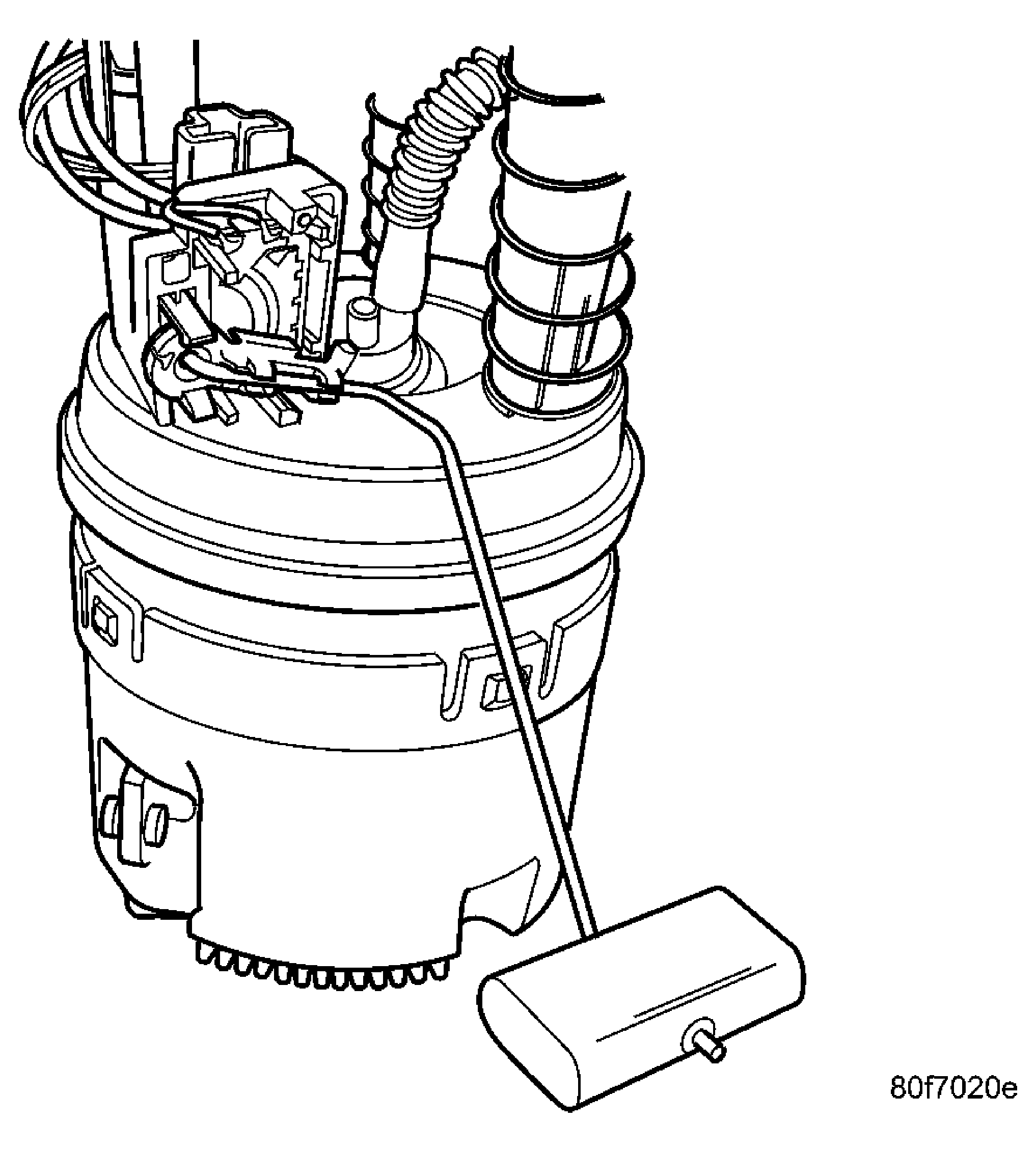

   Fig 6: LEVEL SENSOR ARM

   Courtesy of DAIMLERCHRYSLER CORP.
5. Slide level sensor out of installation channel in module.
