Cooling System Hoses
WARNING: This page is about a different car, the 2006 Dodge Viper. However, it is still accessible from the selected car via links, so may be relevant.

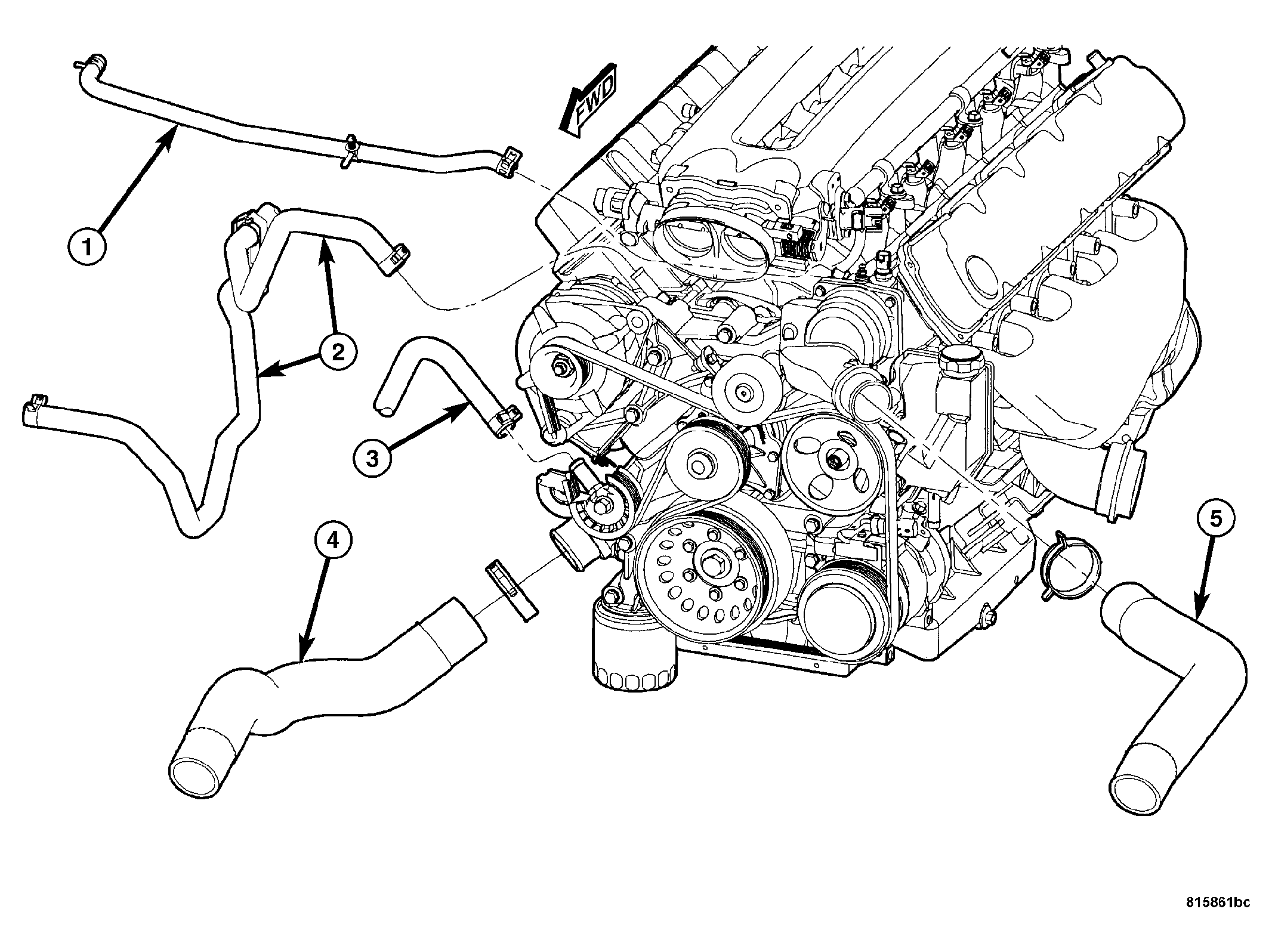

If cooling system hose replacement is necessary, replace with the original Mopar® equipment hoses. See Fig 1.
| 1 - COOLANT BOTTLE INLET HOSE |
| 2 - HEATER SUPPLY AND RETURN HOSE ASSY. |
| 3 - OIL COOLER RETURN HOSE |
| 4 - LOWER RADIATOR HOSE |
| 5 - UPPER RADIATOR HOSE |
