Engine Coolant Temperature Sensor: Installation
WARNING: This page is about a different car, the 2006 Dodge Viper. However, it is still accessible from the selected car via links, so may be relevant.

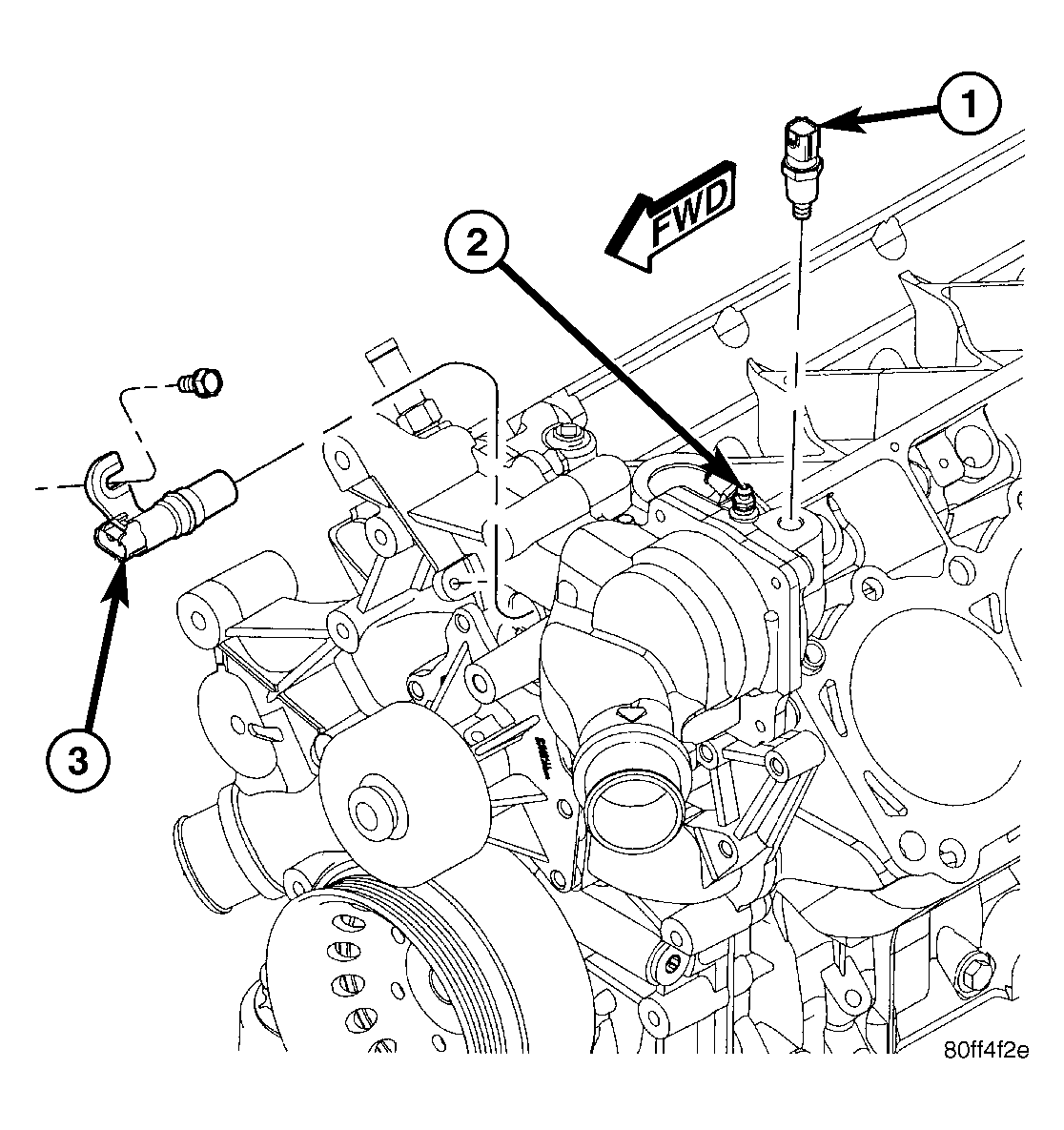

- Install sensor. See Figure. Tighten to 27 N.m (20 ft. lbs.) torque.
- Connect electrical connector to sensor.
- Fill cooling system
