Map Sensor: Description

WARNING: This page is about a different car, the 2006 Dodge Viper. However, it is still accessible from the selected car via links, so may be relevant.

The MAP sensor mounts to the drivers side intake manifold plenum. See Fig 1.

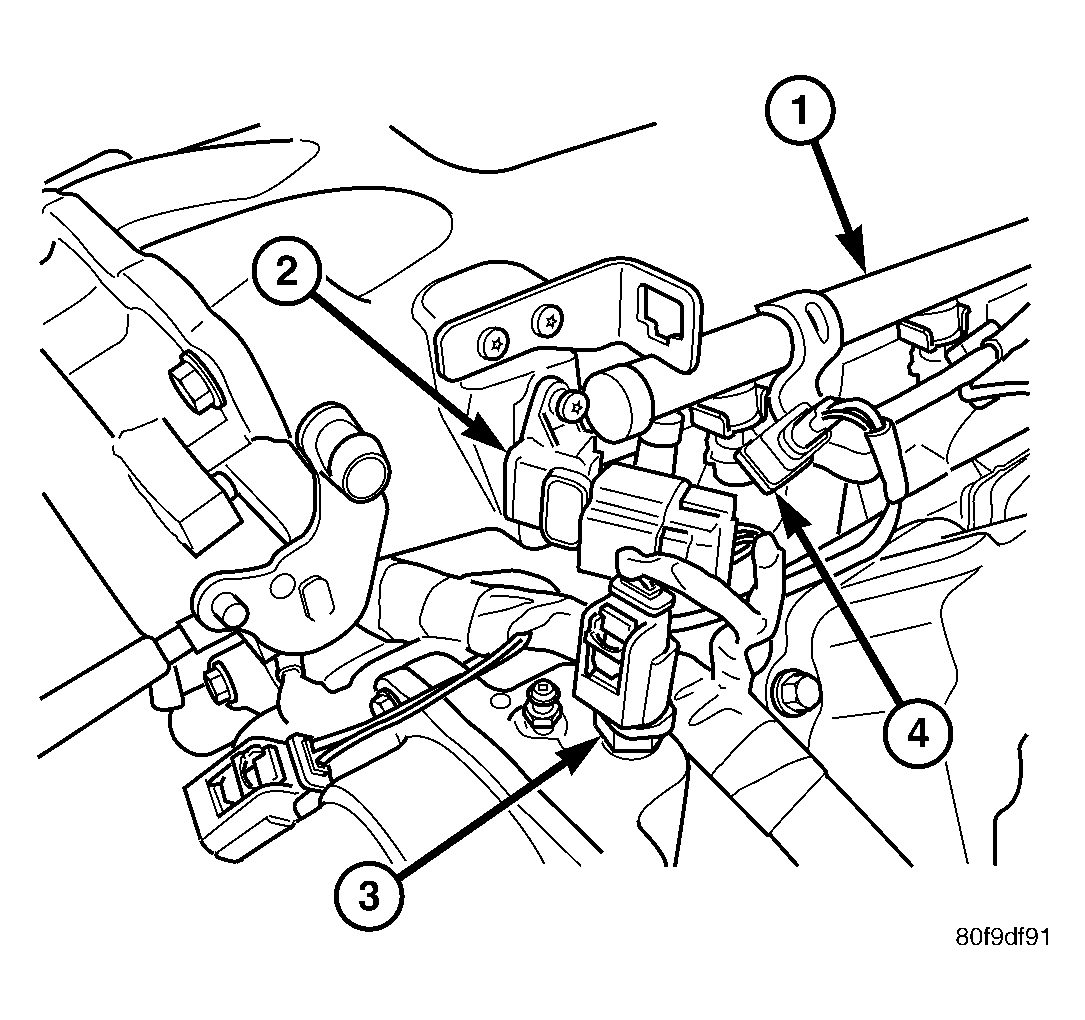

Fig 1: Manifold Absolute Pressure Sensor & Coolant Temperature Sensor

Courtesy of DAIMLERCHRYSLER CORP.

1 - Fuel Rail

2 - MAP Sensor

3 - Coolant Temperature Sensor

4 - Fuel Injector
