A/C Heater Control: Removal
WARNING: This page is about a different car, the 2006 Dodge Viper. However, it is still accessible from the selected car via links, so may be relevant.
- Remove instrument panel center bezel and place it on a workbench (Refer to BODY/INSTRUMENT PANEL/INSTRUMENT PANEL CENTER BEZEL - REMOVAL) .

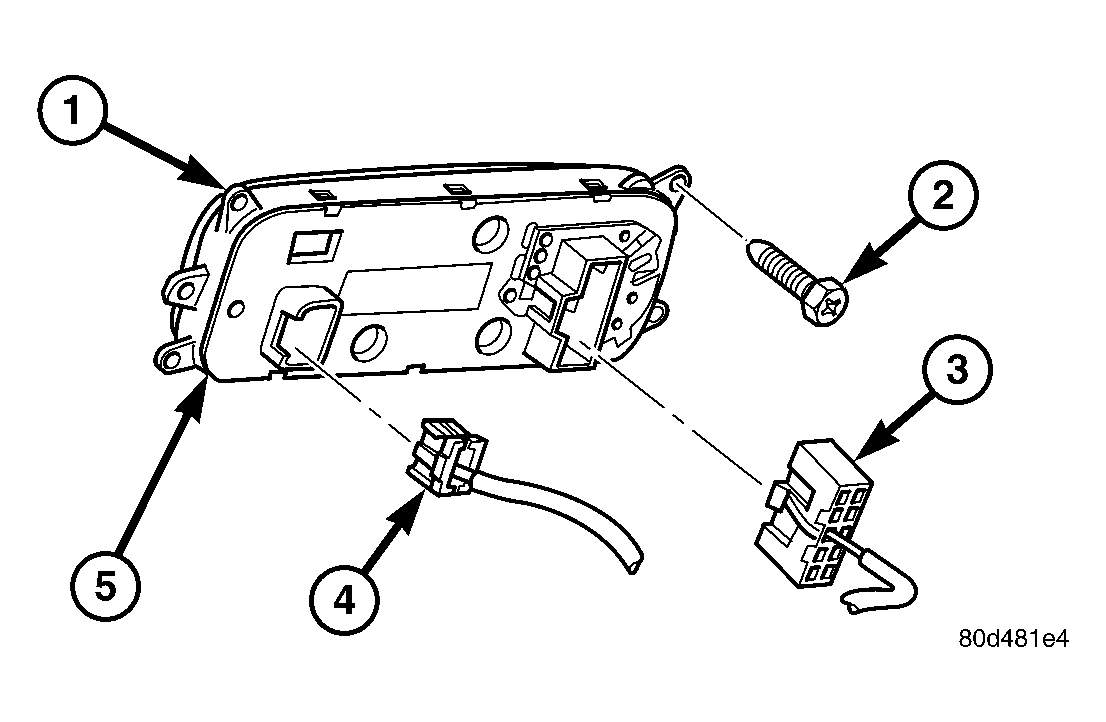

- Remove the screws that secure the A/C-heater control to the instrument panel center bezel. See Fig 1.
- Remove the A/C-heater control from the instrument panel center bezel.
| 1 - MOUNTING TAB (4) |
| 2 - SCREW (4) |
| 3 - A/C-HEATER CONTROL ELECTRICAL CONNECTOR |
| 4 - HEATED SIDEVIEW MIRROR ELECTRICAL CONNECTOR |
| 5 - A/C-HEATER CONTROL |
