Section 130 (Charging System): Generator: Removal

WARNING: This page is about a different car, the 2006 Dodge Viper. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove air cleaner assembly, refer to the AIR CLEANER HOUSING for more information.
Remove the accessory drive belt, refer to COOLING for more information. See Fig 1.

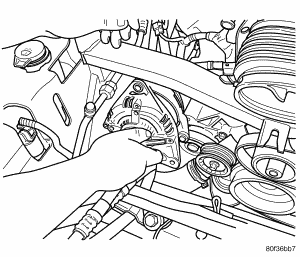

Fig 1: GENERATOR LOCATION
Courtesy of DAIMLERCHRYSLER CORP.
Disconnect the field connector. See Fig 2.

Fig 2: FIELD CONNECTOR
Courtesy of DAIMLERCHRYSLER CORP.
Disconnect the battery positive cable from the generator first disconnect the B+ cap on the wiring harness side. See Fig 3.

Fig 3: BATTERY POSITIVE CABLE
Courtesy of DAIMLERCHRYSLER CORP.
Remove the upper mounting bolt. See Fig 4.
Remove the lower mounting bolt and nut. See Fig 4.

Fig 4: MOUNTING BOLTS
Courtesy of DAIMLERCHRYSLER CORP.

1 - Upper Mounting Bolt

2 - Lower Mounting Bolt
Remove generator. See Fig 5.

Fig 5: GENERATOR REMOVAL/INSTALLATION

Courtesy of DAIMLERCHRYSLER CORP.
