Engine Control Module: Removal

WARNING: This page is about a different car, the 2006 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Disconnect the ECM harness connectors. See Fig 1.
Grasp ECM and pull down firmly to release ECM from the retaining bracket tensioning springs. See Fig 1.

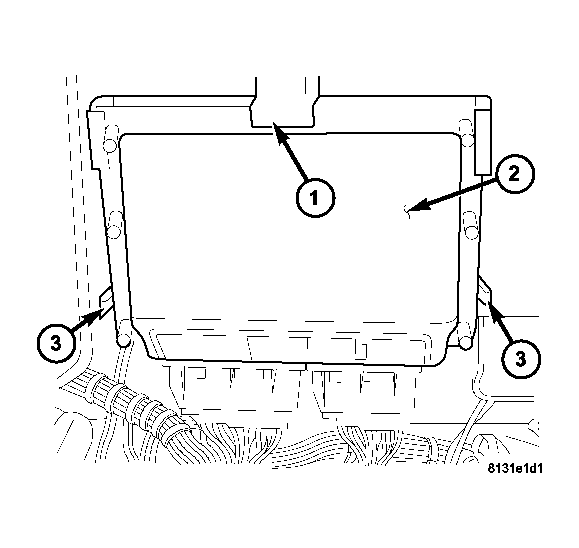

Fig 1: ECM

Courtesy of DAIMLERCHRYSLER CORP.

1 - BRACKET

2 - ECM

3 - BRACKET TENSIONING SPRINGS
