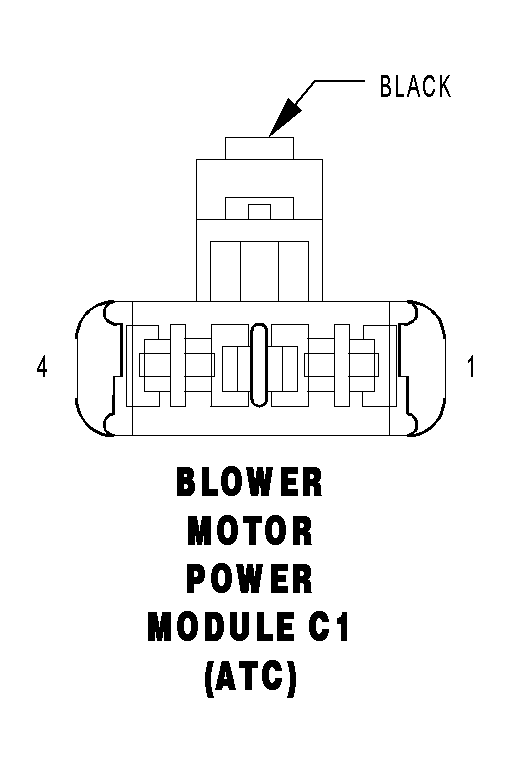

Blower Motor Power Module (Automatic Temperature Control) Connector End View (C1)
BLOWER MOTOR POWER MODULE C1 (ATC) - BLACK 4 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
- |
- |
| 2 |
Z118 12BK |
GROUND |
| 3 |
C56 20RD/LG |
BLOWER MOTOR CONTROL |
| 4 |
C1 12DG |
FUSED IGNITION SWITCH OUTPUT (RUN) |
