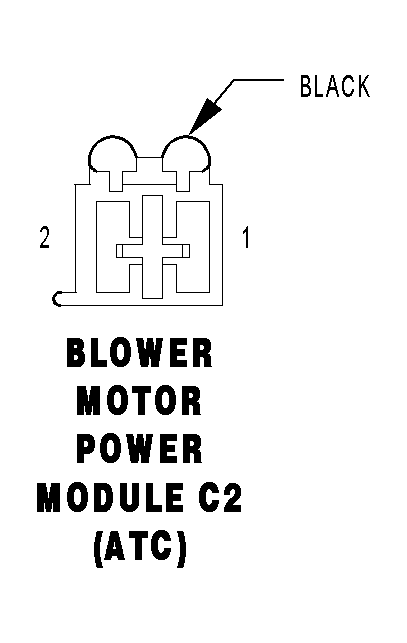

Blower Motor Power Module (Automatic Temperature Control) Connector End View (C2)

BLOWER MOTOR POWER MODULE C2 (ATC) - BLACK 2 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	C71 12DB	BLOWER MOTOR GROUND
2	C72 12GY	BLOWER MOTOR SUPPLY
