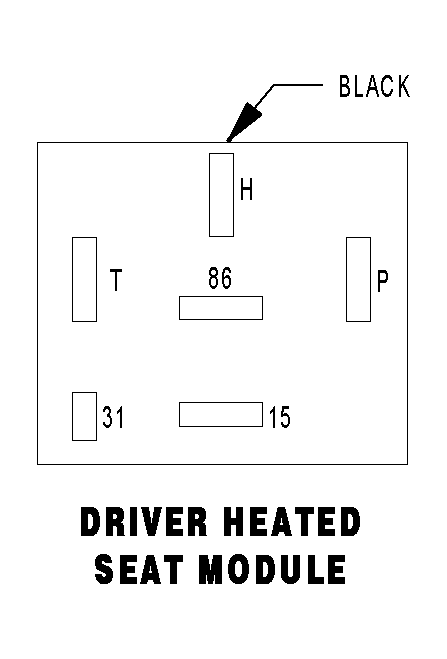

Driver Heated Seat Module Connector End View
DRIVER HEATED SEAT MODULE - BLACK 6 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 15 |
P86 16PK/BK |
HEATED SEAT RELAY OUTPUT |
| 31 |
Z121 16BK |
GROUND |
| 86 |
F99 20RD/WT |
DRIVER HEATED SEAT FEED |
| H |
- |
- |
| P |
P7 20LB/BK |
DRIVER HEATED SEAT SWITCH OUTPUT |
| T |
- |
- |
