Fuel Pump Module Connector End View

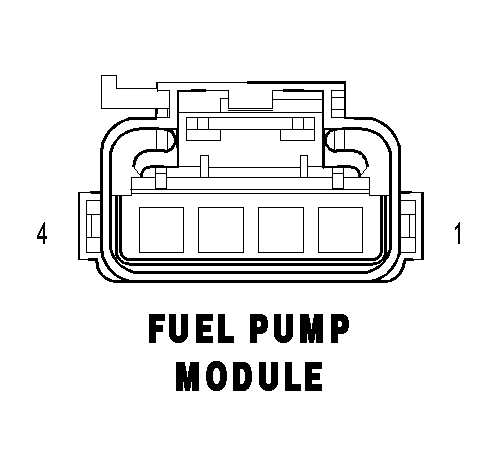

FUEL PUMP MODULE - 4 WAY

GCJR680155Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 Z211 12BK GROUND
2 Z211 18BK GROUND
3 G4 18DB FUEL LEVEL SENSOR SIGNAL
4 A141 14RD FUEL PUMP RELAY OUTPUT
