Input Speed Sensor Connector End View

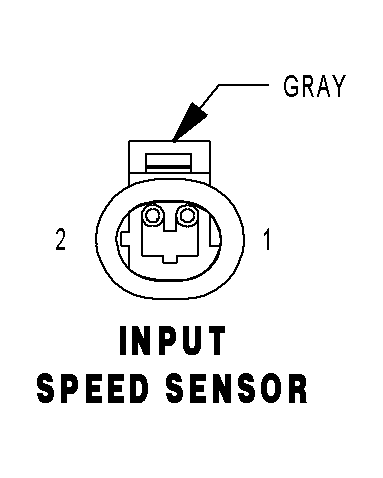

INPUT SPEED SENSOR - GRAY 2 WAY

GCJR680169Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 T13 18DB/BK SPEED SENSOR GROUND
2 T52 18RD/BK INPUT SPEED SENSOR SIGNAL
