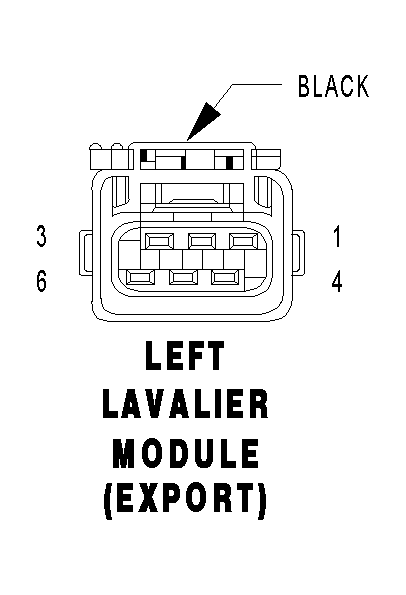

Left Lavalier Module (Export) Connector End View

LEFT LAVALIER MODULE (EXPORT) - BLACK 6 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	Z163 16BK	GROUND
2	L101 18RD	HEADLAMP ADJUST SIGNAL
3	L33 20LG/BR	FUSED LEFT HIGH BEAM OUTPUT
4	L61 16LG	LEFT TURN SIGNAL
5	L7 20BK/BR	HEADLAMP SWITCH OUTPUT
6	L43 18VT	FUSED LEFT LOW BEAM OUTPUT
