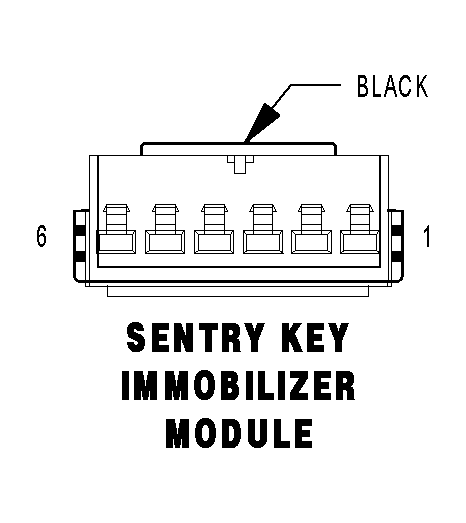

Sentry Key Immobilizer Module Connector End View
SENTRY KEY IMMOBILIZER MODULE - BLACK 6 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
- |
- |
| 2 |
D25 20VT/PK |
PCI BUS (SKIM) |
| 3 |
- |
- |
| 4 |
F12 20DB/WT |
FUSED IGNITION SWITCH OUTPUT (RUN-START) |
| 5 |
Z110 20BK |
GROUND |
| 6 |
A51 20RD/WT |
FUSED B(+) |
