Sunroof Control Module (Sedan) Connector End View

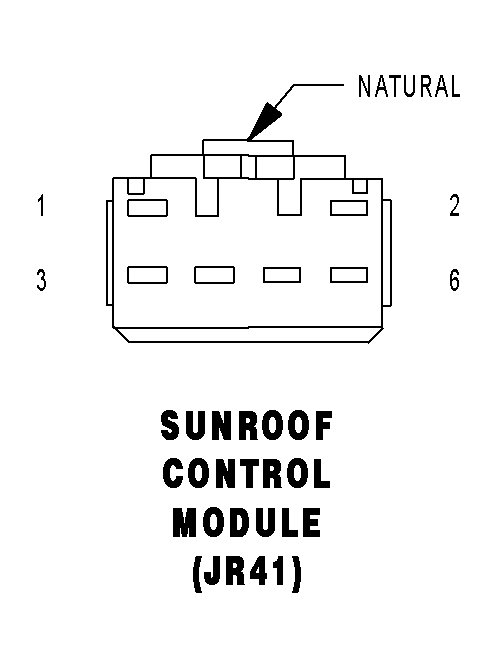

SUNROOF CONTROL MODULE (JR41) - NATURAL 6 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
Z312 18BK |
GROUND |
| 2 |
F21 18TN |
FUSED IGNITION SWITCH OUTPUT (RUN) |
| 3 |
Q43 20VT |
SUNROOF VENT |
| 4 |
Q44 20BR |
SUNROOF SWITCH GROUND |
| 5 |
Q42 20LB |
SUNROOF CLOSE |
| 6 |
Q41 20WT |
SUNROOF OPEN |
